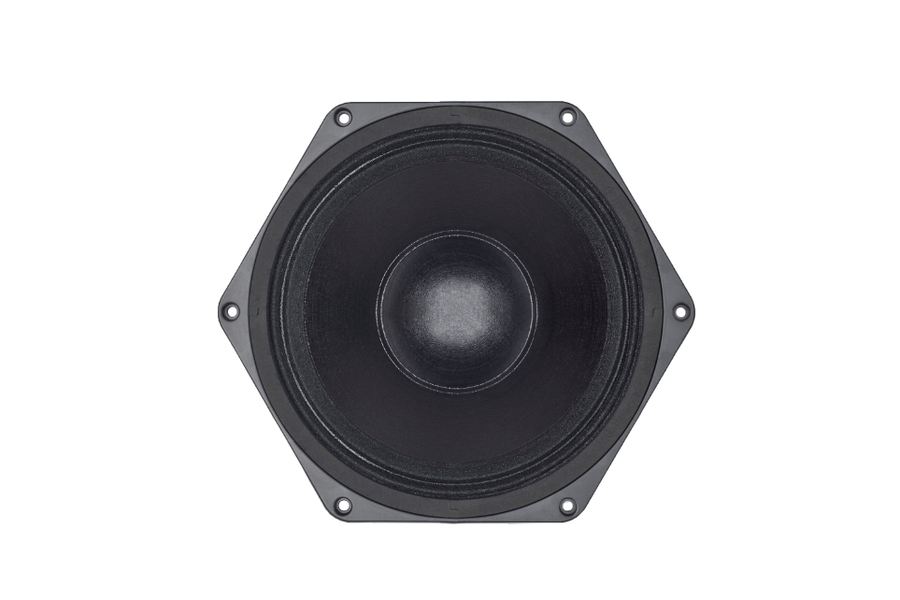

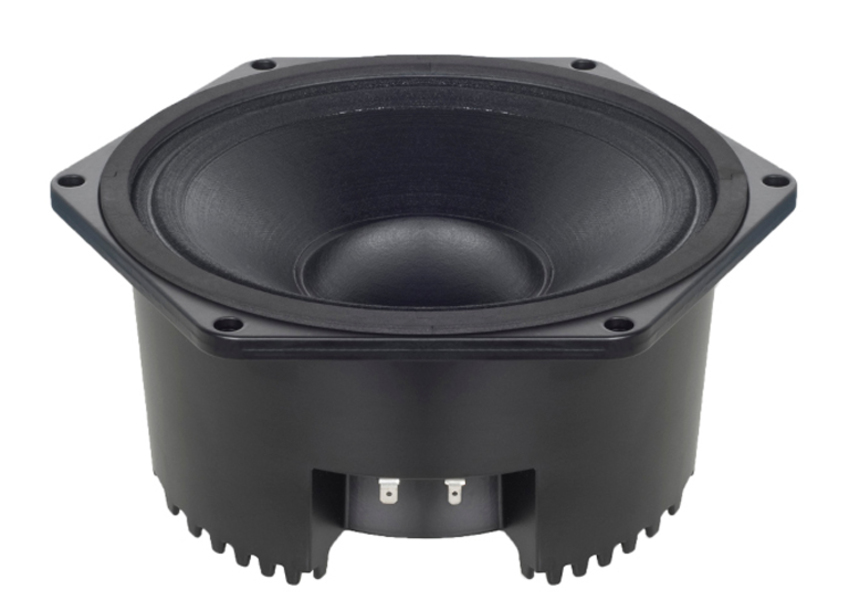

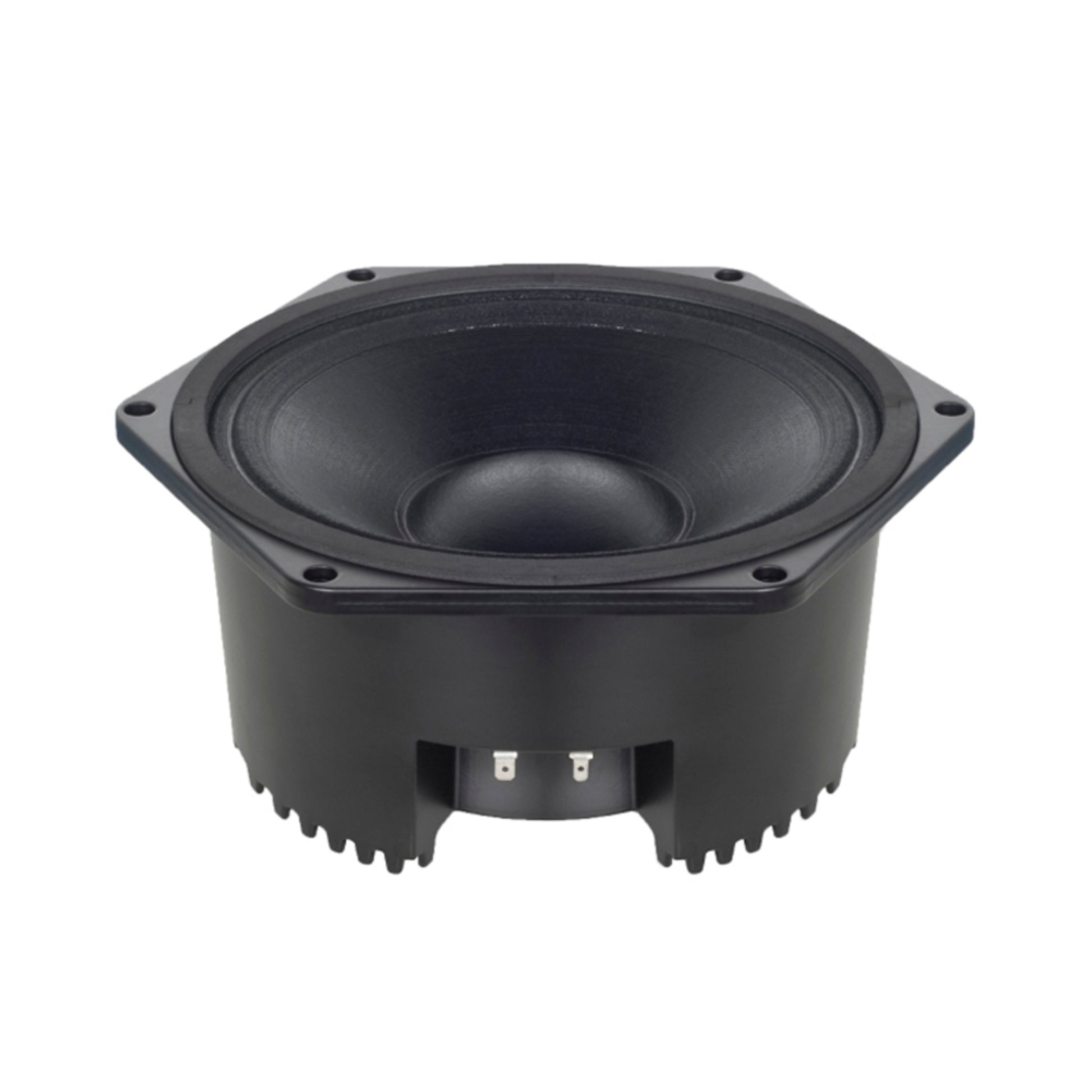

B&C 10NSM76 10 Inch Low Frequency Driver - 400W RMS, 8 Ohm, Spade Terminals

B&C 10NSM76 10 Inch Low Frequency Driver - 400W RMS, 8 Ohm, Spade Terminals for simplified cabinet assembly and efficient thermal transfer to the air, the NSM series of sealed back midranges feature a cast aluminum sealed chassis, high strength neodymium motor, and large internal volume for good low frequency performance. Large voice coils provide power handling, while careful selection of suspension and cone components results in exceptional sensitivity. These dedicated narrow-bandwidth midranges offer the lowest distortion at given output of any midrange available.

More Information

The Neodymium LF Speaker Drivers has been designed for nightclubs, stadiums and concert halls around the world, our speakers are chosen based on their reliability, consistency and most of all for their outstanding sound quality and performance. The LF Speaker Drivers offers increased sensitivity, power handling capacity and increased excursion capabilities, lower distortion levels.

  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs
  • Power calculated on rated nominal impedance, loudspeaker in free air
  • Power on continuous program is defined as 3dB greater than the nominal rating
  • Thiele-small parameters are measured after a high level 20Hz sine wave preconditioning test

Technical Specification

  •  Loudspeaker Mount Type - Ceiling
  •  Warranty - Yes
  •  Spec Sheet available - Yes
  •  Impedance: 8 ohm
  •  Sensitivity: 100 dB
  •  Shipping Weight: 10.25 lbs
  •  Power Handling: 800 Watt
  •  Product Weight: 8.27 lbs
  •  Warranty (Length/Type): 3 Years
  •  Minimum Frequency Response (Bandwidth): 235 Hz
  •  Maximum Frequency Response (Bandwidth): 3.50 kHz
  •  Speaker Diameter (Driver): 10 in
  •  Maximum Frequency Response (Bandwidth): 3500 Hz
  •  Minimum Frequency Response (Bandwidth): 0.24 kHz
