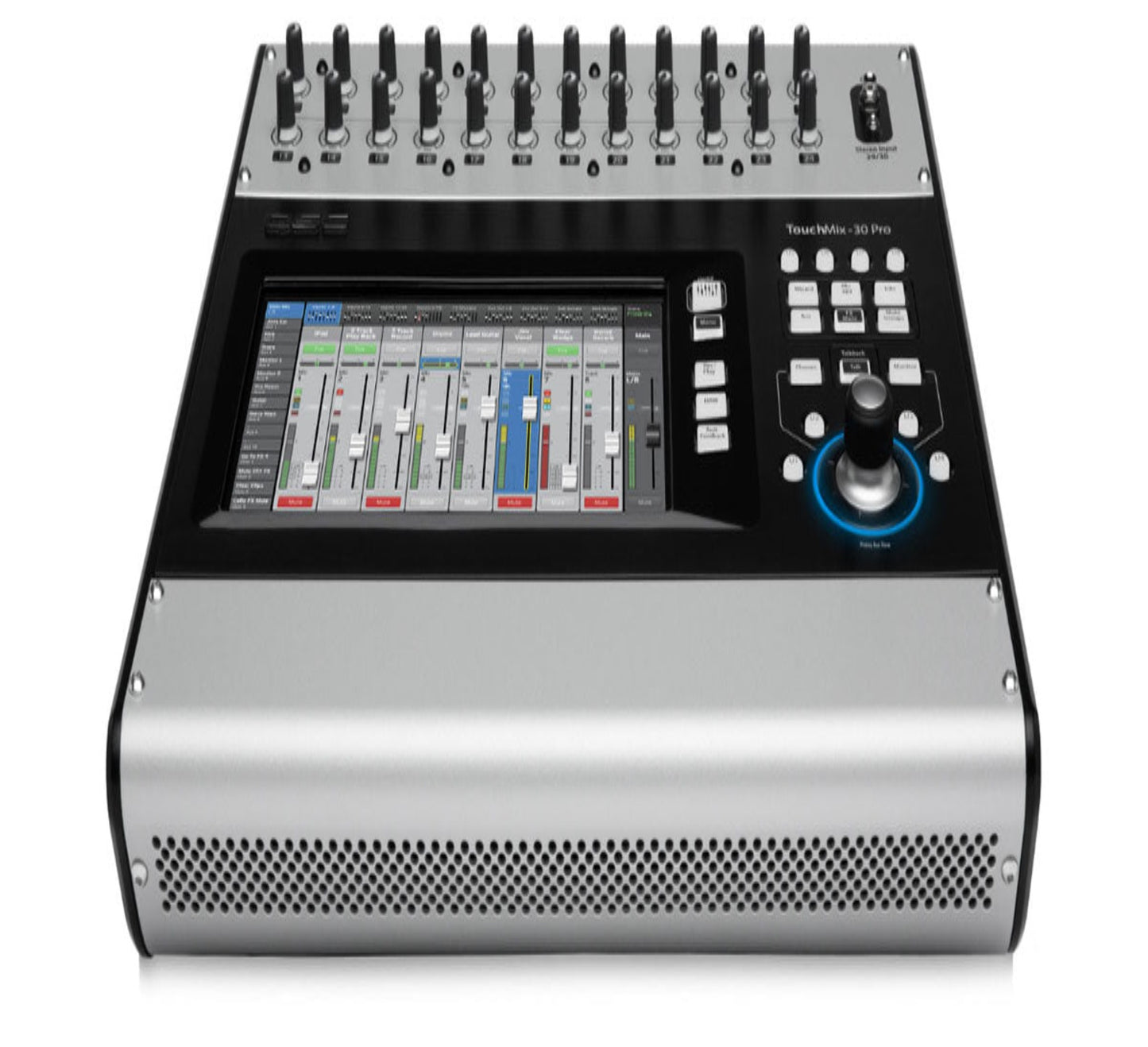

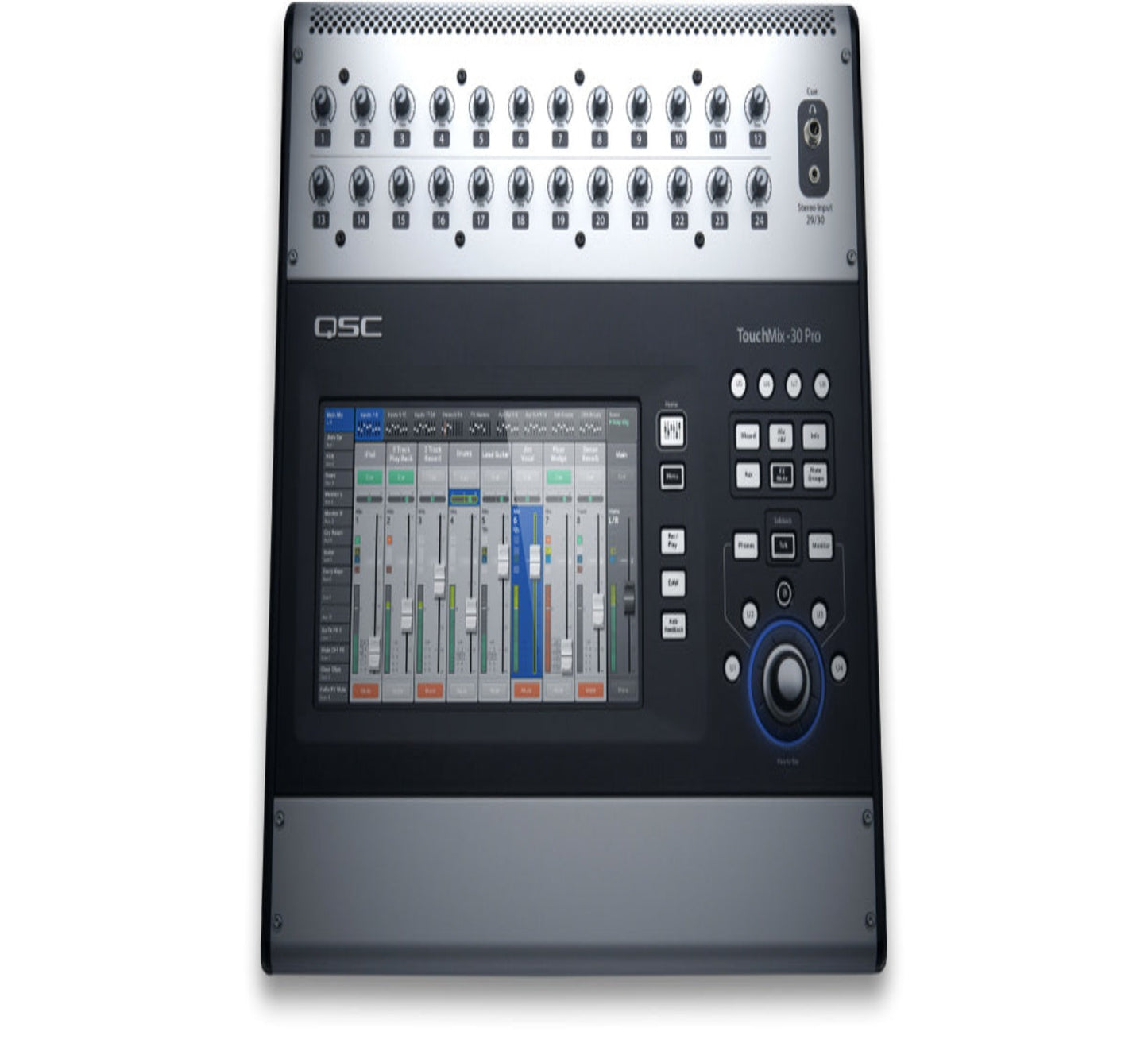

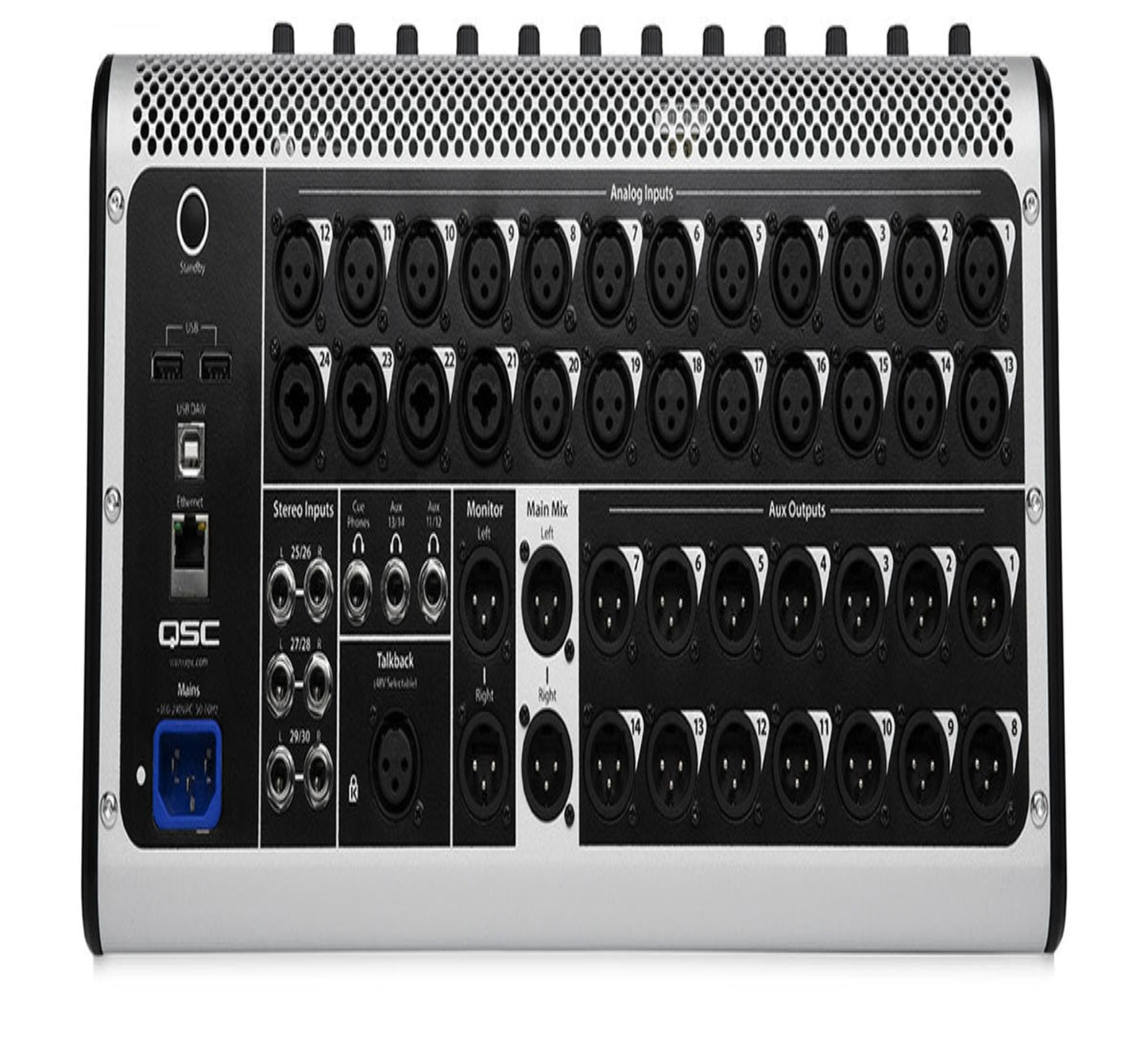

QSC TouchMix 30

QSC TouchMix 30

TouchMix® is quite simply the most powerful, compact mixer ever created. It offers the features, capabilities and sound quality of the world's most esteemed large format consoles in a highly compact and portable package that’s small enough to be carry-on luggage. Perfect for musicians, larger bands, AV production professionals and performance venues, the TouchMix-30 Pro goes "Beyond Mixing" by offering Wizards, Presets and other beneficial tools that help seasoned audio professionals and novices alike get great results quickly and easily.

Its 32 mixing channels (24 Mic/Line, 6 Line, Stereo USB) and 16 outputs offer tremendous signal management flexibility for a wide range of applications. Advanced features such as class-A microphone preamps, Anti-Feedback and Room Tuning Wizards, two real-time analyzers (RTA), patch matrix, 32-channel direct-to-external-drive recording and DAW interface with MacOS® and Windows® computers make it equally competent as both a professional live sound and a recording tool.

The touch-and-turn interface of TouchMix allows for tactile control over fader and mixer parameters while also providing a hardware connection to mixer functions. Mixer functions and displays are duplicated via iOS or Android devices over Wi-Fi, providing both portable, wireless connectivity as well as additional control surfaces of mixer functionality.

With firmware version 2.0, TouchMix-30 Pro now supports 3 custom fader banks of 8 channels each, allowing versatile, personalized channel display for the most demanding users and applications. This latest firmware version also gives the TouchMix-30 Pro the capability to interface with select third party control surfaces with motorized faders using Mackie Control Protocol. Two modes of operation exist: TouchMix-30 Pro mixer wired to the control surface, or iOS tablet paired with the control surface and connected to the TouchMix-30 Pro mixer via Wi-Fi. The complementary new channel strips display presents controls and indicators for the selected fader group.

More Information

QSC TouchMix-30 Pro Features:

  • Large multi-touch screen offers better hands-on control and more on-screen info for easier navigation
  • Anti-feedback and Room Tuning Wizards speed up your workflow by simplifying repetitive and complex equalization tasks
  • Built-in Real Time Analysis Tools identify sonic trouble fast with 2 individual Real Time Analyzers
  • Touch-and-route Patch Matrix allows you to assign inputs to channels fast and "mult" inputs to mixer channels
  • Simplify your mixing workflow with 8 subgroups, each with its own 6-band parametric EQ, variable highpass and lowpass filters, and limiter
  • Record 32 channels direct to an external hard drive, no computer required
  • 32 x 32 Mac (Core Audio) DAW computer interface
  • Outstanding sound quality from 24 Class A mic preamps
  • All outputs are equipped with 1/3-octave graphic EQ, 6-band parametric EQ, limiter, delay, and 12-band notch filter
  • 14 mono mix outputs can also be configured as stereo pairs for stereo monitoring
  • 120 presets for instruments, microphones, and other audio sources make show setup fast and easy, especially for novice mixers
  • Connect wirelessly to iOS or Android devices (requires user-supplied Wi-Fi adapter/router)

Technical Specification

Tech Specs

  • Type:Digital
  • Channels:32
  • Inputs - Mic Preamps:24 (20 x XLR, 4 x XLR-1/4" combo)
  • Phantom Power:24 channels, Talkback
  • Inputs - Line:20 x XLR, 4 x XLR-1/4" combo, 6 x 1/4" TRS (stereo), 1 x 1/8" (stereo in)
  • Inputs - Other:Stereo USB / MP3 playback
  • Outputs - Main:2 x XLR (main mix), 2 x XLR (monitor out)
  • Outputs - Other:14 x XLR (mono mixes)
  • Send/Return I/O:2 x 1/4" TRS (Aux 11/12 monitor, Aux 13/14 monitor)
  • Talkback:1 x XLR
  • Data I/O:Ethernet RJ-45 (connect to Wi-Fi router)
  • Headphones:2 x 1/4"
  • USB:2 x Type A, 1 x Type B
  • Computer Connectivity:USB (32 x 32), Ethernet (connect router for TouchMix Control App - iOS/Android)
  • Faders:10" Multi-touch screen
  • EQ Bands:4-band Parametric EQ, Shelf EQ, 1/3 octave graphic EQ, Filters, 6-band parametric EQ (sub groups, output channel)
  • Effects:Reverb, Echo, Delay, Chorus, Pitch Shift and more (6 simultaneous)
  • Signal Processing:Gate, Compressor, Pitch Corrector
  • Features:Anti-feedback, Room tuning, 2 x RTA, 99 user scenes/presets
  • DAW Control:Yes
  • Screen:10" Multi-touch Screen
  • Rackmountable:Yes (kit sold separately)
  • Height:7.5"
  • Depth:18.1"
  • Width:16.9"
  • Weight:17.5 lbs.
