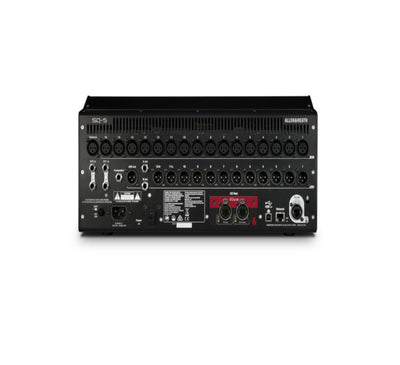

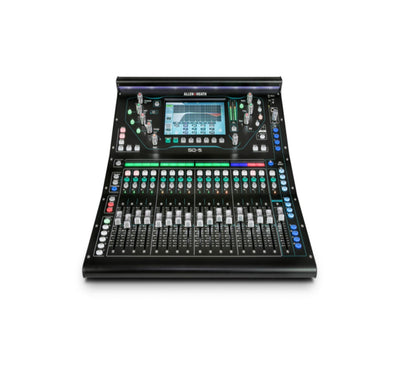

ALLEN AND HEATH SQ-5
ALLEN AND HEATH SQ-5
ALLEN AND HEATH SQ-5
ALLEN AND HEATH SQ-5

ALLEN AND HEATH SQ-5

Powered by Allen & Heath’s revolutionary XCVI 96kHz FPGA engine, SQ-5 is built for professionals in demanding live sound, recording and streaming applications. Delivering class-leading high-resolution audio with an ultra-low <0.7ms latency, the SQ-5 gives you unrivalled power and audio fidelity.
Enquire Now

Product details

More Information
Allen & Heath SQ-5 Digital Mixer Features:
  • 48-input digital mixer with 96kHz FPGA processing
  • Best-in-class audio quality, with less than 0.7ms latency
  • 17 faders for hands-on mixing, with 6 fader layers
  • Create up to 12 stereo mixes in addition to the main LR mix
  • SQ MixPad app (iOS/Android/macOS/Windows) for wireless mixing and offline show prep
  • SQ4You personal mixing app (iOS/Android) allows up to 8 performers to craft their own monitor mixes
  • 3 stereo matrices
  • 8 stereo FX engines with dedicated effects returns
  • 7-inch capacitive touchscreen for navigation
  • SLink port for remote audio and I/O expansion
  • 64-channel I/O port for network audio
  • Built-in 32 x 32 USB audio interface for multitrack recording
  • SQ-Drive allows for direct recording to a USB drive
  • Dedicated physical controls, plus 8 assignable SoftKeys
  • Automatic Mic Mixing makes it easy to manage large multi-mic setups
  • AES digital output
  • Rackmountable
Technical Specifications
Tech Specs
  • Type:Digital
  • Channels:48
  • Inputs - Mic Preamps:16 x XLR (mic/line)
  • Phantom Power:16 channels, Talkback
  • Inputs - Other:2 x 1/4" (ST1), 2 x 1/4" (ST2), 1 x 1/8" (ST3)
  • Outputs - Main:2 x 1/4" (A out, B out), 2 x XLR (L,R)
  • Outputs - Other:12 x XLR (stereo mixes, L/R)
  • Outputs - Digital:1 x XLR (AES)
  • Busses/Groups:36 bus
  • Inserts:Internal Pre EQ/Compressor
  • Talkback:1 x XLR
  • MIDI I/O:USB (control)
  • Data I/O:1 x EtherCon (dSnake, DX mode, gigaACE), 1 x Ethernet RJ-45 (LAN TCP/IP)
  • Headphones:1 x 1/4"
  • USB:1 x Type B, 1 x Type A
  • Computer Connectivity:USB (32 x 32), Ethernet
  • Remote:1 x 1/4" (footswitch)
  • I/O Expansion Slots:1 x Option card port (Dante, Waves)
  • Faders:17 x 100mm motorized
  • A/D Resolution:24-bit/96kHz
  • EQ Bands:Parametric EQ, 28-band Graphic
  • Effects:Delay, Reverb, Chorus, Flanger, Phaser (8 x RackFX engine)
  • Signal Processing:Dynamics
  • DAW Control:MIDI DAW control via USB
  • Screen:7" color touch screen
  • Storage:USB Type A (16 x 16)
  • Software:Wireless Remote Mixing app iPad/Android (network router not included)
  • Rackmountable:Yes (kit sold separately)
  • Power Source:AC Adapter
  • Height:7.8"
  • Depth:20.3"
  • Width:17.3"
  • Weight:23.1 lbs.
