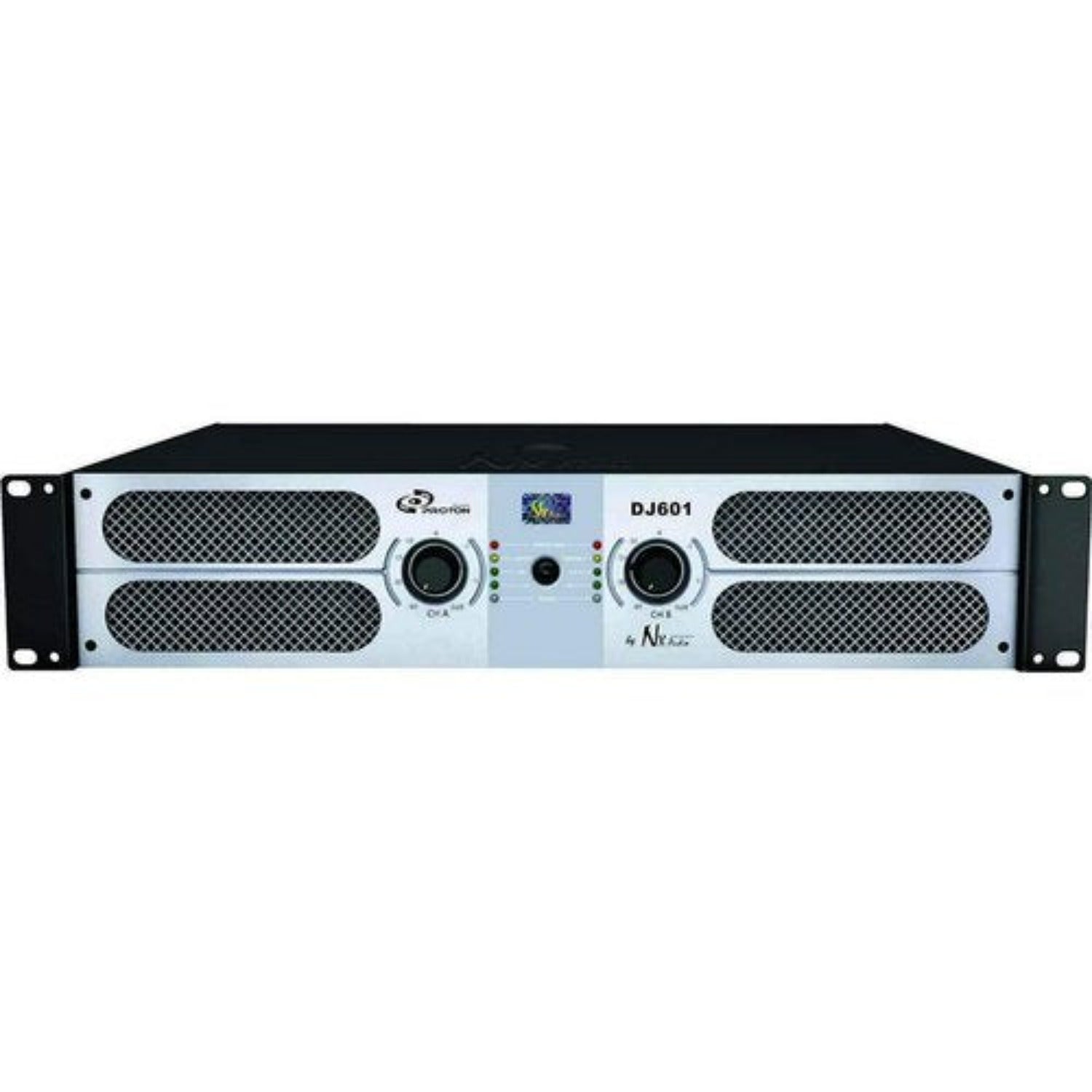

NX AUDIO DJ 601

NX AUDIO DJ 601

The Proton DJ Series Amplifiers are the equivalent of an iron fist in a velvet glove. The main attraction of the DJ Series is its 98% reliability and the excellent tonal quality, no mean feat considering the compact size and superb power to weight ratio.All four models are equipped with independent sweepable high and low pass filters on each channel so you can optimize output for subwoofer or full range systems to provide peak audio quality and performance from any speaker system you may be using.

More Information

In an 4-ohm stereo application RMS power output per channel on the DJ801 is 800 watts, the DJ601 is 600 watts, DJ301 is 300 watts, DJ151 is 150 watts. This wide selection lets you choose the amplifier that best matches the power handling capabilities of your speaker system. Very good savings are realized with an unique added feature -the built-in crossover to make the amplifier a subwoofer amplifier or a midhighs amplifier, besides being a full range device of course, thereby eliminating the need for external crossovers and simultaneously ensuring, easy, no complication, safe operation even if a novice is handling the setup). All these features coupled with the extremely competent pricing, makes the DJ Series the natural choice for the discerning audio professionals.

Technical Specification

- Short Circuit protect, DC, Thermal,

- Overload, HF & Back-EMF protection, Peak Limiter & Soft Start

- Class AB CircuitZero Noise & Peak, Level & Signal Indicators

- Input Sensitivity Selector & limiter

- Bridge, Stereo & Parallel connections

- Two individual cooling fans

- 160 Hz Hi Pass & Low Pass filters

- Hi-Pass, Low-Pass & Bypass Crossover selection

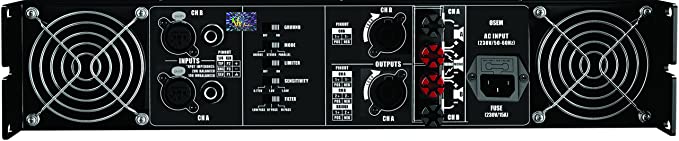

- XLR, 1/4” Phono TRS, Binding Posts & Speakon Connectors
