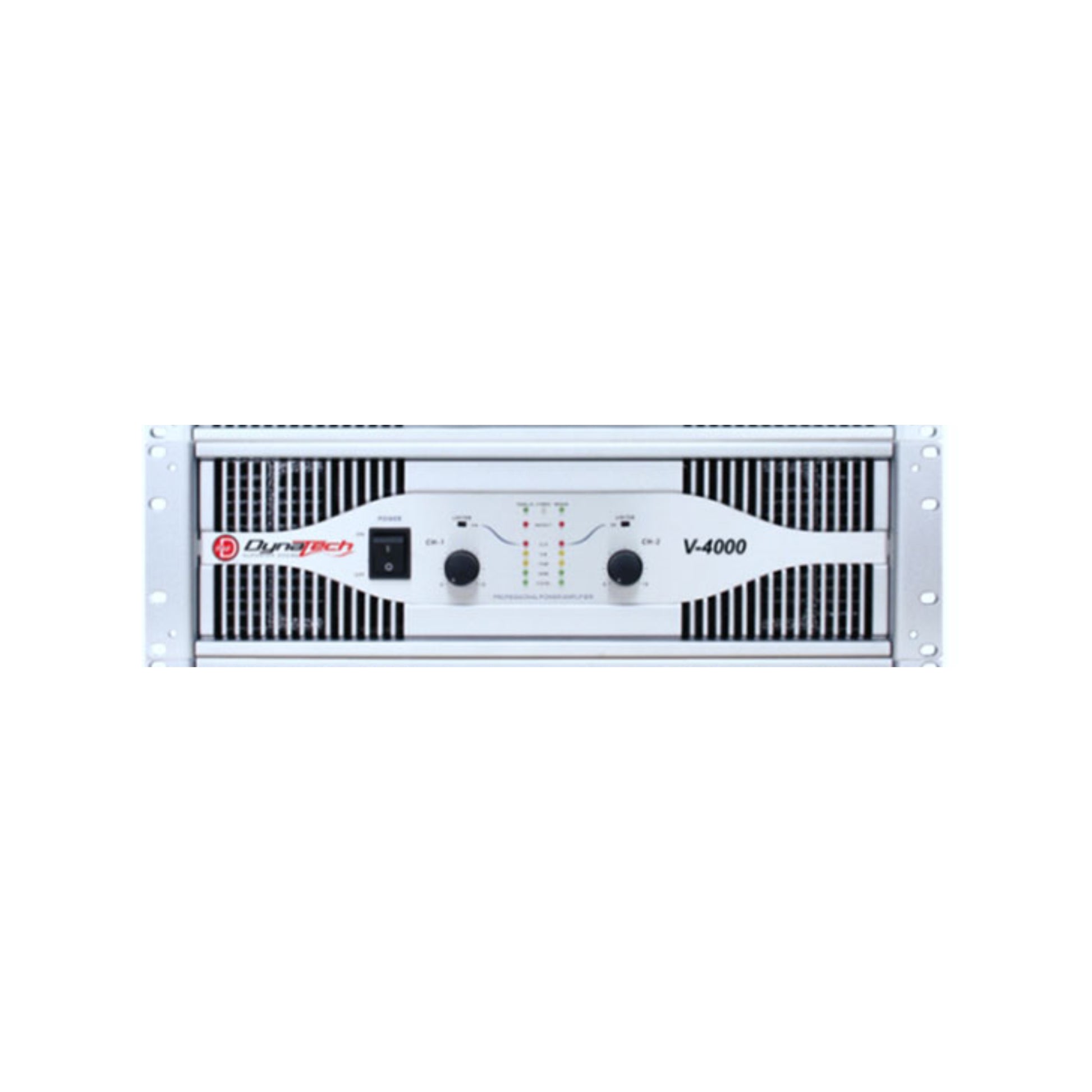

DYNATECH V 4000

DYNATECH V 4000

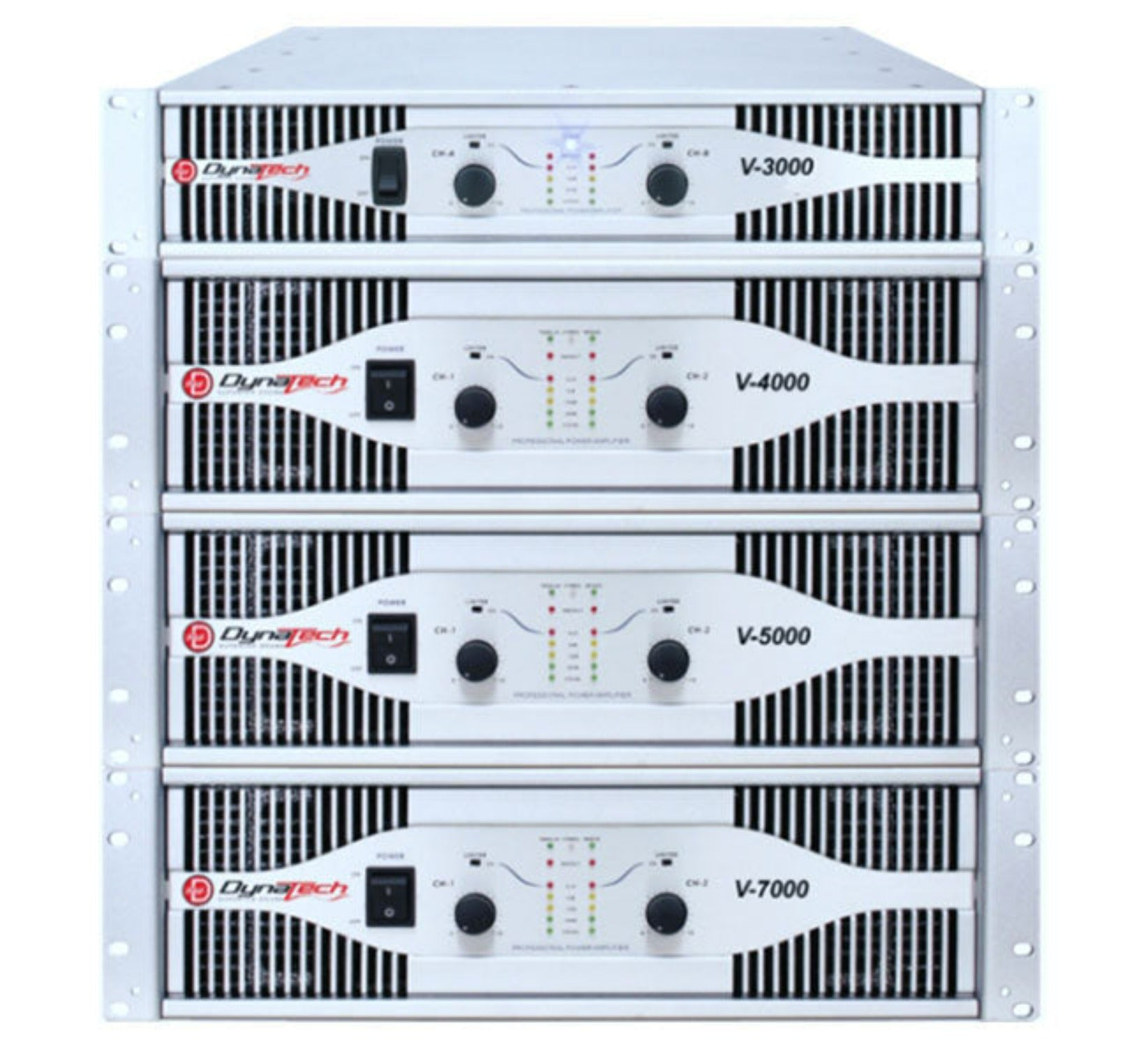

Dynatech V Series Power Amplifiers deliver from 500 Watts to 6800 Watts of power in two to three rack spaces. High current transistors combined with low noise input amplifiers enable the V series to deliver exceptional power.

More Information

Built around robust and advanced toroidal transformers, they deliver clean power on demand. The advanced protection circuitry guards against short circuit and open circuit, and also protects against ultrasonic and RF interference. A high current power supply increases reliability and performance. Other features include center-dented gain controls, input peak limiter, and fast recovery to ensure low distortion. The variable speed Fans effectively cool the amp and protect against overheating. Input is through XLR connectors for output. TheV Series Power Amplifiershave sub woofer outputs with a selectable low pass filter at variable frequency upto 200Hz. DynatechV Series Power Amplifiersare specially designed for professionals who value high power, audio clarity, reliability and lasting performance.

Technical Specification



MODEL   V-4000
  RMS Output Power (Per Channel, 8Ω) 700 W
  RMS Output Power (Per Channel, 4Ω) 1200 W
  RMS Output Power (Per Channel, 2Ω) 1600 W
  Rated Power (Bridge 8Ω) 2400 W
  Rated Power (Bridge 4Ω) 3200 W
  Input Sensitivity 0.775V, 1V, 1.4V Selectable
  S/N Ratio (A Weight) >108 dB
  Frequenct Response (+0/-0.25dB) 20 Hz to 20 kHz
  Class H
  Damping Factor >700 : 1
  THD (10% Rated Power) 0.05%
  Input Connector 2 XLR
  Input Impedance 20 KΩ Balanced, 10 KΩ Unbalanced
  Output Connectors Speakon + Binding Post
  Cooling 2 X Fan airflow from back to front
  Power Supply 230 V AC / 50Hz
  Dimension WxDxH (mm) 132 X 483 X 410
