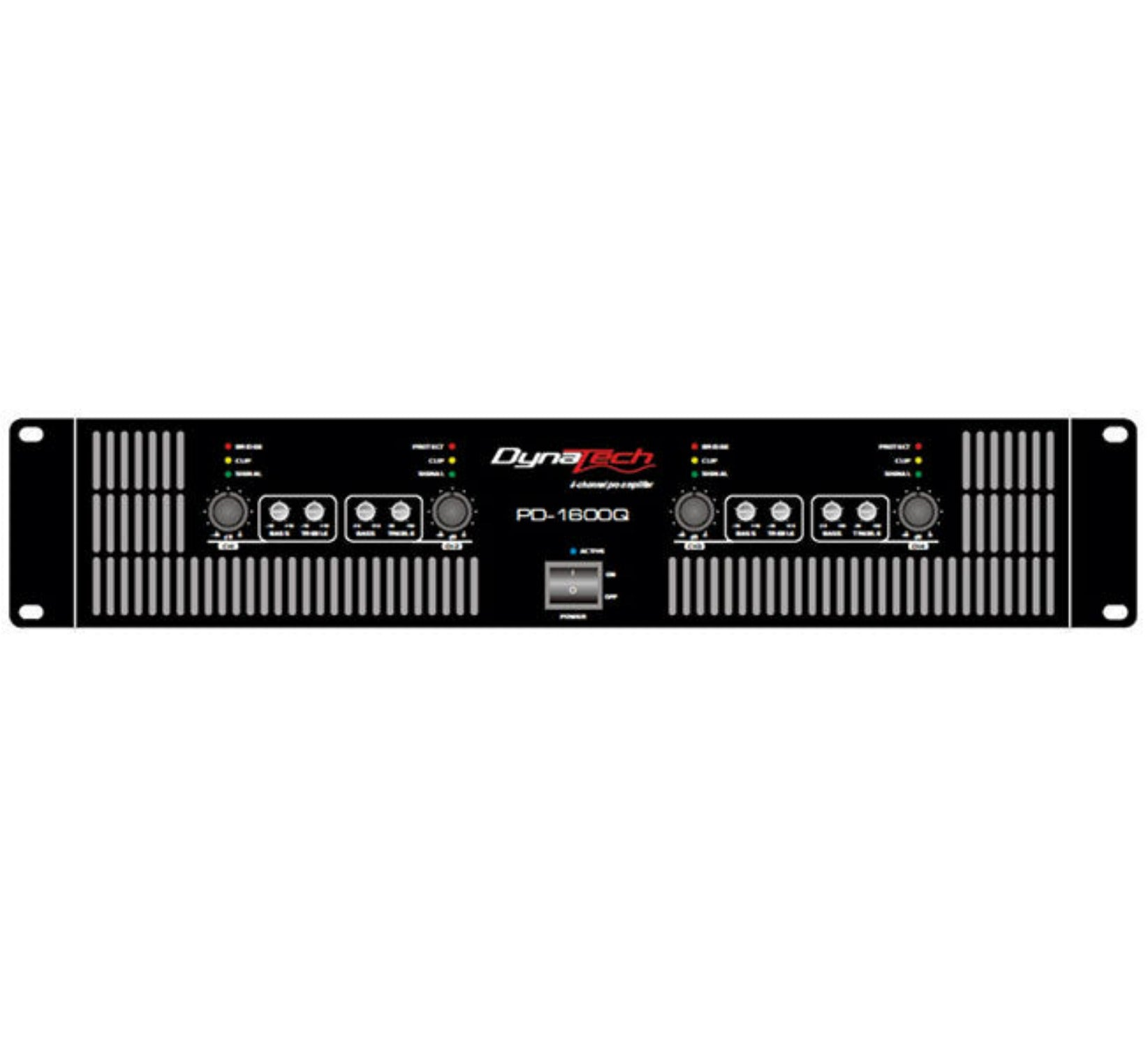

DYNATECH PD 1600 Q

DYNATECH PD 1600 Q

Three power configurations; 4 channel 3 channel or 2 channel.

More Information

Individual 4 channel inputs and 2 channels inputs. Independent volume control 4 channels, independent signal indication, Independent clip indication Bridge mode switch for channel 1 & 2 and channel 3&4. ThePD-1600Qoffers maximum flexibility without compromising on power or performance. It also comes with additional bass and treble controls.

Technical Specification



MODEL   PD-1600Q
  RMS Output Power (Per Channel, 8Ω) 4 X 200 W
  RMS Output Power (Per Channel, 4Ω) 4 X 300 W
  Rated Power (Bridge 8Ω) 2 X 300 W
  Rated Power (Bridge 4Ω) 2 X 600 W
  Input Sensitivity 0.775 V
  S/N Ratio (A Weight) >100 dB
  Frequenct Response (+0/-0.25dB) 20 Hz to 20 kHz
  Class AB
  Damping Factor >200 : 1
  THD (10% Rated Power) 0.05%
  Input Connector 4 X XLR
  Input Impedance 20 KΩ Balanced, 10 KΩ Unbalanced
  Output Connectors Binding post
  Cooling 2 X Fan Airflow from front to back
  Power Supply 230 V AC / 50 Hz
  Dimension HxWxD (mm) 89 X 483 X 360
  Net Weight (1 piece/pack) 16 Kgs
  Gross Weight 19 Kgs
