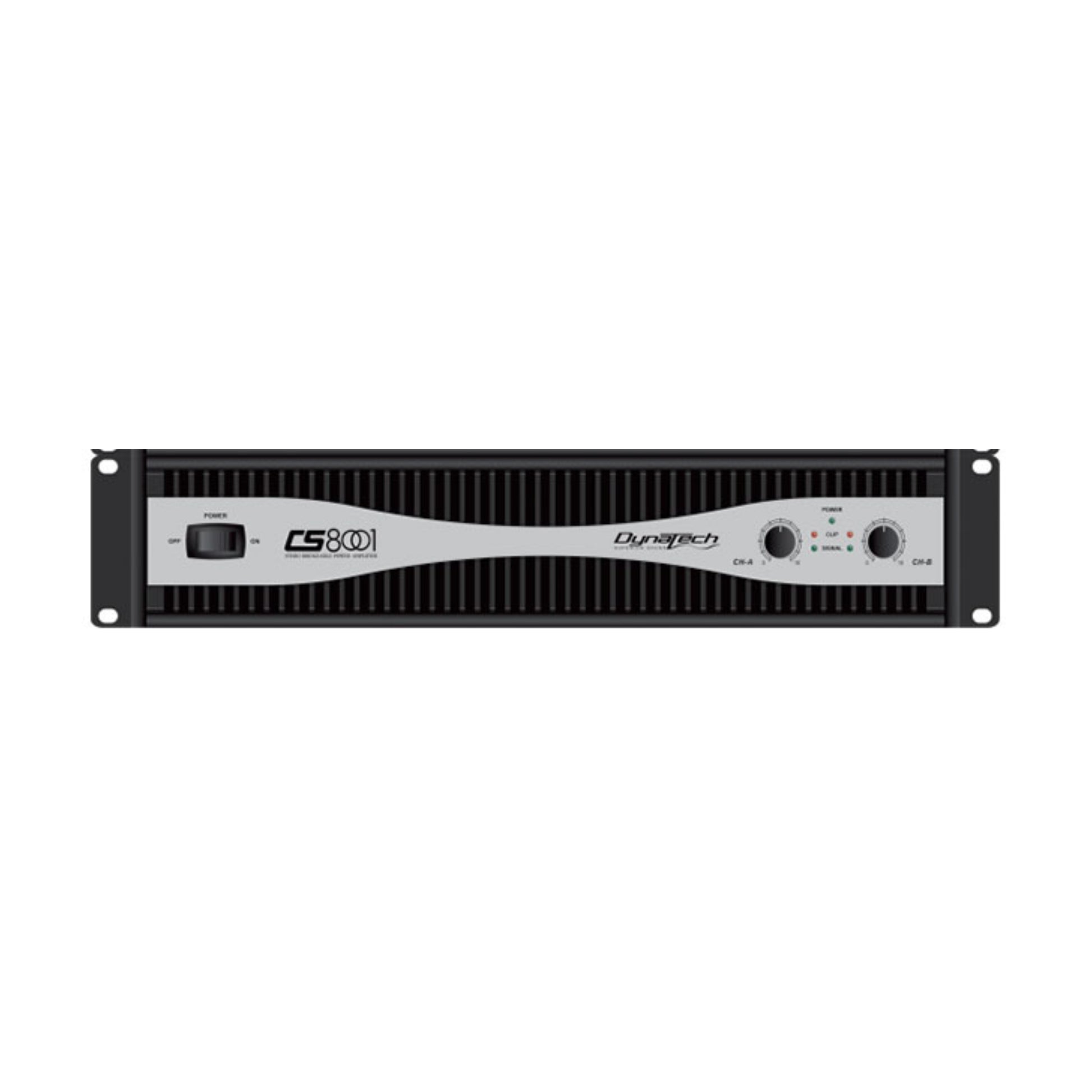

DYNATECH CS 8001

DYNATECH CS 8001

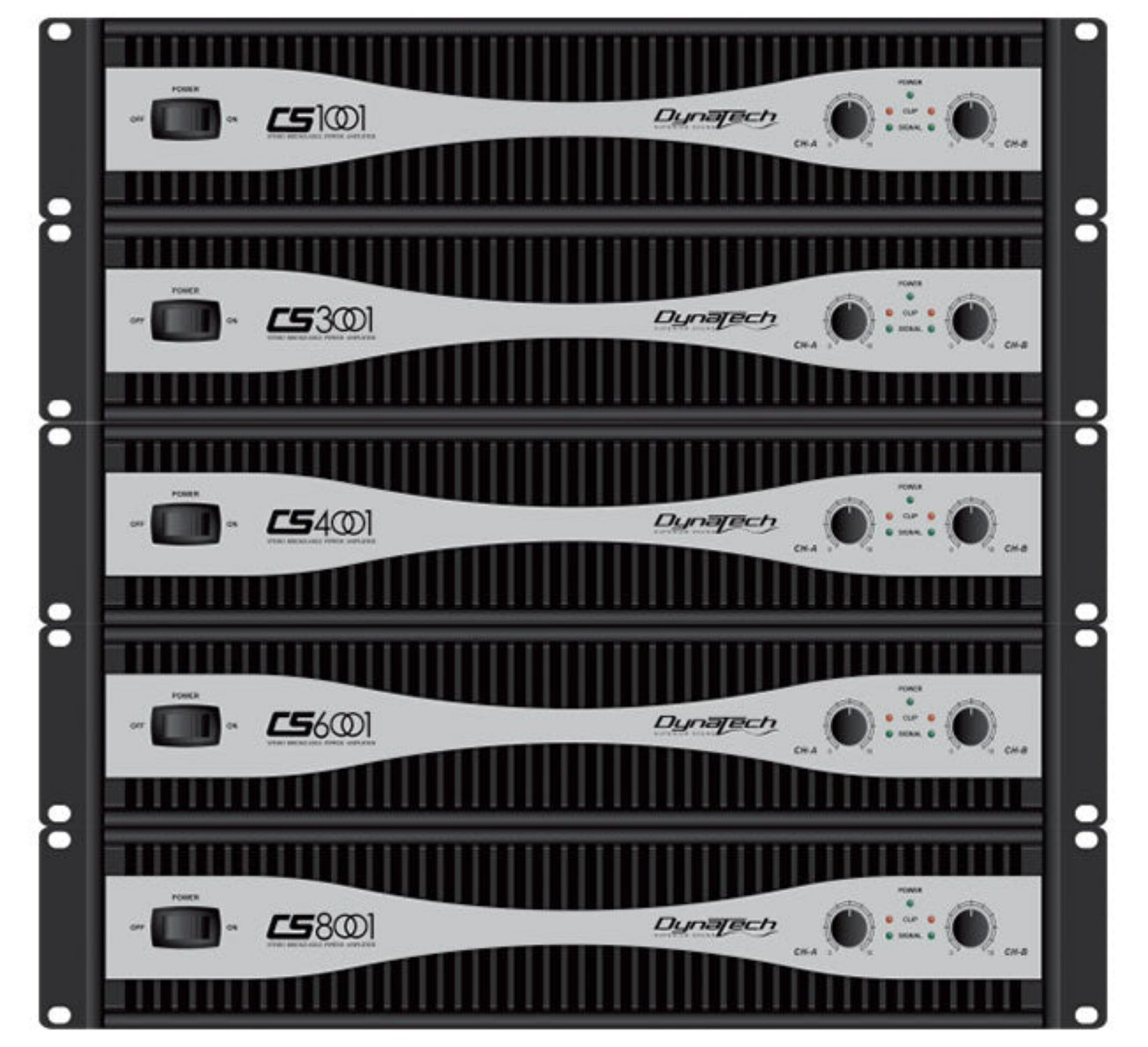

The Commercial Series (CS) Amplifiers are the most popular line of our catalog of amplification.

More Information

Its success is based on an architecture class AB reliable high performance and low cost, and very easy operation mode invites casual users to become professional users: grow professionally with your own team! They are ideal for: disc jockeys (DJs) sound and light equipment fixed installations in restaurants, temples, schools.

Technical Specification



  MODEL CS-8001
  RMS Output Power (Per Channel, 8Ω) 310 W
  RMS Output Power (Per Channel, 4Ω) 590 W
  RMS Output Power (Per Channel, 2Ω) 1050 W
  Rated Power (Bridge 8Ω) 1020 W
  Rated Power (Bridge 4Ω) 1960 W
  Input Sensitivity 0.5V
  S/N Ratio (A Weight) >100 dB
  Frequenct Response (+0/-0.25dB) 20 Hz to 20 kHz
  Class AB
  Damping Factor >400 : 1
  Input Connector 1 X XLR in, 1 X XLR Line Out
  Input Impedance 20 KΩ Balanced, 10 KΩ Unbalanced
  Output Connectors Speakon
  Cooling Two fans, temperature controlled speed
  Dimension WxDxH (mm) 483 X 406 X 88
  Net Weight (1 piece/pack) 15.8 Kgs
  Gross Weight 18 Kgs
