AMPHENOL KM2P

AMPHENOL KM2P

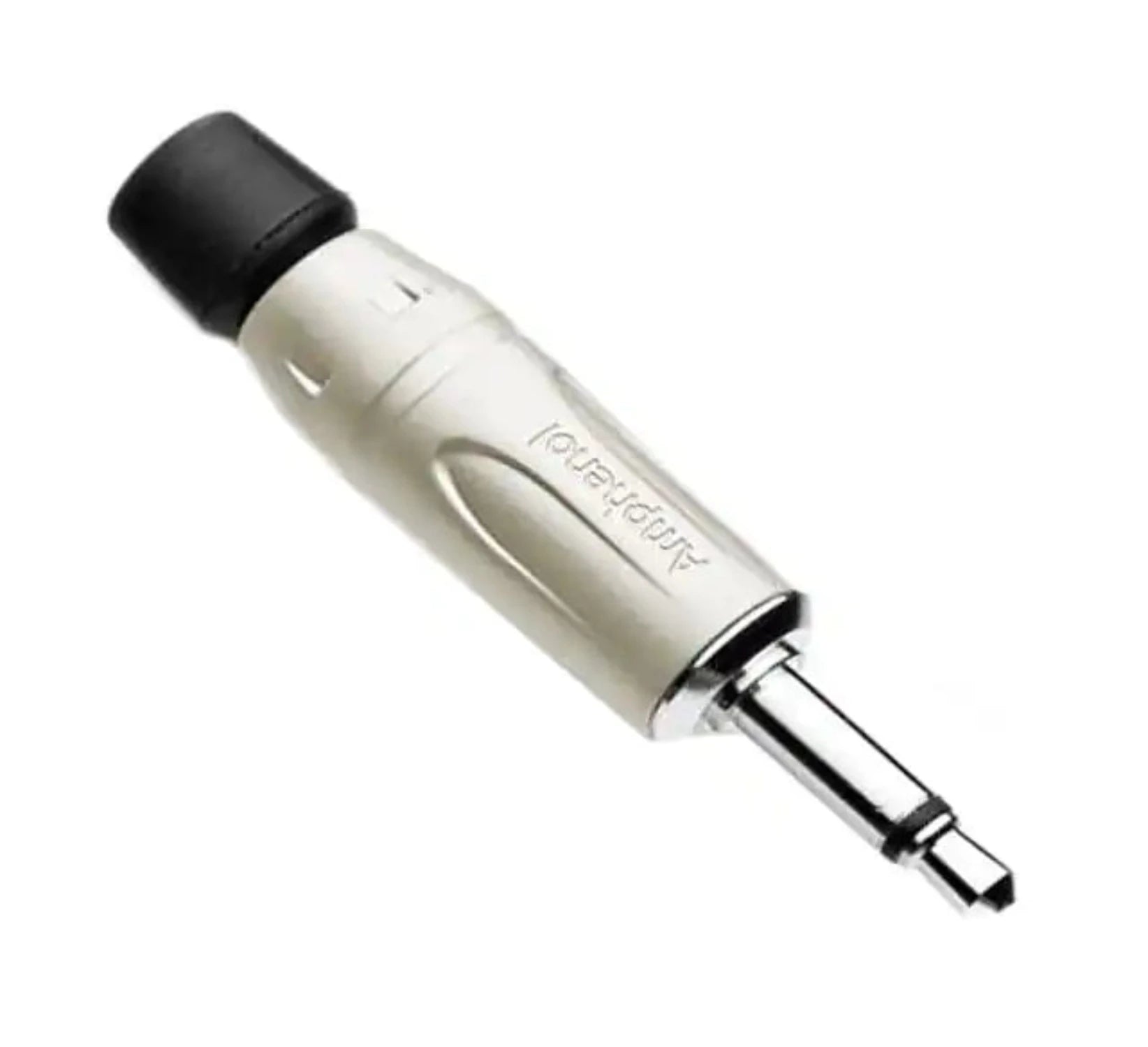

The nickel K Series 3.5mm 2-Pole Mono Phone Plug Connector by Amphenol Audio Products is for soldering to studio-quality cables and is engineered for critical recording and broadcast applications. It features a diecast shell with precision-machined contacts. The connector is offered with a flexible grommet to help protect the cable. This K series connector is RoHS compliant.

More Information

Key Features

  • Diecast Shell
  • For Cables 2.5 to 5mm Diameter
  • Precision-Machined Contacts
  • Quick Assembly 3 Piece Design
  • Flexible Grommet Cable Protection
  • RoHS Compliant

Technical Specification

SPECIFICATIONS:
  • Positions: 2
  • Finish: Nickel
  • IP Rating: IP40
  • Current Carrying Capacity: >0.5mA (Depending on mating connector ad cable)
  • Termination: Solder
  • Max Wire Gauge: 16AWG -1.5mm²
  • Flammability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Typical Contact Resistance: < 20mΩ (Depends on mating connector)
  • Insulation Resistance: >200MΩ / >100MΩ after Damp Heat Test
  • Operating Temperature: -20°C to +65°C (-4°F to 149°F)
  • Insertion and Withdrawal Force: < 20N/ > 30N (depends on mating connector)
  • Cable OD Range: 3mm to 5mm (0.118" to 0.196")
  • Mating Cycles: 1000
  • Housing Material: Diecast Zinc Alloy EZDA No.3
  • Application(s): Audio & Lighting
