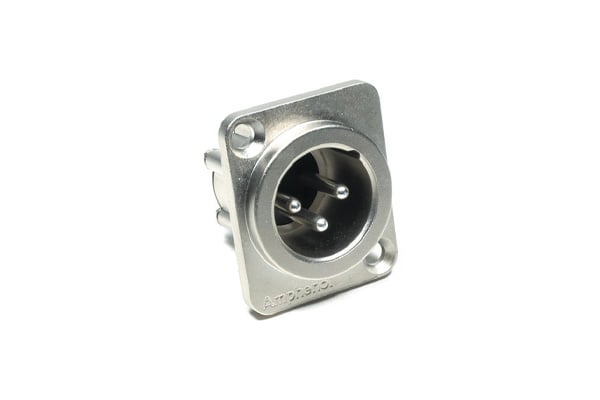

AMPHENOL AX3MD

AMPHENOL AX3MD

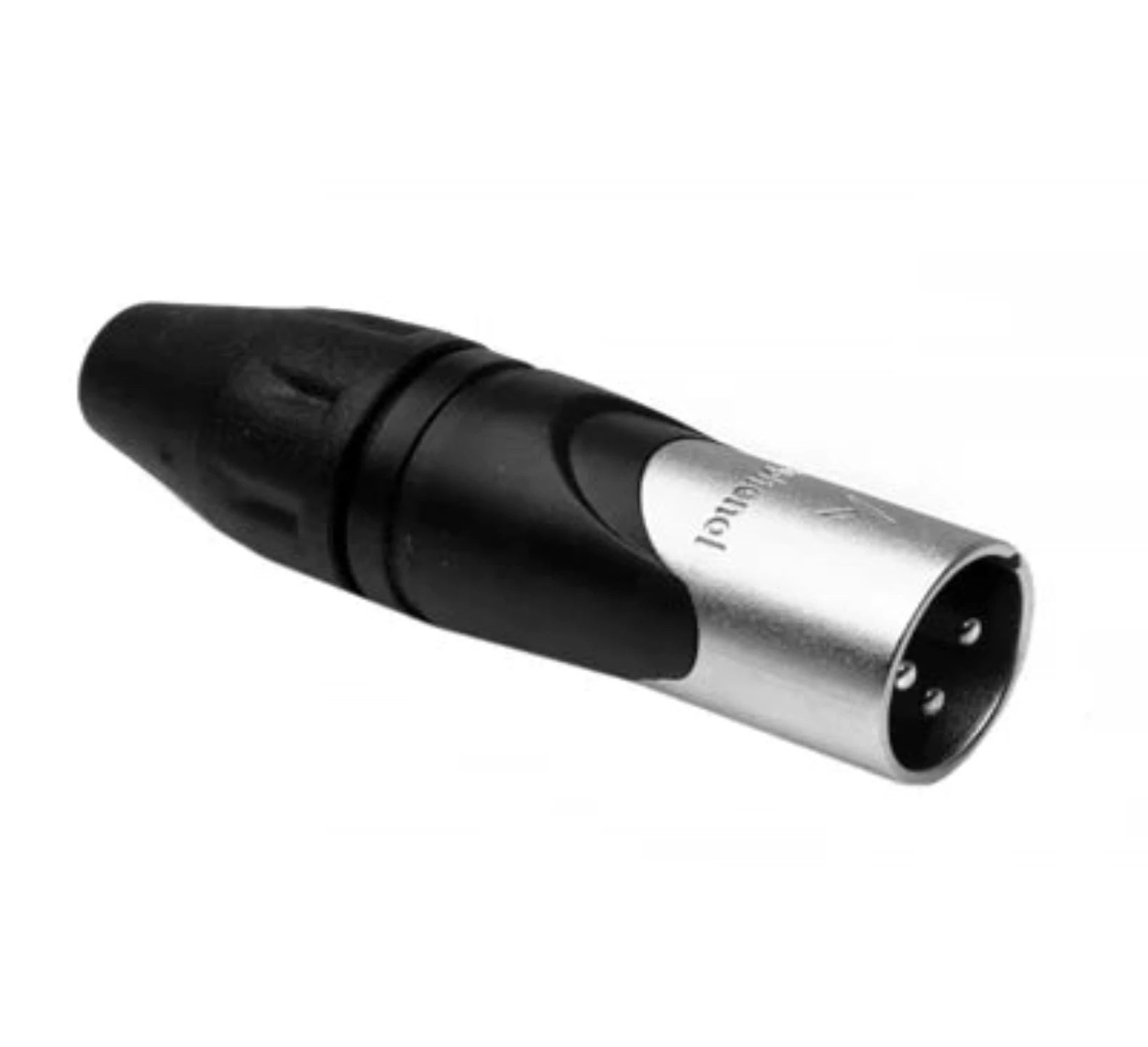

The AX series XLR Cable Connectors introduce an exciting contemporary look and feel to the professional audio interconnect market. They are designed to complement modern audio architecture and truly fit within their environment. An impressive list of features guarantees pure sound performance in the most demanding applications providing unrivalled value. The one piece ground/latch spring design incorporating twin wipe contacts for a direct connection path from mating shell to ground providing enhanced connection and EMI performance.

More Information

Features:

  • Unique Australian designed shell and housing.
  • Ergonomic stylish sleeve design for improved grip.
  • Oversized latch lever preserves your thumb.
  • Leading first mate last break pin 1 on socket connectors.
  • Chuck style cable clamp to suit 3mm - 8mm (0.118" - 0.314") cable.
  • Overmolded cable support boot.
  • New socket contact design for improved contact resistance.
  • Precision machined pin contacts as standard.
  • Compact 2.5mm2 (14 AWG) solder buckets to reduce soldering time and wastage.
  • Zinc diecast shell housing with Satin nickel or Matt black finish.
  • Available in 3, 4 and 5 contacts
  • RoHS Complaint

Technical Specification



General Characteristics
gender male
IP-class mated IP40
number of positions (w/o PE) 3
part category male receptacle
Further Characteristics
lower temperature (GC) -25
upper temperature (GC) 70
Electrical Characteristics
rated current (40 °C) (A) 15
rated voltage (V) 50
