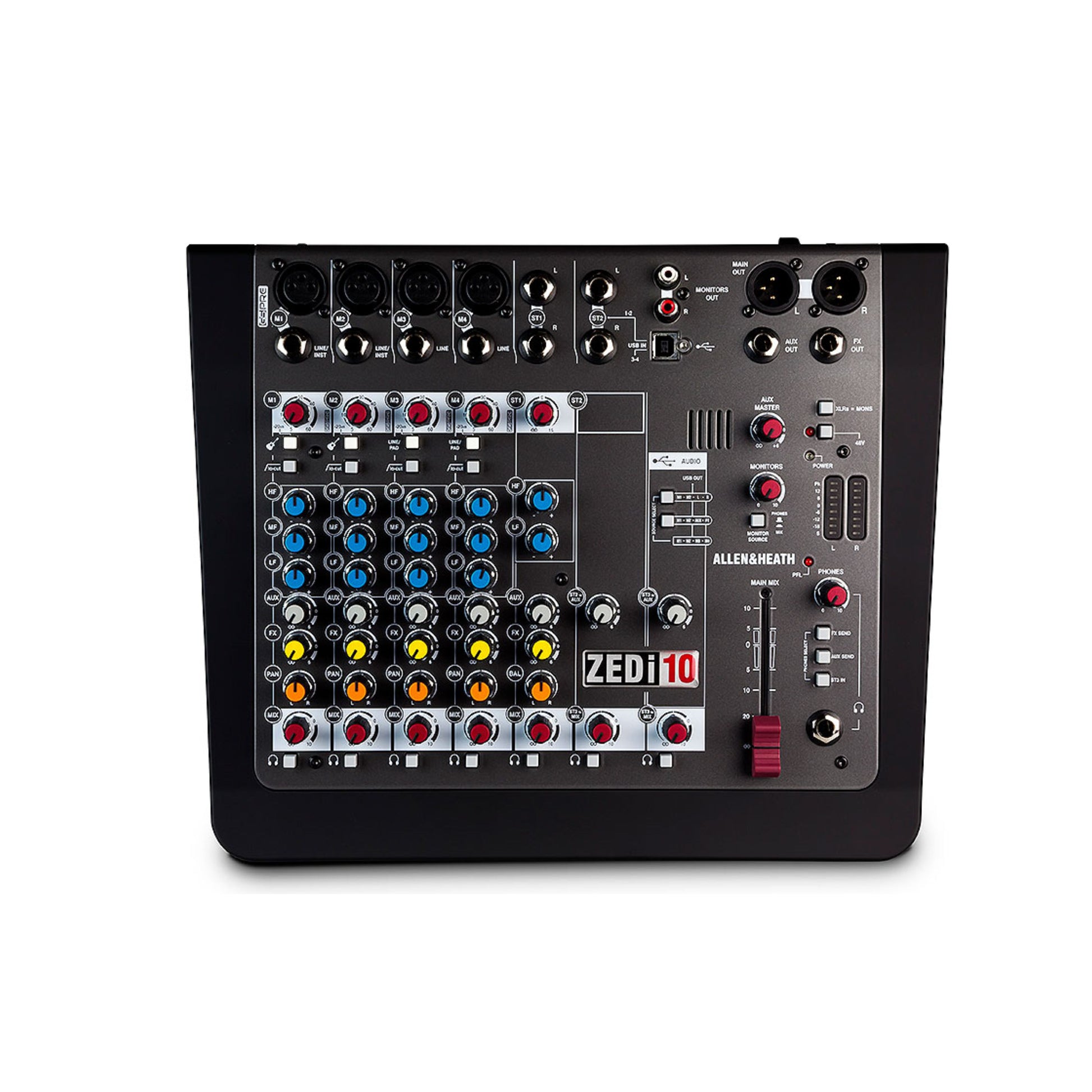

ALLEN AND HEATH ZEDi-10

ALLEN AND HEATH ZEDi-10

Hybrid compact mixer / 4×4 USB interface

ZEDi-10 combines the robustness and hands-on control of an analogue mixer with a high quality 4 x 4 USB interface, making it a perfect all-round choice for musicians, recording artists and venues. Whether it’s bouncing ideas around at home, performing live or recording tracks to share on YouTube and Soundcloud, ZEDi-10 is a versatile companion for every step of the creative journey.

The studio quality, 24-bit / 96kHz, 4×4 USB interface makes it easy to capture stunning multitrack recordings direct from the mixer to a Mac or PC without the need for any extra equipment. Featuring the new GSPre boutique preamp design, developed from the revered GS-R24 studio recording console, the ZED boasts exceptionally low noise and massive headroom, with a signature analogue warmth and depth. Guitarists will be pleased to know that two of ZEDi-10’s mono channels feature Guitar DI high impedance inputs, allowing guitars to be plugged straight into the mixer without the hassle and expense of carrying separate DI boxes.

More Information

MIXER + USB INTERFACE

ZEDi-10 offers the best of both worlds, incorporating a studio quality 4 in / 4 out, 24-bit/96kHz USB audio interface for hassle-free multitrack recording and playback to/from a Mac or PC, or to an iOS device using the iOS camera kit. The USB output source can be set up in several different ways to match your workflow.

CUBASE LE MUSIC PRODUCTION SOFTWARE INCLUDED

ZEDi-10 comes with the acclaimed Cubase LE software. Cubase LE offers powerful yet easy-to-use software tools for audio recording, editing, MIDI sequencing and mixing. Its vast range of proven editing and sequencing tools can be used for a large range of music styles and areas of application. From singers and songwriters recording vocal lines to rock bands jamming in their rehearsal room, Cubase LE is as easy as it gets – with outstanding audio quality as well as time-saving recording and editing functionality.

CUBASIS LE MOBILE MUSIC PRODUCTION APP

The mixer also comes bundled with the Cubasis LE app. Cubasis LE is the compact version of Steinberg’s streamlined, multitouch sequencer for the iPad, providing the same look and feel of its bigger brother Cubasis. Specially designed for quick and easy operation, Cubasis LE makes recording, editing and mixing a breeze.

EXCEPTIONAL AUDIO QUALITY

ZEDi-10 features an exceptional new preamp design, created by analogue guru, Mike Griffin and developed from his highly acclaimed GS-R24 studio recording console. Known as GSPre, the preamps deliver exceptionally low noise and massive headroom, and the warmth and depth that Allen & Heath’s analogue range is famous for. For tonal shaping, the precise 3 band MusiQ EQ controls have been carefully calibrated for responsiveness and precision, making it easy to shape and enhance each musical source.

ROAD TOUGH

All ZED mixers are designed and built to Allen & Heath’s legendary touring grade standards to ensure a long life in the toughest environments. All channels are on individual, vertical circuit boards and all rotary controls are secured to the front panel with a steel nut to guard against impact damage.

MADE FOR GUITARS

ZEDi-10 comes with two Guitar DI high impedance jack inputs, allowing guitars to be plugged straight into the mixer without the need for DI boxes. That’s one less piece of gear to buy, carry and set up.

IT’S AN ALLEN & HEATH

Allen & Heath has been a trusted name in professional audio since 1969. The ZED technology advances, but the commitment to audio excellence and build quality endures.

PERFECT FOR PODCASTS

The ZEDi-10 provides all the tools you need to record your podcast to a professional standard, and it’s simple enough for beginners to start using within minutes.

Technical Specification

  • 4 in, 4 out USB Audio Interface (24-bit/96kHz)
  • Cubase LE Software included
  • Cubasis LE App included
  • 4 Mic / Line Inputs with separate XLR and TRS jack sockets
  • 2 Stereo Inputs with TRS jack sockets
  • 2 Guitar DI high impedance inputs, eliminating the need for DI boxes
  • Lo-cut filter for cleaning up unwanted low frequency noise
  • 3 band EQ for easy creative and corrective tonal shaping
  • FX out for connecting external effects units
  • Aux out for connecting a monitor speaker or in-ear / headphone monitoring
  • 60mm smooth travel fader on main mix
  • XLR main outputs
  • Flexible signal monitoring
  • 8 LED signal metering
  • 48V Phantom Power for condenser mics
  • Robust internal power supply
