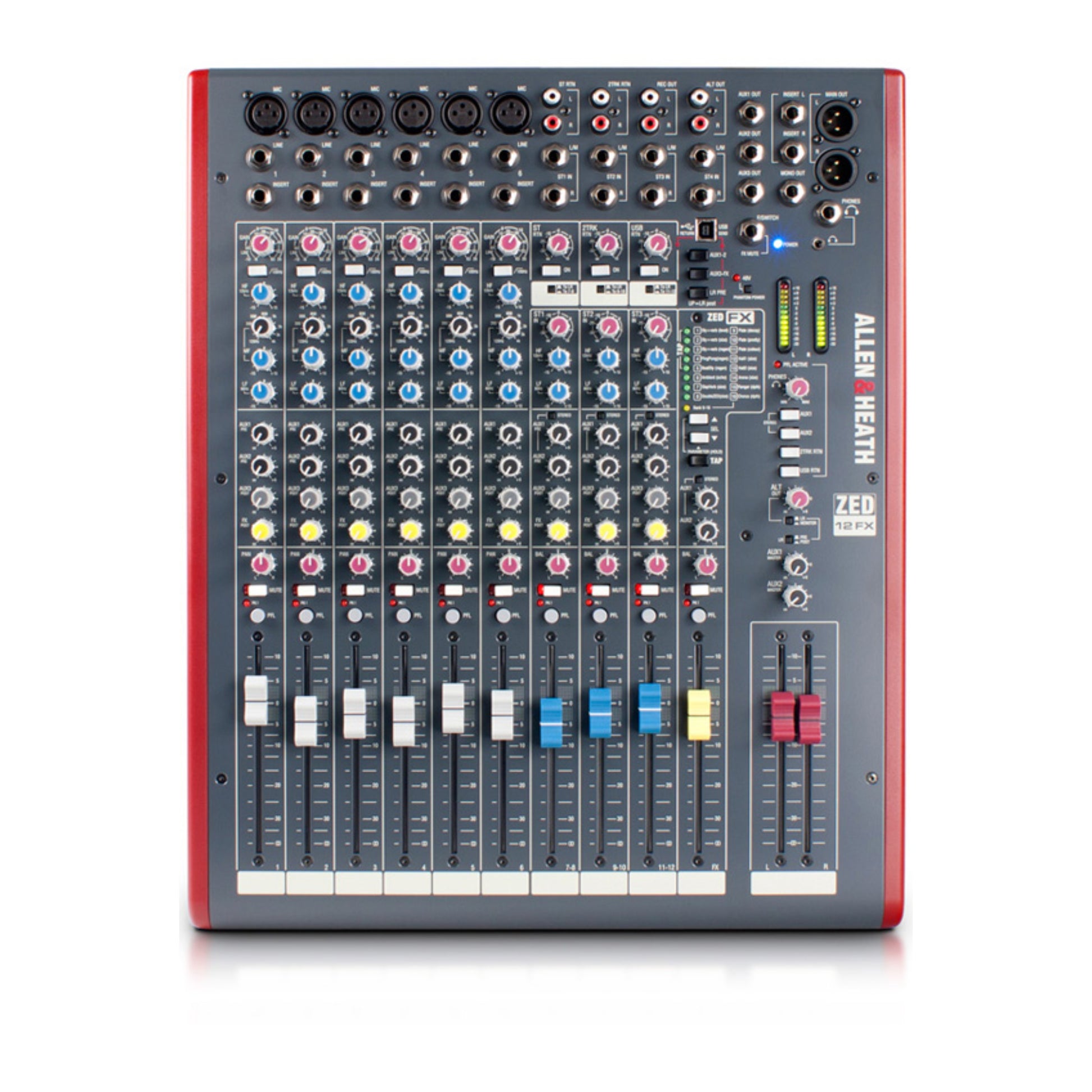

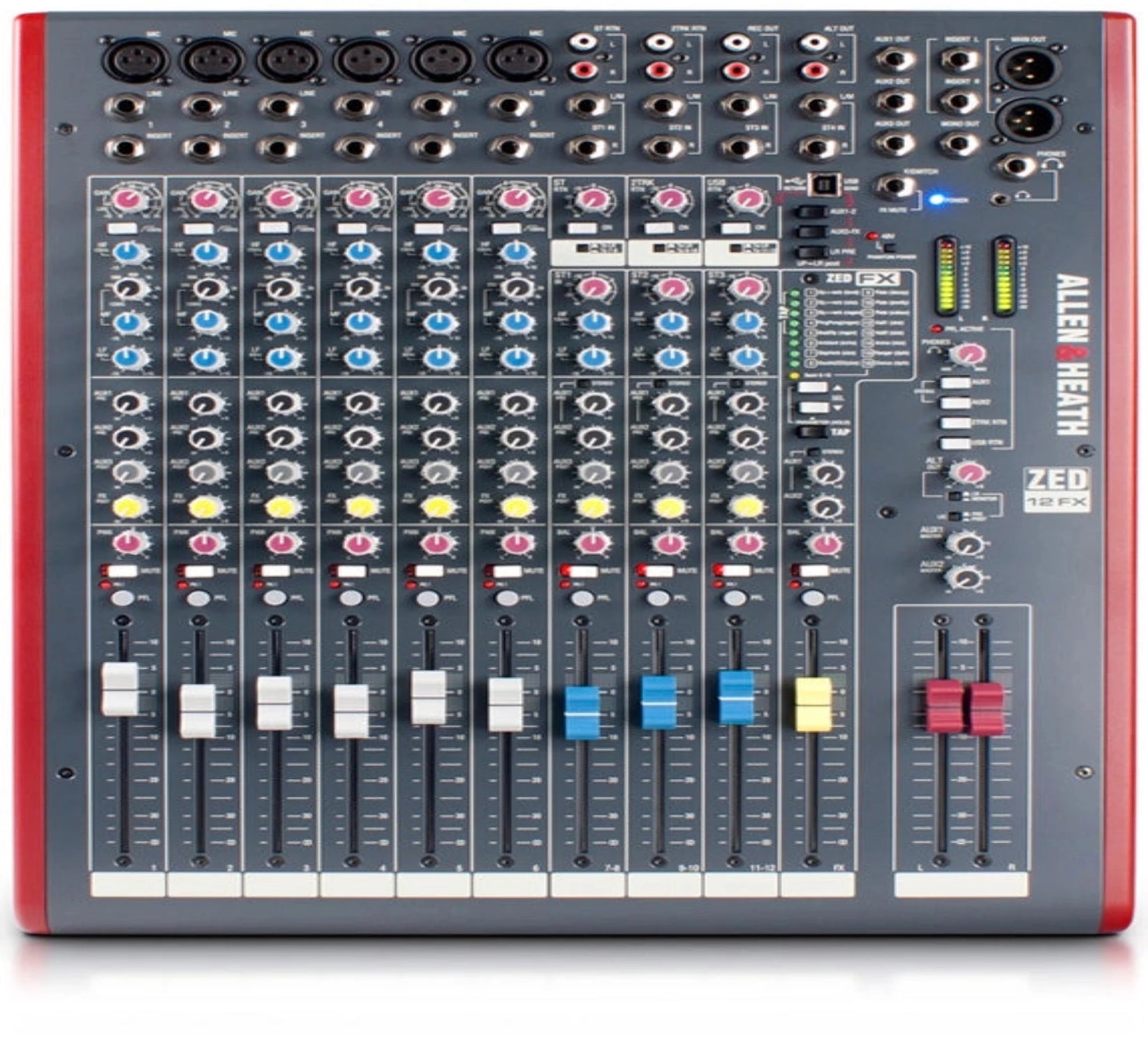

ALLEN AND HEATH ZED I SERIES MID ZED 12FX

ALLEN AND HEATH ZED I SERIES MID ZED 12FX

ZED-12FX is ideal for groups who need to travel light. Even with its small footprint, the 12FX squeezes in 4 auxiliary channels and swept semi-parametric EQ on top of the already impressive feature set including configurable USB audio in/out makes it easy to capture stereo recordings.

More Information

  • 16 mono channels
  • 2 dual stereo inputs with 4-band EQ
  • Neutrik mic XLR
  • Neutrik 1/4 inch jacks
  • Channel insert
  • Super wide gain ‘DuoPre’ mic line input
  • 4-band EQ with 2 swept mids and in/out switch
  • Illuminated mute
  • Sound image pan
  • Illuminated PFL & peak warning indicator
  • ALPS 100mm faders
  • 6 auxiliary sends (2 pre, 2 post, 2 pre/post)
  • 4 sub groups fed from each channel
  • All inputs with level control
  • 12 bar meters
  • L, R and M main mix outputs
  • 2 matrix sections available; can send output to USB
  • Individual channel 48V phantom power
  • Direct output on every mono channel
  • Peak and signal indication on every channel
  • Configurable USB stereo audio in/out
  • Master level controls on all outputs
  • Easy to use layout – all connections and controls on top surface

Technical Specification









Mixer
Number of Analog Input Channels 20
Number of Mic Preamps 16
Analog Output Channels 1 x Stereo Master Output
1 x Mono Master Output
4 x Mono Bus/Subgroup Output
6 x Mono Aux Send Output
2 x Mono Matrix Output
1 x Stereo Tape/Record Output
1 x Stereo Headphone Output
Faders & Level Adjustment 3.9" / 100 mm Channel Fader
Meters Main Meter:
2 x 12-Segment LED
Bus Meter:
4-Segment LED
Channel Meter:
2-Segment LED
Signal Processing
Gain/Trim Range Mic Input:
-6 dB to +63 dB
Line Input:
-10 dB to +26 dB
Stereo Input:
-∞ to +10 dB
Fader:
-∞ to +10 dB
Return:
-∞ to +10 dB
Aux:
-∞ to +10 dB
Matrix:
-∞ to +6 dB
EQ Parameters Mono Channels:
High: ±15 dB at 12 kHz (Shelving)
Hi-Mid: ±15 dB at 500 Hz to 15 kHz (Notch/Peak)
Lo-Mid: ±15 dB at 35 Hz to 1 kHz (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Stereo Channels:
High: ±15 dB at 12 kHz (Shelving)
Hi-Mid: ±15 dB at 2.5 kHz (Notch/Peak)
Lo-Mid: ±15 dB at 250 Hz (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Mono Channels:
High: ±15 dB at 12 kHz (Shelving)
Hi-Mid: ±15 dB at 500 Hz to 15 kHz (Semi-Parametric)
Lo-Mid: ±15 dB at 35 Hz to 1 kHz (Semi-Parametric)
Low: ±15 dB at 80 Hz (Shelving)
Stereo Channels:
High: ±15 dB at 12 kHz (Shelving)
Hi-Mid: ±15 dB at 2.5 kHz (Notch/Peak)
Lo-Mid: ±15 dB at 250 Hz (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Filters High-Pass: 100 Hz, 12 dB/Octave
Solo/Mute Mute, PFL per Input Channel
Mute, Solo-in-Place/AFL per Bus
Mute per Master
Built-In Effects None
Digital Audio
Sample Rates 32 / 44.1 / 48 kHz
Bit Depth 16-Bit
Performance
Headroom Analog: +21 dB
USB I/O: +14 dB
Frequency Response Mic Input to Main Output:
20 Hz to 20 kHz +0.5/-1 dB (30 dB Gain)
Line Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB (Unity Gain)
Stereo Input to Main Output:
10 Hz to 30 kHz +0.5/-1 dB
Max Input Level Mic Input:
+17 dBu
Line Input:
+30 dBu (Mono)
Insert Return:
+21 dBu
Output Level XLR Main Output:
+4 dBu (Nominal)
+27 dBu at Max Gain
Group Output:
+4 dBu (Nominal)
+27 dBu at Max Gain
Aux Output:
-2 dBu (Nominal)
+21 dBu at Max Gain
Matrix Output:
-2 dBu (Nominal)
+21 dBu at Max Gain
Insert Send:
-2 dBu (Nominal)
+21 dBu at Max Gain
Tape/Record Output:
0 dBu (Nominal)
+21 dBu at Max Gain
Direct Output:
0 dBu (Nominal)
+21 dBu at Max Gain
EIN -127 dBu at Max Gain (150-Ohm Input)
Noise Floor Main Output:
-90 dB (16 Channels Routed, Ref +4 dBu, 22 Hz to 22 kHz)
-86 dBu (16 Channels Routed, Ref +4 dBu, 22 Hz to 22 kHz)
THD+N Mic Input to Main Output:
0.004% at Unity Gain (+10 dBu, 1 kHz)
Mic Input to Main Output:
0.014% at +30 dB Gain (1 kHz)
Line Input to Main Output:
0.005% at Unity Gain (0 dBu, 1 kHz)
Stereo Line Input to Main Output:
0.003% at Unity Gain (+10 dBu, 1 kHz)
Connectivity
Analog Inputs 1 x Stereo RCA Coaxial 2-Track Input
1 x XLR 3-Pin Balanced Talkback Input
16 x 1/4" TRS Unbalanced Channel Insert
4 x 1/4" TRS Unbalanced Subgroup Insert
2 x 1/4" TRS Unbalanced Stereo Main Insert
1 x 1/4" TRS Unbalanced Main Insert
16 x XLR 3-Pin Balanced Mic Input
16 x 1/4" TRS Balanced/Unbalanced Line Input
2 x Stereo RCA Coaxial Unbalanced Aux/Line Input
4 x 1/4" TRS Balanced/Unbalanced Line Input (2 Stereo Pairs)
Analog Outputs 1 x 1/4" TRS Headphone Output
1 x 1/8" / 3.5 mm TRS Headphone Output
1 x Stereo RCA Coaxial Unbalanced 2-Track Output
16 x 1/4" TRS Balanced Direct Output
3 x XLR 3-Pin Balanced Main Output
4 x 1/4" TRS Balanced Subgroup Output
2 x 1/4" TRS Balanced Matrix Output
6 x 1/4" TRS Balanced Aux Send
Phantom Power +48 V (Selectable on Individual Inputs)
USB 1 x USB-B 1.1()
USB I/O Capacity 2 x Input / 2 x Output
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 60 W (Maximum)
Physical
Rack Mountable No
Dimensions 28.2 x 5.1 x 22.1" / 71.5 x 12.9 x 56 cm
Weight 31 lb / 14.1 kg
