ALLEN & HEATH Qu-16

ALLEN & HEATH Qu-16

A Compact and Budget-friendly Digital Mixer

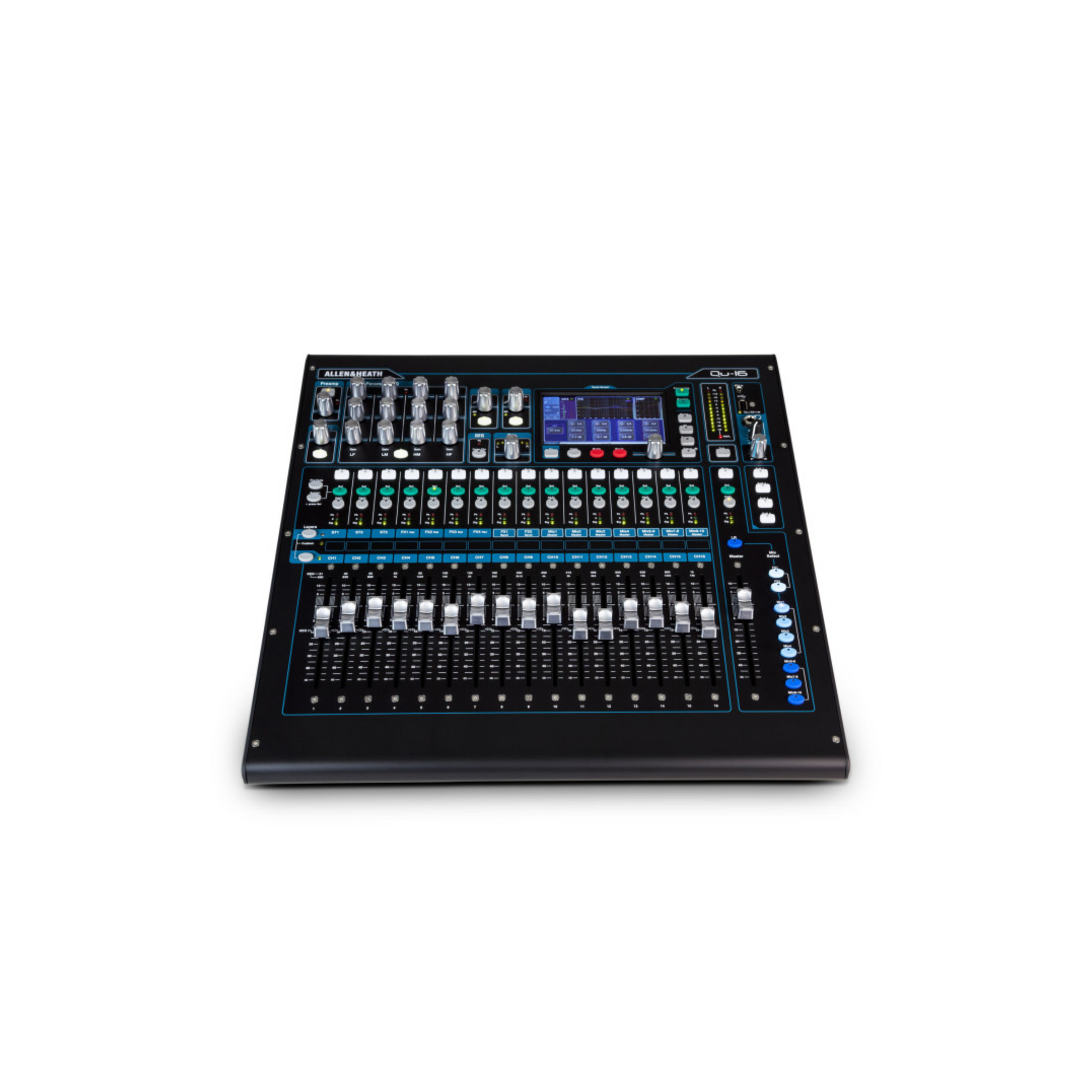

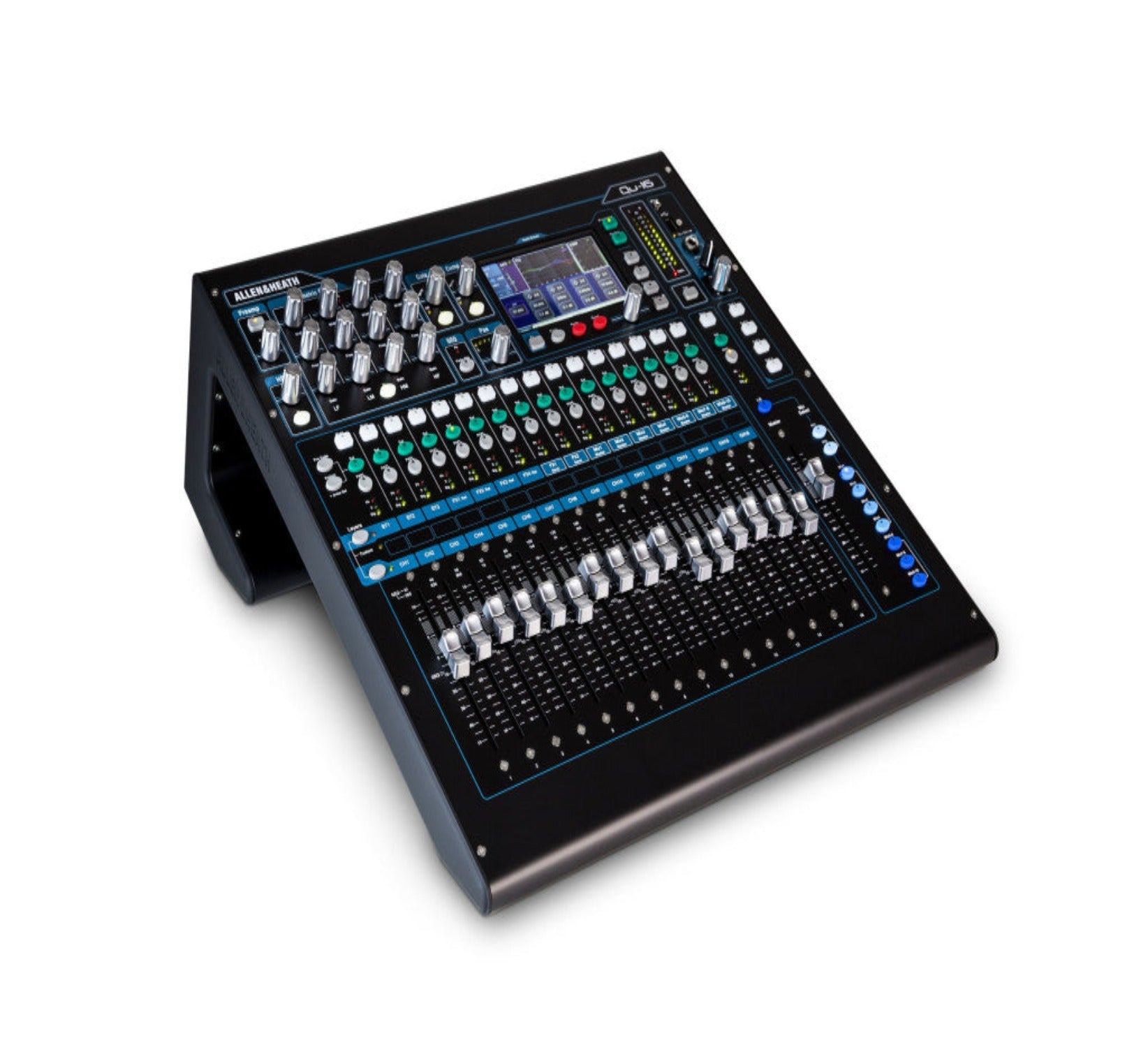

The Allen & Heath Qu-16 Chrome Edition rackmountable digital mixer utilizes the technology found in the GLD and iLive digital mixing systems to create a powerful and compact mixer for live and studio use. Expanding on the original Qu-16, the Chrome Edition adds 16 channels of automated mic mixing, a spectrogram display, and additional monitor mixes. This powerful 16-channel mixer offers 14 mixes, an easy-to-use touchscreen, multitrack recording, motorized faders, and much more. You can even use your iPad to take control of key functions of the mixer, including key settings, monitor mixes, front of house mix, and more. Add a powerful digital mixer to your rig with the Allen & Heath Qu-16 Chrome digital mixer.

More Information

Allen & Heath Qu-16 Chrome Edition Digital Mixer Features:

  • Digital mixer with metal-finish controls
  • Automatic Mic Mixing for easier control over conferences and broadcast
  • Built-in touchscreen offers access to channel strips, effects, and more
  • Motorized faders make settings recall easier than ever
  • Use your iPad to take control of key functions of the mixer
  • Features many iLive effects emulations
  • Spectrogram view for finding feedback and problem frequencies fast
  • USB interface for library date, scene storage, and multitrack recording
  • Powered by 5 high-speed dual-core ARM processors
  • Rackmountable with optional rack kit, sold separately (call for assistance)

Technical Specification

Tech Specs

  • Type:Digital
  • Channels:16

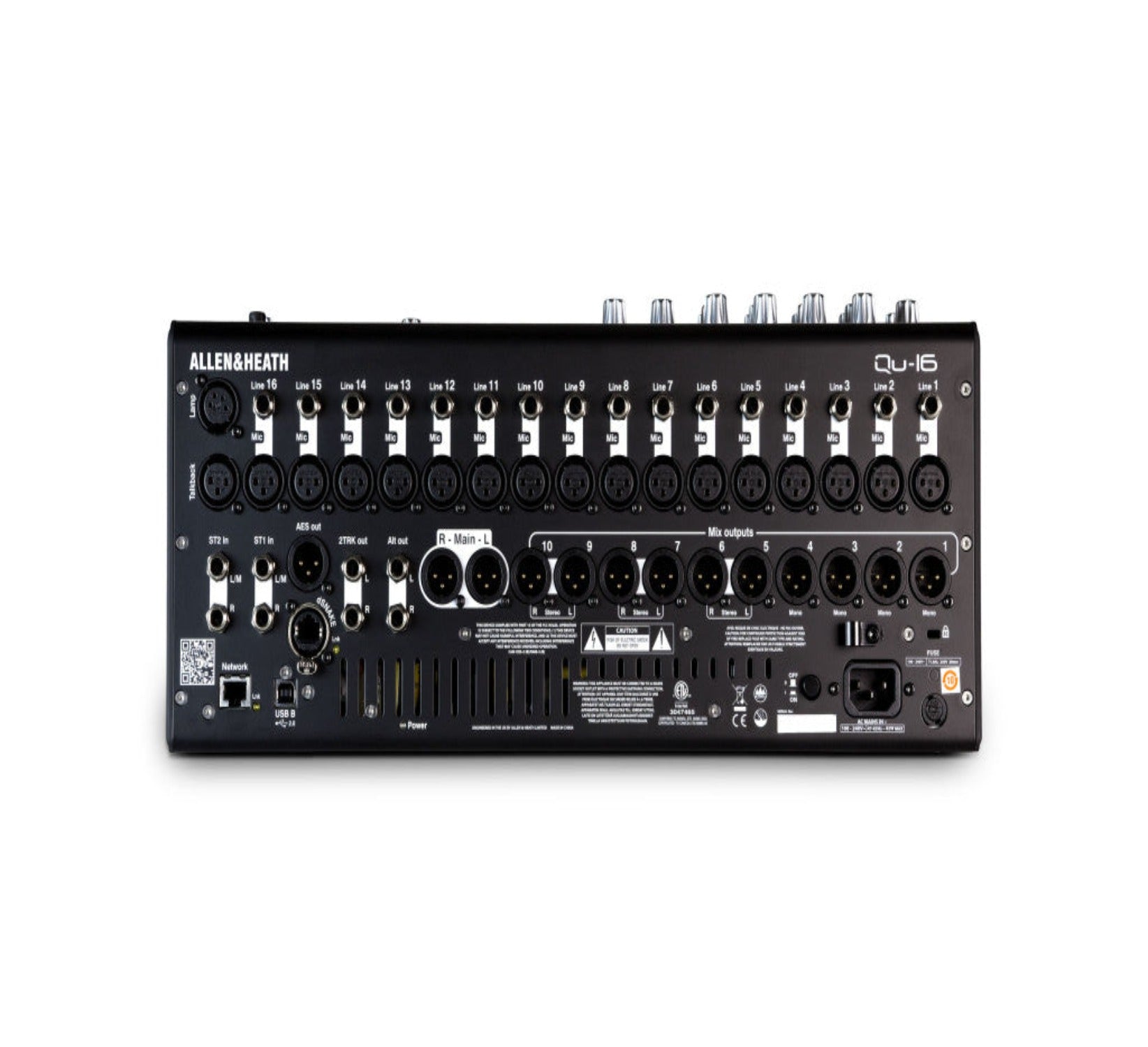

  • Inputs - Mic Preamps:16 x XLR
  • Phantom Power:16 channels
  • Inputs - Line:16 x 1/4"
  • Inputs - Other:4 x 1/4" (2 stereo in), 1 x 1/8" TRS (stereo in)
  • Outputs - Main:2 x XLR (left, right), 2 x 1/4" (2 track out), 2 x 1/4" (alt out)
  • Outputs - Other:4 x XLR (mono mix outs), 3 x XLR pairs (stereo mix outs)
  • Outputs - Digital:1 x Ethernet dSnake, 1 x XLR AES
  • Aux Sends:10 x Aux Sends
  • Busses/Groups:16-bus
  • Talkback:1 x XLR
  • Data I/O:1 x Ethernet TCP/IP Network
  • Headphones:1 x 1/4" TRS
  • USB:1 x Type B, 1 x Type A
  • Computer Connectivity:USB (24 x 22), Ethernet
  • Faders:16 x 100mm channels, 1 x 100mm master
  • EQ Bands:Parametric EQ, 28-band graphic EQ
  • Effects:Reverb, delay, chorus, phaser, flanger (4 x stereo FX returns)
  • DAW Control:MIDI DAW control driver for Mac (HUI, Mackie Control)
  • Rackmountable:Yes
  • Height:7.32" (desktop position), 7.48" (rackmounted)
  • Depth:19.52" (desktop position), 18.54" (rackmounted)
  • Width:17.32"
  • Weight:22 lbs.
