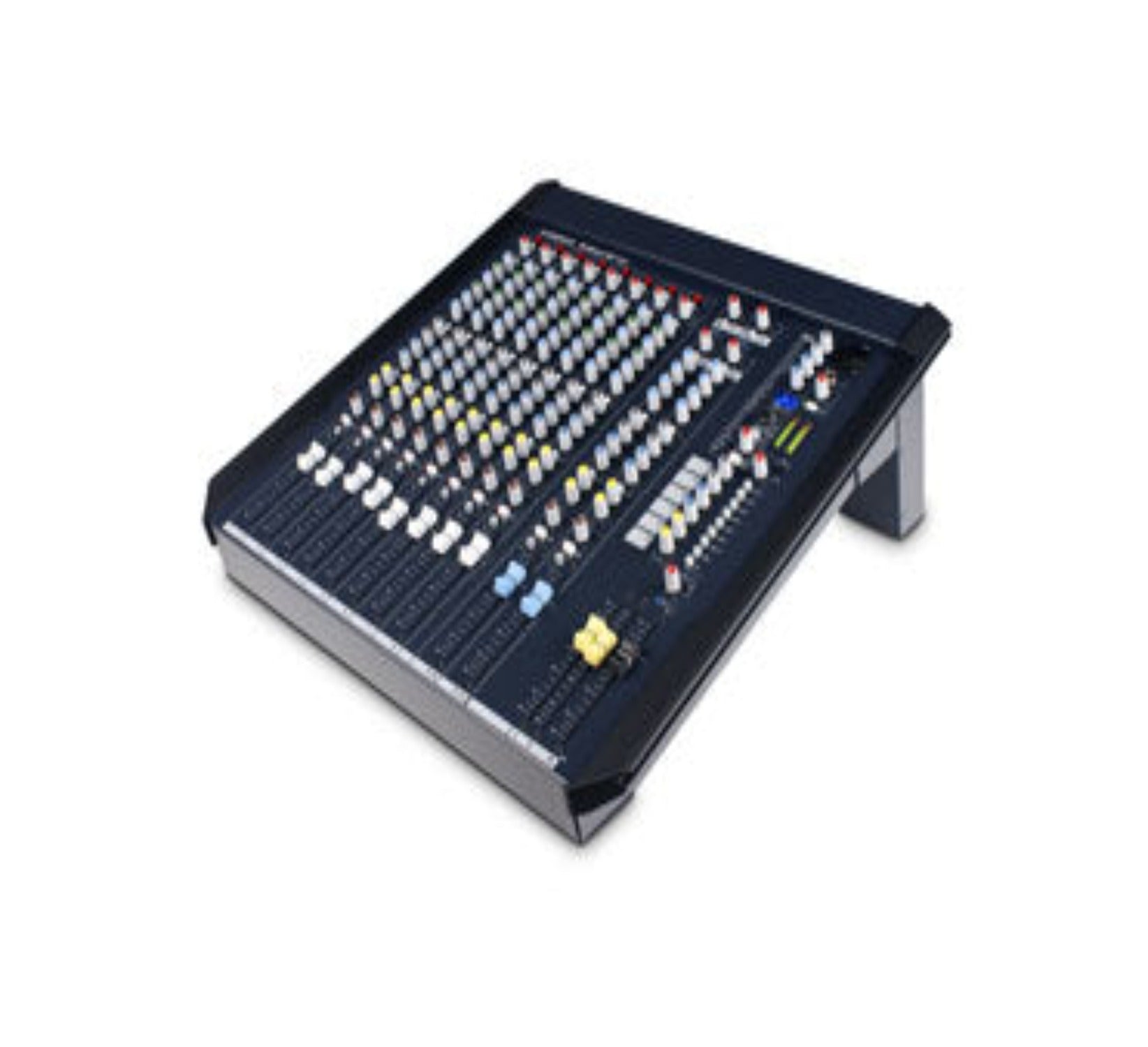

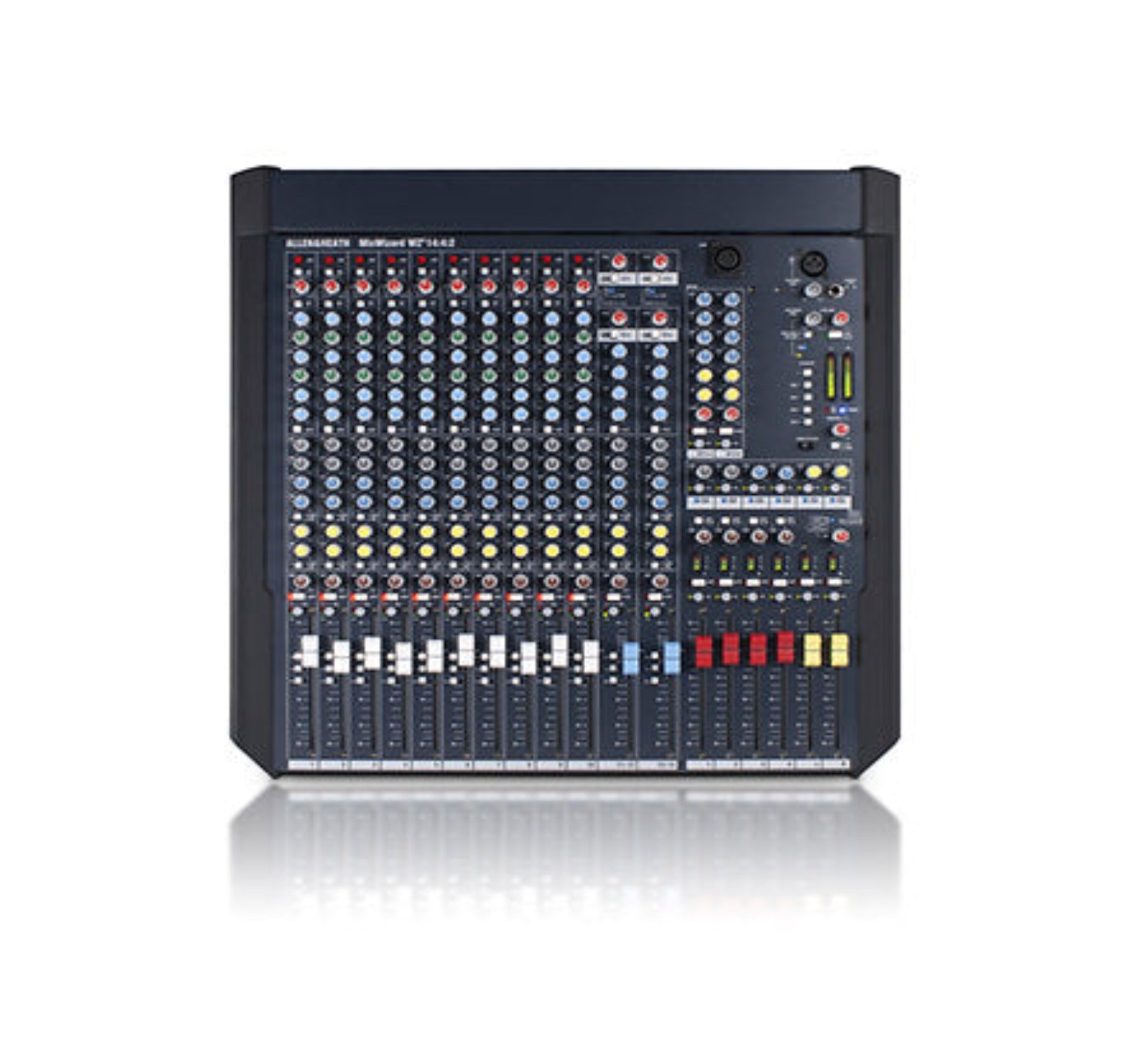

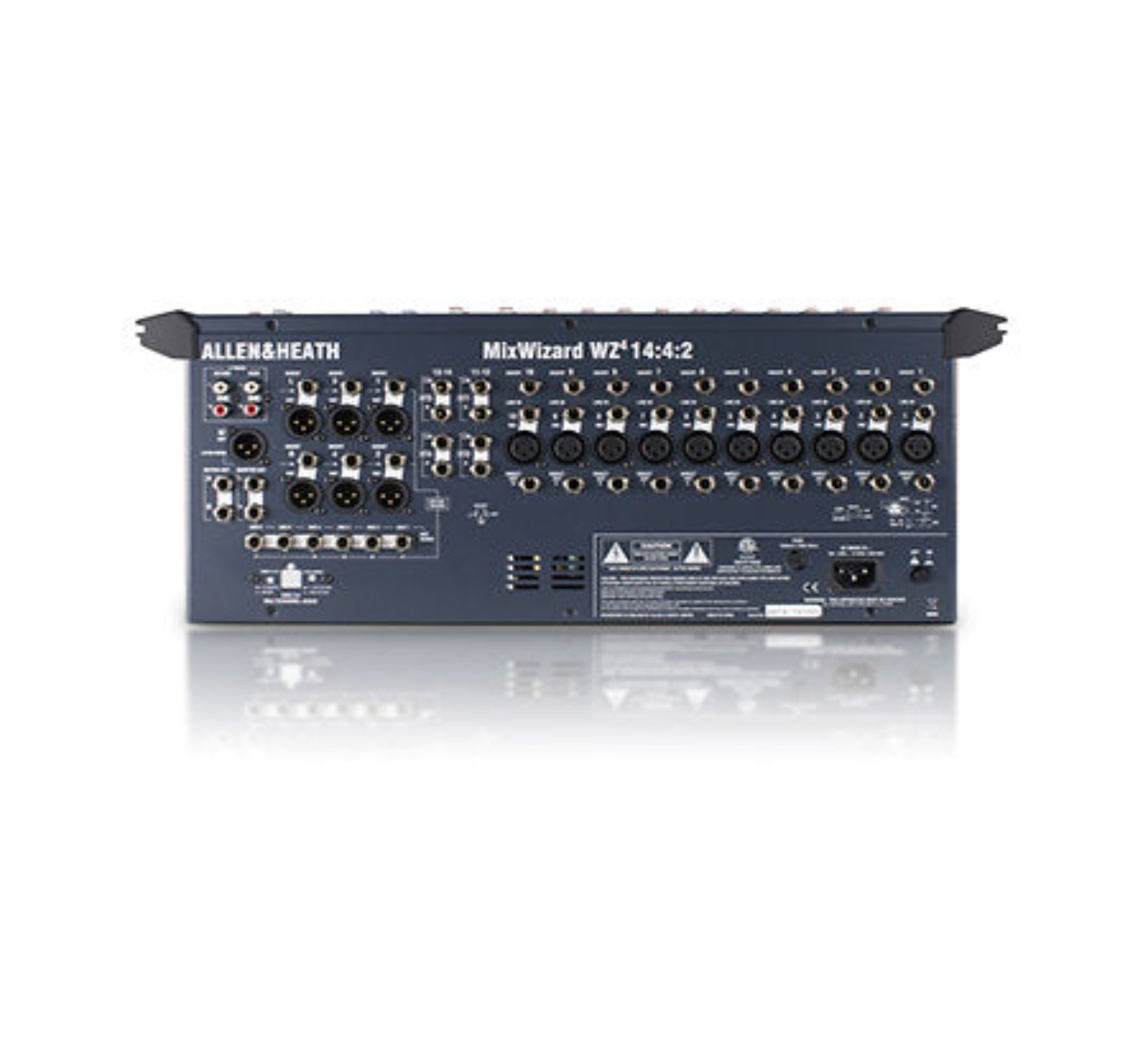

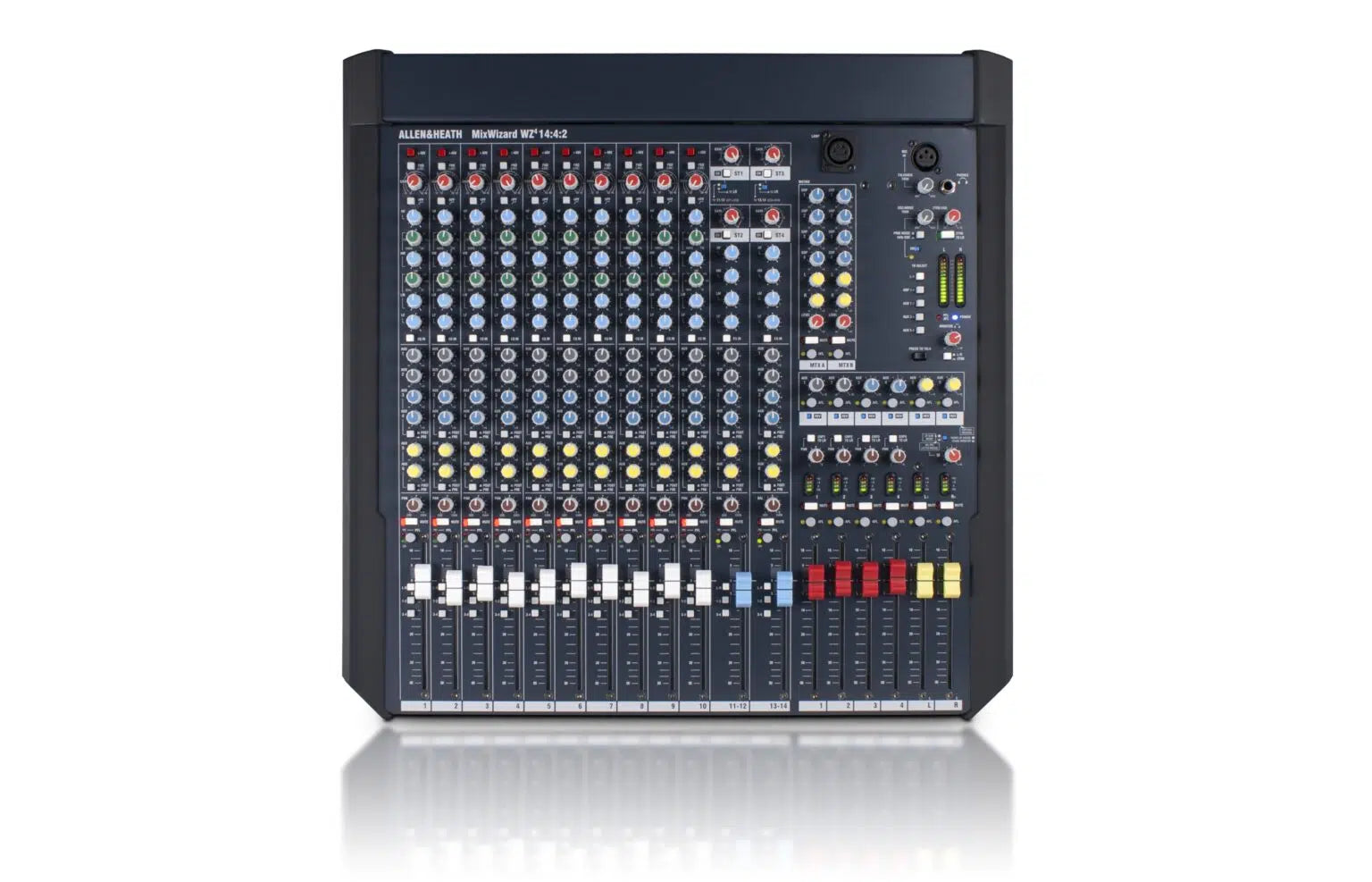

ALLEN AND HEATH MID ZED SERIES MIXWIZARD WZ4 14:4:2

ALLEN AND HEATH MID ZED SERIES MIXWIZARD WZ4 14:4:2

The MixWizard series has been at the heart of the Allen & Heath range since the mid 1990s and has earned industry standard status for its proven quality, versatility and ruggedness.

Now in its 4th generation, the latest models in the MixWizard family feature enhanced styling and functions, whilst remaining faithful to the audio and build quality standards that have secured a place for the Wizards with rental companies, live venues, houses of worship, recording studios and broadcasters.

More Information

  • 19″ Rack mountable
  • 16 mic/line inputs with balanced XLR/TRS jack, insert and direct output
  • 100mm faders
  • 4 band EQ with 2 swept mids
  • 6 Aux sends – 2x pre fade / 2x switched / 2x post fade*
  • 2 Stereo returns
  • Dedicated mono output fader – can be switched to provide an L+R mono feed for a centre or fill speaker, or sub bass feed
  • Independent A-B output for 2-track recording, monitor foldback, speaker fills etc
  • Tri-colour, 12 segment bargraph metering
  • Twin FX engines with 20 studio quality FX presets
  • +48V Phantom Power
  • Signal and Peak LEDs
  • Lamp socket
  • Footswitch connector (mutes/unmutes the ST1 FX Return)

Technical Specification

  • Type:Analog
  • Channels:16
  • Computer Connectivity:Optional USB expansion card
  • Faders:18 x 100mm
  • Inputs - Mic Preamps:16 x XLR
  • Phantom Power:16
  • Inputs - Line:16 x TRS
  • Outputs - Main:2 x XLR (Main), 1 x XLR (Main Mono)
  • Outputs - Direct:16 x TRS
  • Outputs - Other:2 x TRS (A, B Out)
  • Aux Sends:2 x Pre, 2 x Switched, 2 x Post
  • Send/Return I/O:6 x TRS (Aux Out), 2 x Stereo
  • Channel Inserts:Yes
  • Headphones:1 x 1/4"
  • Talkback:Yes
  • EQ Bands:4-band, 2 x Sweepable Mids
  • Effects:Yes
  • Rackmountable:Yes (removable side trim)
  • Height:7.7"
  • Width:20"
  • Depth:20.9"
  • Weight:35 lbs.
