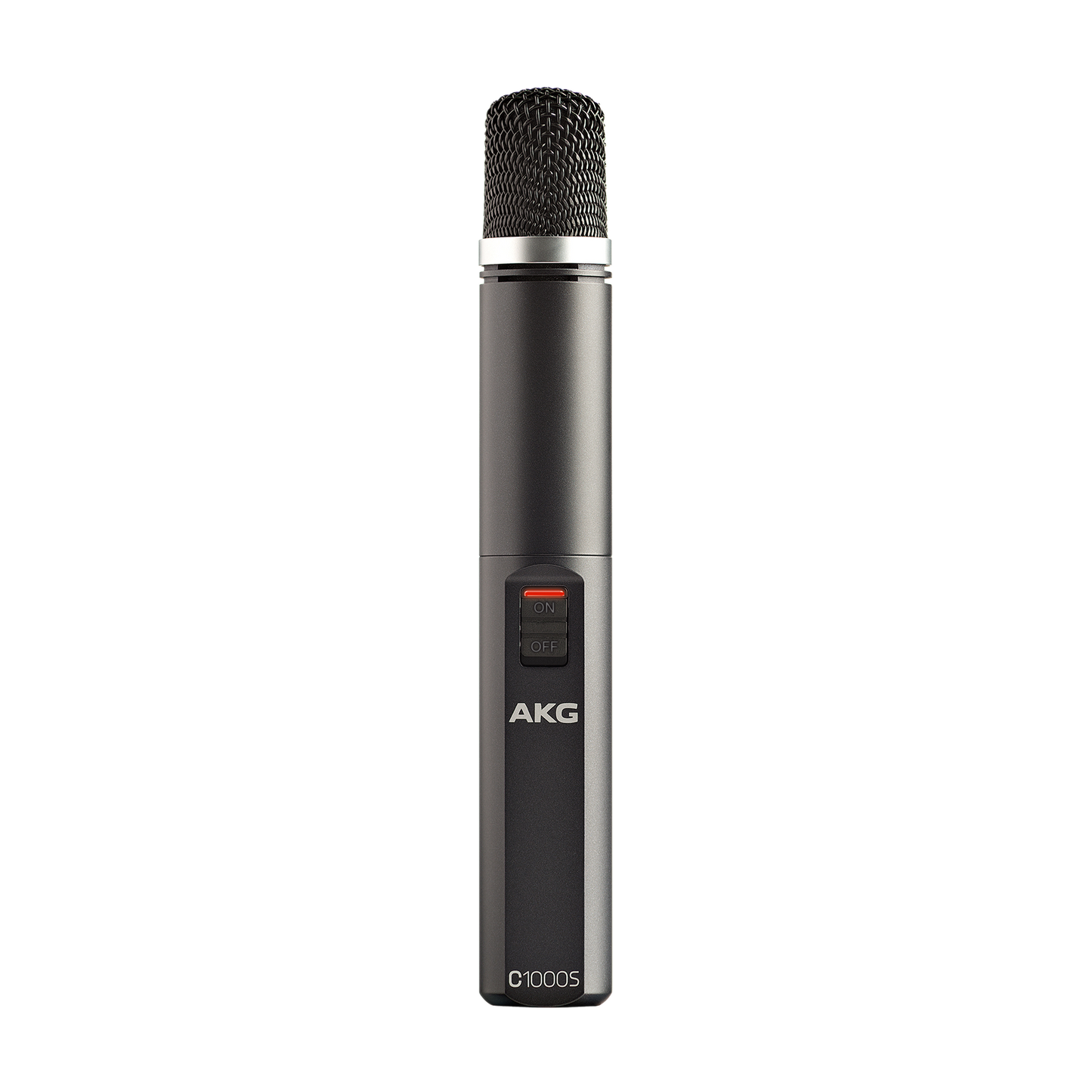

AKG C1000 S

The updated version of the C1000 S multipurpose small-diaphragm condenser microphone is extremely popular for its versatility. It is suitable for recording and live-sound applications as well as for ENG/EFP and video productions. Its gold sputtered capsule housing makes the microphone extremely rugged against humidity. If no phantom power is available, the C1000 S can be powered by two standard AA batteries for up to 120 hours. More versatile than ever before, the new C1000 S features a bass-cut switch and a switchable -10 dB pad.

The polar pattern can quickly be switched from cardioid to hyper-cardioid. Three different frequency settings are adding more clarity to speech and instrument sounds.

General Specifications

Audio frequency bandwidth : 50 - 20000 Hz

Equivalent noise level : 21 dB-A

Sensitivity : 6 mV/Pa

Signal to Noise : 73 dB-A

Preattenuation Pad : 10 dB

Bass cut filter : 80 Hz

Electrical impedance : 200 Ohms

Recommended load impedance : 2000 Ohms

Polar Patterns : Cardioid, Hypercardioid

Dimensions

Length : 229 mm

Height : 34 mm

Diameter : 34 mm

Net Weight : 320 g

Design

Body : metal

Finish : matte grayish blue

Audio Output

Type : Balanced XLR

Gender : Male

Contacts : 3-pin

Powering Interface

Voltage : 9 to 52 V

Current : 3 mA
