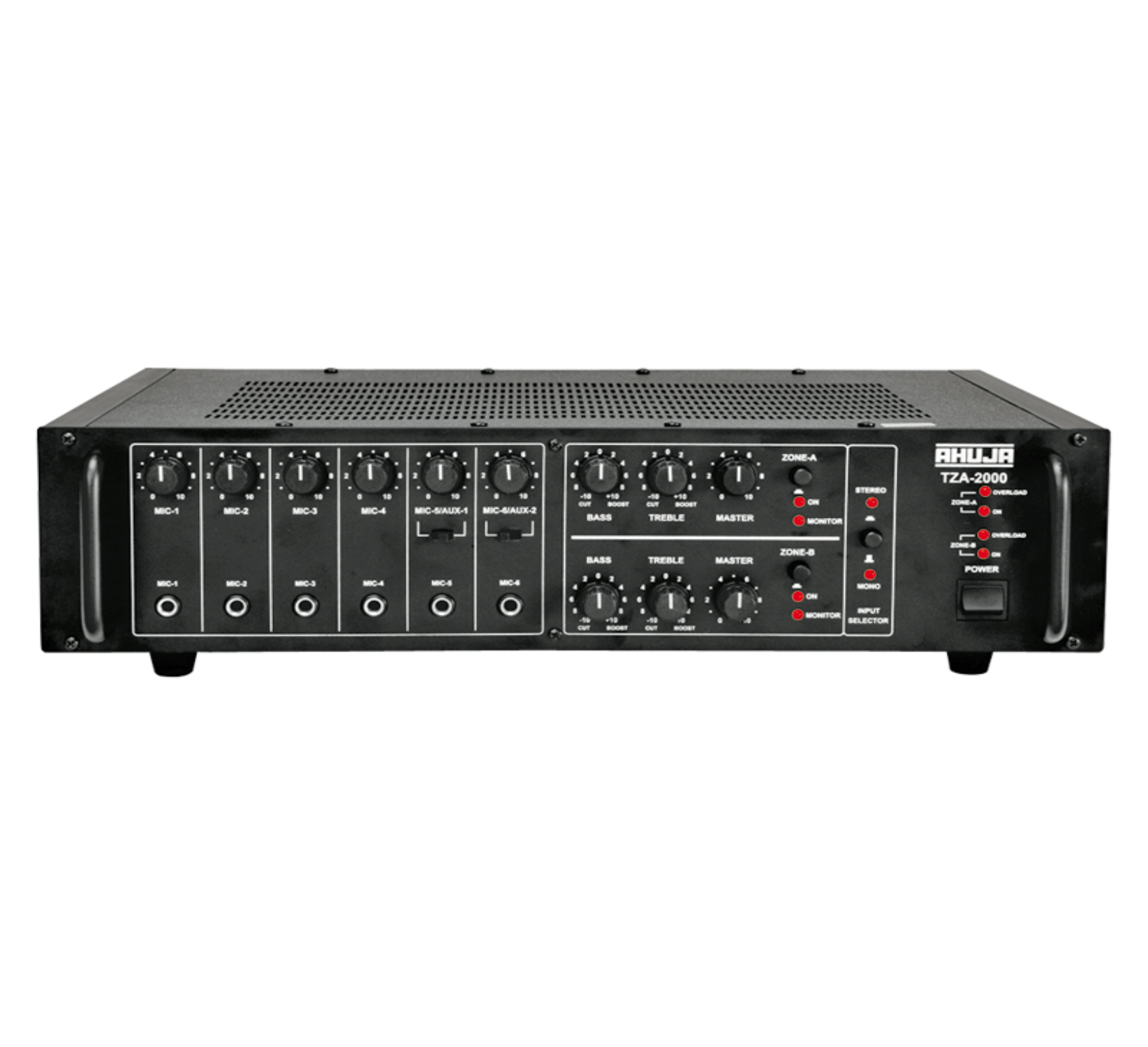

AHUJA TZA-2000

AHUJA TZA-2000

The Ahuja 100+100W 2 Zone PA Power Amplifiers are made for any public address application. With 2 zones of power, this amplifier can handle any size room. The Ahuja TZA-2000M is a 2000 watt amplifier that is made for any large venue. This amplifier has a voltage of 220-240 V and a frequency of 50-60 Hz, making it made for use in any country. The TZA-2000M also comes in a sleek black color, making it a perfect addition to any event. With a 17.400 kg weight and dimensions of 500x140x340 mm, it is made for any gaming setup.

More Information

200 WATTS

2 ZONE PA MIXER AMPLIFIER

  • 6 Mic & 2 Aux Inputs.
  • 100W+100W power output.
  • ‘Stereo’ music operation, connecting of two separate groups of speakers, line inputs & outputs, preamplifier outputs, zone On/Off facility, DC fuses at rear pannel, AC/DC operation have been provided.
  • TZA-2000 is ideal for medium sized installations such as in places of worship where two separate groups of speakers are needed to be connected.
  • User has a choice to connect both the zones to 100V (LMT) type speakers, or 100V speakers to one zone and low impedance type speakers to the other zone. Both the zones can also be connected to low impedance type speakers.

Technical Specification

Power Output 130W + 130W Max., 100W + 100W RMS at 10% THD, 90W + 90W RMS at 5% THD, 80W + 80W RMS at 2% THD
Output Regulation ≤ 2 dB, no load to full load at 1kHz
Input Channels Mono 6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, Stereo L/R 250mV/47kΩ
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Outputs Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Outputs 4Ω, 8Ω, 70V & 100V for each zone
Power Supply AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
Power Consumption AC: 420VA DC: 6.5A
Dimensions W500 × H140 × D340 mm
Weight 17.4kg
