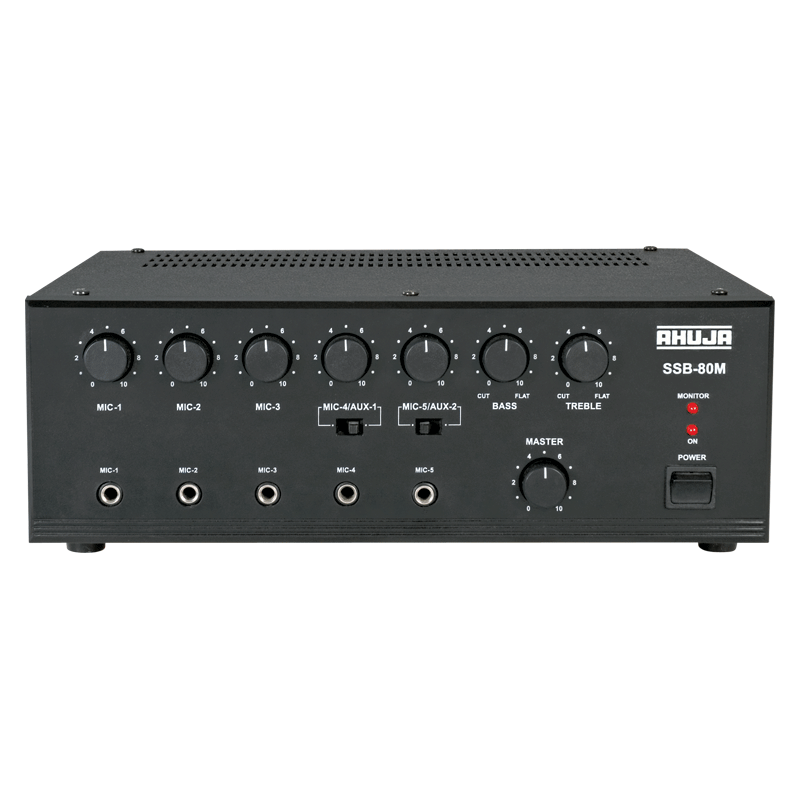

AHUJA SSB-80M

AHUJA SSB-80M

Rs. 0.00
Rs. 0.00
Sale Sold out

80W Power PA Amplifier

More Information

Features

  • 5 Mic & 2 Aux Inputs.
  • Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
  • Cut type Bass & Treble controls.
  • Instant transfer to DC power (Car Battery) if AC power fails.

Technical Specification

Power Output 110W Max., 80W RMS at 10% THD, 75W RMS at 5% THD, 60W RMS at 2% THD
Output Regulation ≤ 2 dB, no load to full load at 1kHz
Input Channels 5 × Mic 0.65mV/4.7kΩ, 2 × Aux 100mV/470kΩ
Frequency Response 65-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: -10dB at 100Hz, Treble: -10dB at 10kHz
Outputs Preamp 200mV/600Ω
Speaker Outputs 4Ω, 8Ω, 16Ω, 70V & 100V
Power Supply AC: 220-240V 50/60Hz DC: 12V (12V Car Battery)
Power Consumption AC: 180VA DC: 3A
Dimensions W355 × H133 × D285 mm
Weight 8.5kg
