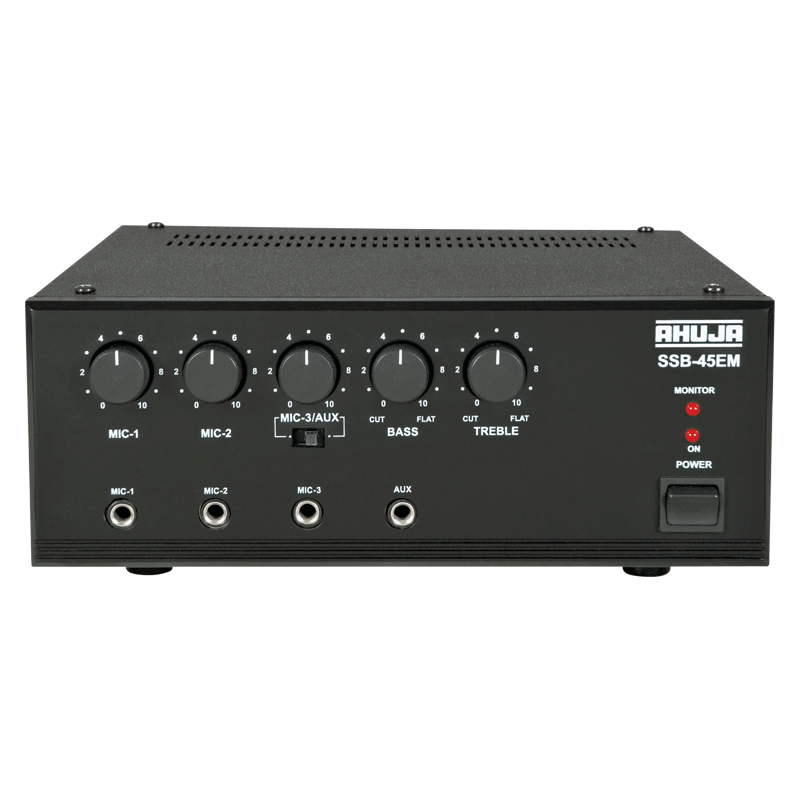

AHUJA SSB-45EM

Name: AHUJA SSB-45EM
Brand: DEV ELECTRONICS
Availability: OutOfStock

Rs. 0.00

Sale Sold out

45 WATTS
MEDIUM WATTAGE PA MIXER AMPLIFIER

More Information

Features Of Ahuja SSB-45EM

♦ Ahuja Amplifier SSB-45EM
♦ 45 WATTS
♦ Easy to Use
♦ Black Color
♦ AC & 12V DC Operation
♦ 3 Mic & 1 Aux Inputs.
♦ Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
♦ Instant transfer to DC power (Car Battery) if AC power fails.
♦ Cut type Bass & Treble Controls

Technical Specification

SPECIFICATIONS:
Brand	Ahuja
Model	Ahuja Amplifier SSB-45EM
Type	Amplifier
Power Output	64W Max., 45W RMS at 10% THD, 40W RMS at 5% THD, 30W RMS at 2% THD
Output Regulation	≤ 2 dB, no load to full load at 1kHz
Input Channels	3 × Mic 0.65mV/4.7kΩ, 1 × Aux 100mV/470 kΩ
Frequency Response	100-15,000Hz ±3dB
Signal to Noise Ratio	60dB
Tone Controls	Bass: -10dB at 100Hz, Treble: -10dB at 10kHz,
Speaker Outputs	4Ω, 8Ω, 16Ω & 100V
Power Supply	AC: 220-240V 50/60Hz, DC: 12V (12V Car Battery)
Power Consumption	AC: 110VA DC: 2A
Dimensions	W280 × H120 × D270 mm
Weight	4.8kg
Amplifier Type	Medium Power Pa Amplifiers
