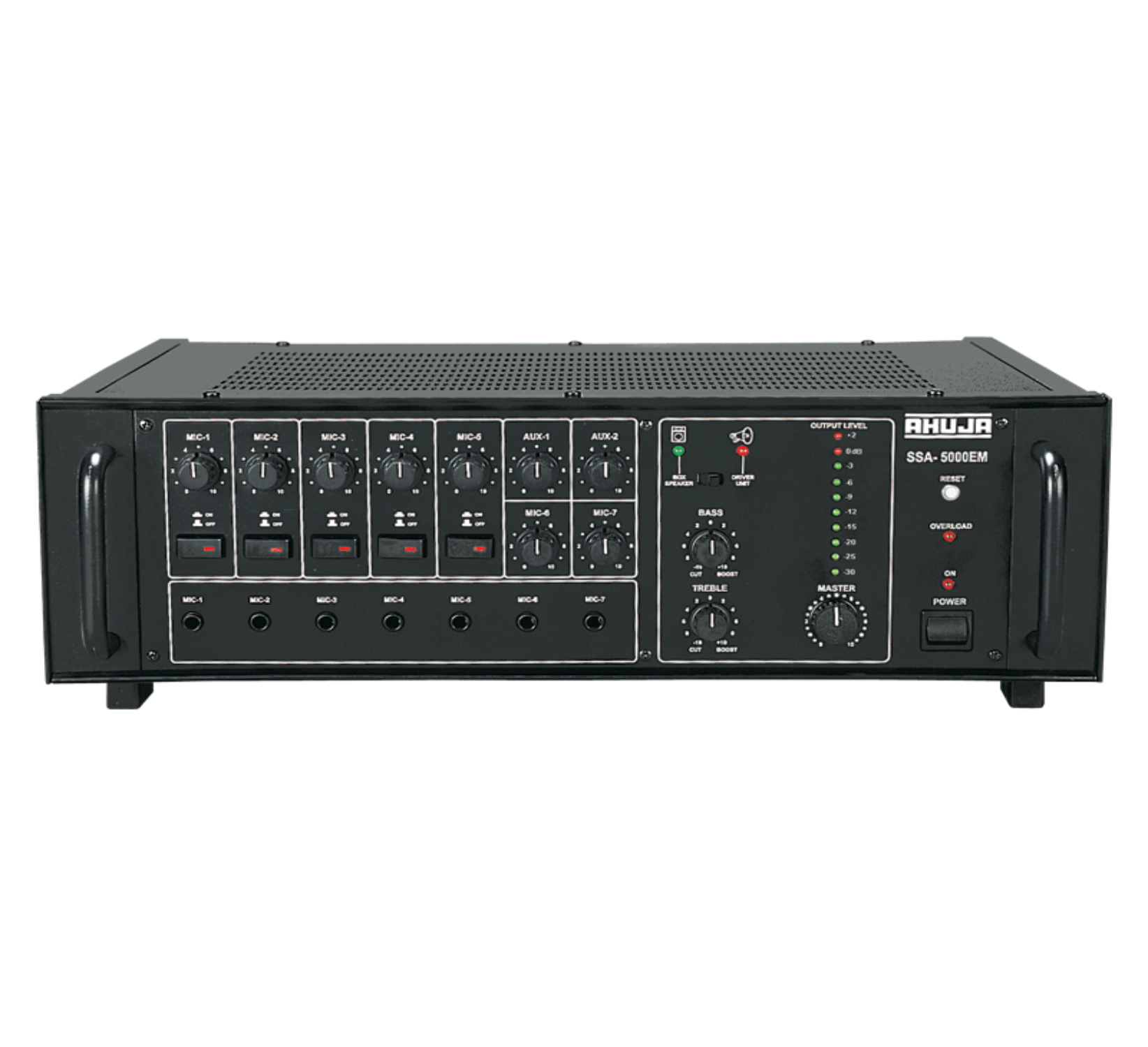

AHUJA SSA-5000EM

AHUJA SSA-5000EM

The Ahuja 500W Mixer Amplifier is a versatile and powerful amplifier that is perfect for a variety of applications. With 500 watts of power, it is perfect for powering speakers or other audio equipment. The Ahuja SSA-5000EM is a powerful and versatile PA system that is perfect for a wide range of applications. With a massive power output of 5000 Watts, this system is capable of providing amazing sound quality that will definitely make your event or performance a success. Additionally, the SSA-5000EM comes with a multitude of features such as a built-in tuner, MP3 player, and Bluetooth connectivity.

More Information

500 WATTS

High Wattage PA Mixer Amplifier

  • 7 Mic & 2 Aux Inputs.
  • Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
  • Line Input for connecting the output from any external mixer or permitting SSA-5000EM to be used as a Booster Power Amplifier.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.

Technical Specification

Power Output 750W Max., 500W RMS at 10% THD, 450W RMS at 5% THD, 415W RMS at 2% THD
Output Regulation ≤ 2 dB, no load to full load at 1kHz
Input Channels 7 × Mic 0.8mV/4.7kΩ, 2 × Aux 100mV/470 kΩ, 1 × Line 1V/50kΩ
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Outputs Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Outputs 4Ω, 8Ω, 70V & 100V
Power Supply AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)
Power Consumption AC: 1000VA DC: 8A
Dimensions W510 × H172 × D385 mm
Weight 26.7kg
