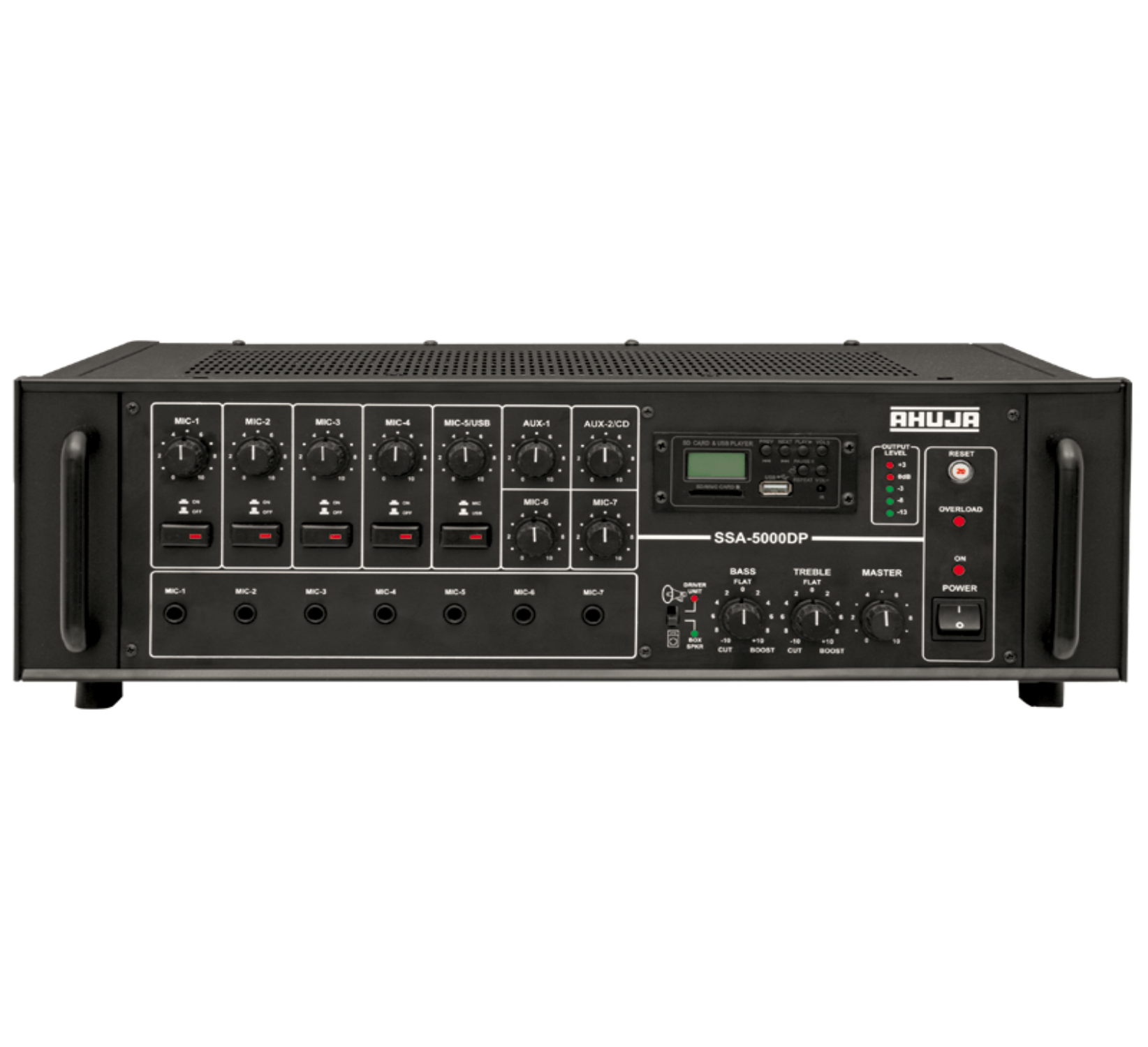

AHUJA SSA-5000DP

AHUJA SSA-5000DP

The Ahuja 500W Mixer Amplifier With USB is a versatile and powerful mixer amplifier that is perfect for a variety of applications. With 500 watts of power, it is perfect for powering a PA system or for use as a standalone amplifier. The Ahuja SSA-5000DP is a heavy duty PA system that is ideal for large venues. It has a powerful output of 27000 watts and comes with a built in amplifier. The dimensions of the speaker are 510x172x385 mm and it has a weight of 27 kg. The speaker is black in colour.

More Information

500 WATTS with Built-in Digital Player

High Wattage PA Mixer Amplifier

  • 7 Mic & 2 Aux Inputs.
  • Built-in MP3 player with remote control for USB, SD/MMC card reader.
  • Preamplifier and Line Output for connecting to a Booster Amplifier.
  • Line Input for connecting the output from any external mixer or another amplifier.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.

Technical Specification

Power Output 750W Max., 500W RMS at 10% THD 450W RMS at 5% THD, 415W RMS at 2% THD
Output Regulation ≤ 2 dB, no load to full load at 1kHz
Input Channels 7 × Mic 0.8mV/4.7kΩ, 2 × Aux 100mV/470 kΩ,1 × CD 200mV/50 kΩ, 1 × Line 1V/50kΩ
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Output Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Output 4Ω, 8Ω, 70V & 100V
Digital Player MP3 Player with USB, SD and MMC Card Reader
Power Supply AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)
Power Consumption AC: 1000VA DC: 8A
Dimensions W510 × H172 × D385 mm
Weight 27.0kg
