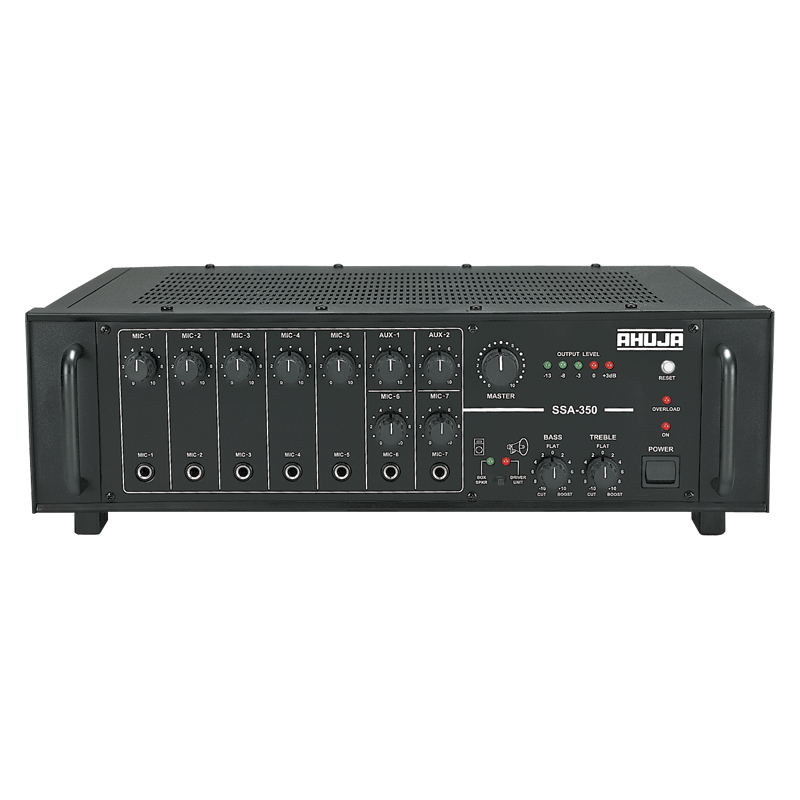

AHUJA SSA-350

AHUJA SSA-350

The Ahuja 350W Mixer Amplifier is made for any PA system. It has a built-in mixer with two microphone inputs and a music input. The Ahuja SSA-350-BK is a 350W power amplifier that is made for powering a PA system or public address system. It has a weight of 20.5 kg, dimensions of 480x160x360 mm, and voltage of 220-240 V. The frequency of the amplifier is 50-60 Hz, and it is available in black. The model number is SSA-350-BK.

More Information

350 WATTS

High Wattage PA Mixer Amplifier

  • 7 Mic & 2 Aux Inputs.
  • Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
  • Line Input for connecting the output from any external mixer or permitting SSA-350 to be used as a Booster Power Amplifier.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.

Technical Specification

Power Output 450W Max., 350W RMS at 10% THD, 320W RMS at 5% THD, 300W RMS at 2% THD
Output Regulation ≤ 2 dB, no load to full load at 1kHz
Input Channels 7 × Mic 0.8mV/4.7kΩ, 1 × Aux 100mV/470kΩ, 1 × Aux 200mV/470kΩ, 1 × Line 1V/50kΩ
Frequency Response 50-15,000Hz ±3dB
Signal to Noise Ratio 60dB
Tone Controls Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Outputs Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Outputs 4Ω, 8Ω, 70V & 100V
Power Supply AC: 220-240V 50/60Hz DC: 36V (3 × 12V Car Battery)
Power Consumption AC: 660VA DC: 6A
Dimensions W480 × H160 × D360 mm
Weight 20.5kg
