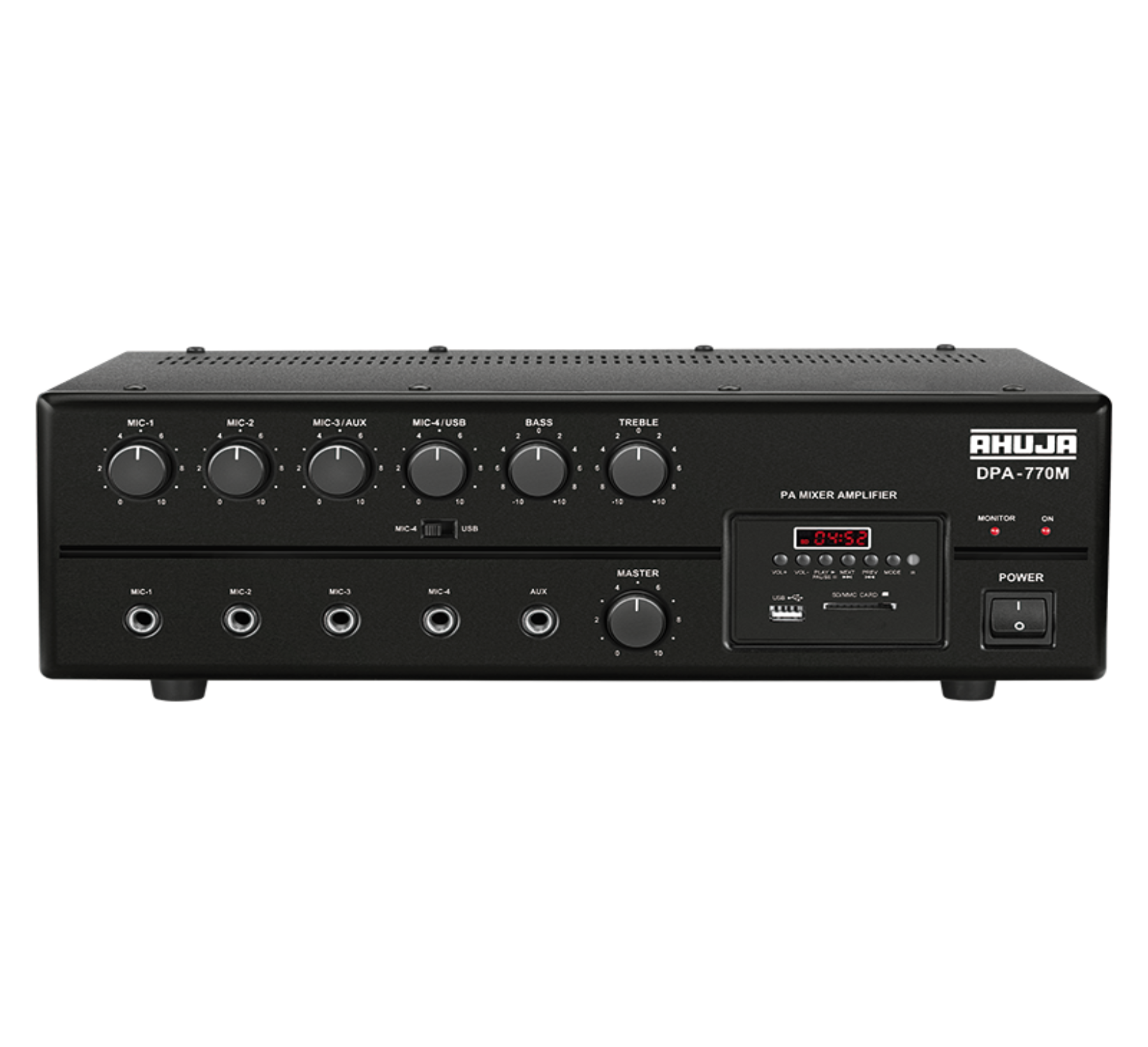

AHUJA DPA-770

Ahuja DPA770M PA Amplifier power output is 75 watts with the maximum load can be given unto 100 watts, which means multiple speakers can be connected to this amplifier, but the total wattage shouldn’t exceed 100 watts. In other words, multiple speakers can be connected unto 100 watts.

More Information

4 Mic & 1 Aux Input.
Built-in MP3 player with USB reader and remote control.
Bluetooth facility.
Line Output for connecting to a Booster Amplifier.
Cut and Boost type Bass & Treble controls.
Instant transfer to DC Power (Car Battery) if
AC power fails.

Technical Specification

Power Output	100W Max., 75W RMS at 10% THD, 70W RMS at 5% THD
Output Regulation	≤ 2 dB, no load to full load at 1kHz
Input Channels	4 × Mic. 0.6mV/4.7kΩ, 1 × Aux 100mV/330kΩ
Frequency Response	50-15,000Hz ±3dB
Signal to Noise Ratio	55dB
Tone Controls	Bass: -10dB +7dB at 100Hz, Treble: -10dB +7dB at 10kHz
Outputs	Line: 1V/3.5kΩ
Speaker Outputs	4Ω, 8Ω, 16Ω & 100V
Digital Player	MP3 Player with USB, SD, MMC Card Reader & Bluetooth
Power Supply	AC: 220-240V 50/60Hz, DC: 12-14V Car Battery
Power Consumption	AC: 170VA DC: 3A
Dimensions	W385 × H125 × D300 mm
Weight	8.80kg
