JBL SRX 835/230

JBL SRX 835/230

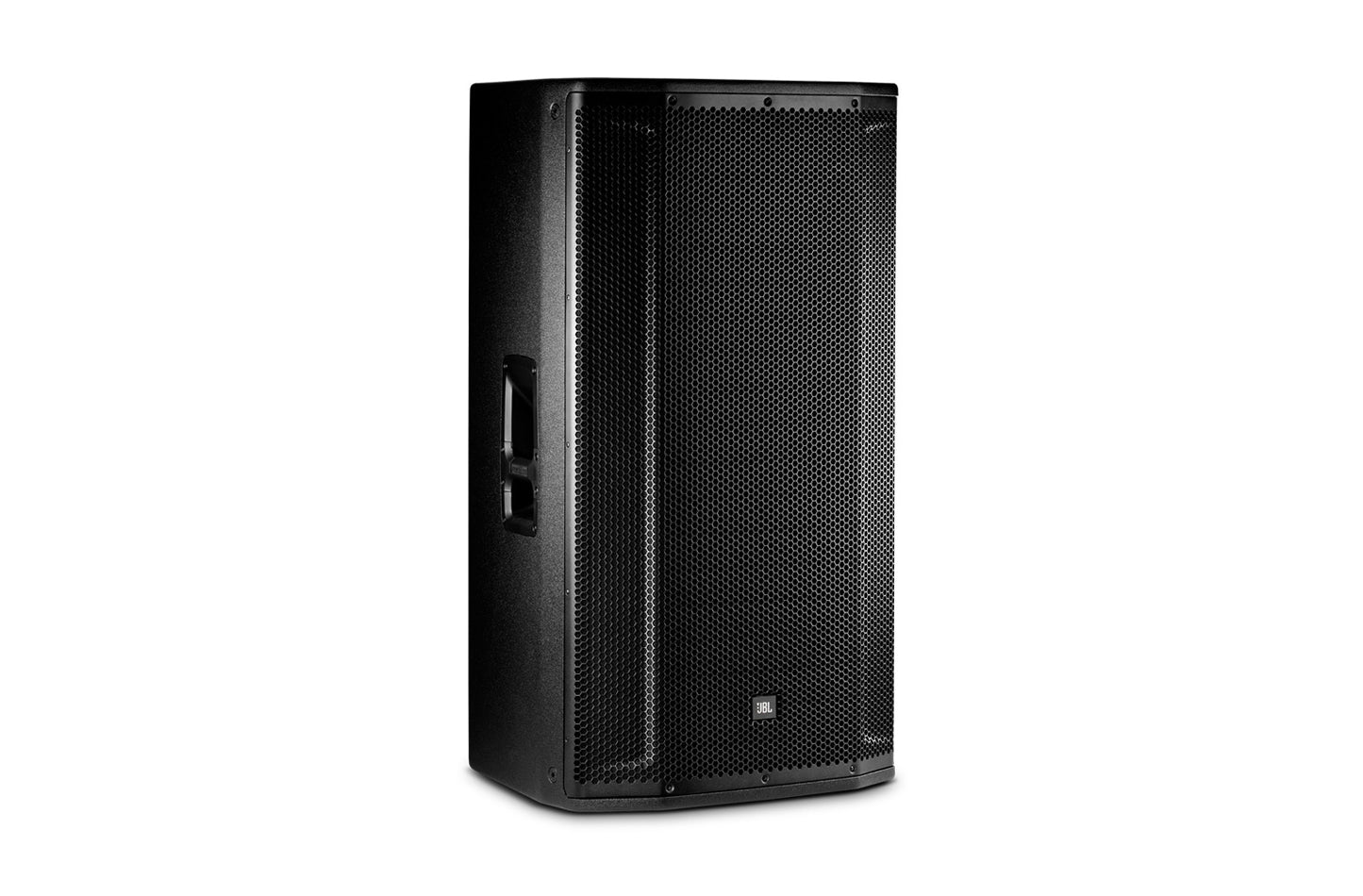

The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems. The full range 15" three-way, SRX835P features legendary JBL Drivers, proprietary 2,000 Watt Crown amplification, Crown Front-End DriveCore Technology, premium JBL user-configurable DSP, V5 Tunings compatible with Vertec and VTX touring systems, and HiQnet Network control options via iOS and Android applications. Drawing on JBL’s long history of groundbreaking technology and loudspeaker design, the SRX800 Series meets the needs of touring houses, installations, and the most demanding live sound applications ensuring they can deploy a no-compromise, all-in-one solution featuring legendary JBL sound and performance, a wide array of configurability, and compatibility with JBL’s flagship touring systems.

More Information

  • Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
  • JBL Premium Transducers
  • Drivecore Amplification By Crown
  • Full User Configurable DSP
  • Network Control
  • JBL Engineered Application Presets
  • LCD Screen and Glow in the Dark Ink on Back Panel
  • M10 Suspension Points
  • Standard 35mm Pole Cup

Technical Specification

  • System Type: Self powered 15”, three-way, bass-reflex
  • Maximum SPL (1m): 137 dB
  • Frequency Range (-10dB): 33 Hz - 21 kHz
  • Frequency Response (±3 dB): 41 Hz - 20 kHz
  • Coverage Pattern: 60° x 40°
  • Amplifier Design: Class D
  • Power Rating: 2000 W Peak
  • Dimensions (H x W x D): 476mm x 544mm x 984mm (18.74in x 21.4in x 38.74in)
  • Net Weight (each): 38.6 kg (85 lb)
  • EQ: 20 parametric EQ's, speaker delay, and 50 available slots for presets
  • Inputs: Neutrik ¼ - XLR input; Neutrik XLR Output
  • Outputs: 2 x XLR

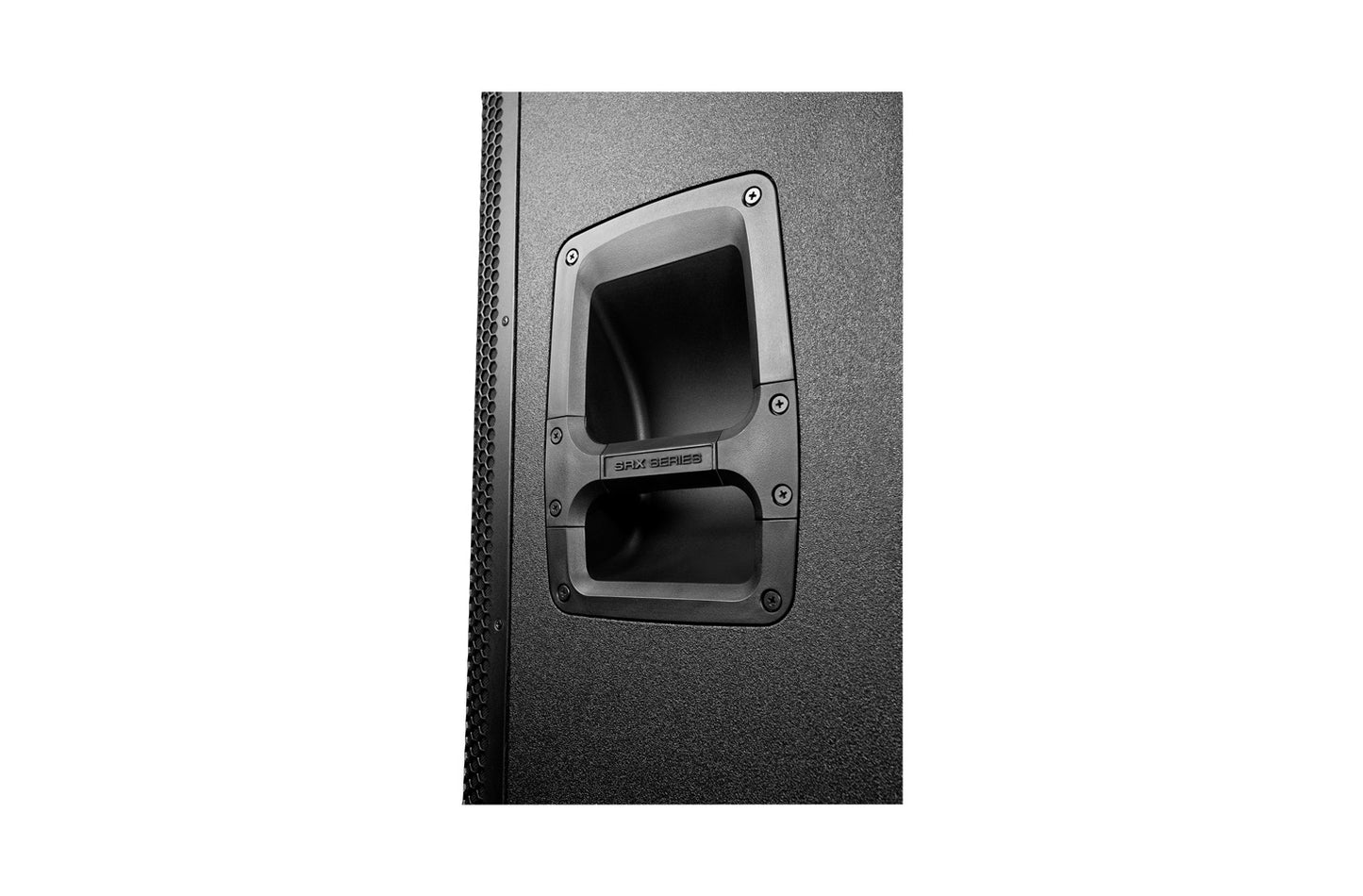

  • Enclosure: 18 mm, 11-ply Finnish birch plywood; black DuraFlex™ finish; integral recessed handles
  • Nominal Impedance: NA - amplification is integrated

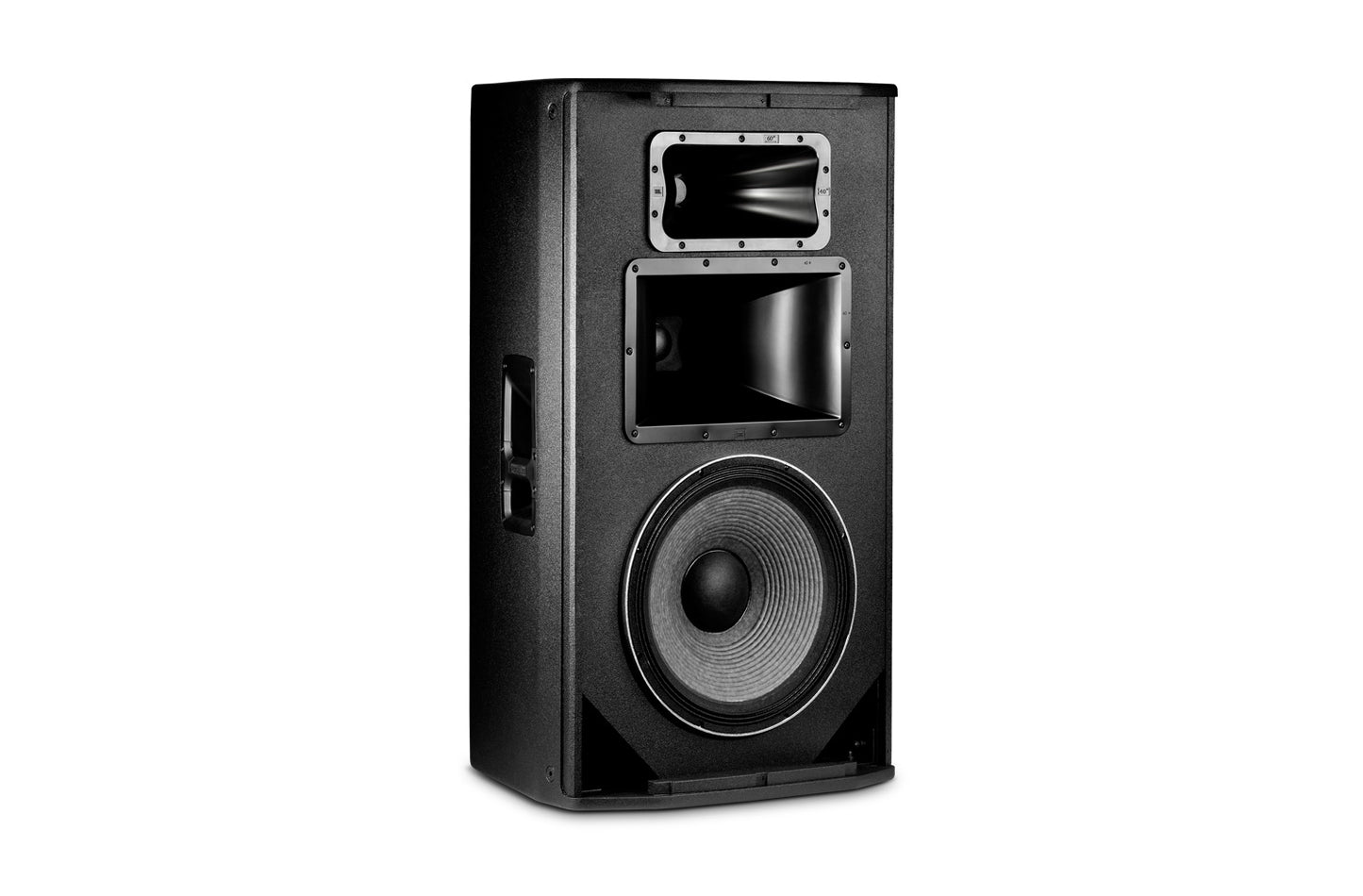

  • LF Driver: 1 x 2275F, Differential Drive®, 15" diameter
  • MF Driver: 1 x 2107H
  • HF Driver: 1 x 2432H compression driver, neodymium 76mm (3 in) diameter voice coil
  • Suspension / Mounting: Single 36 mm pole socket, 12 x M10 suspension points
