RCF SUB 8004 AS

RCF SUB 8004 AS

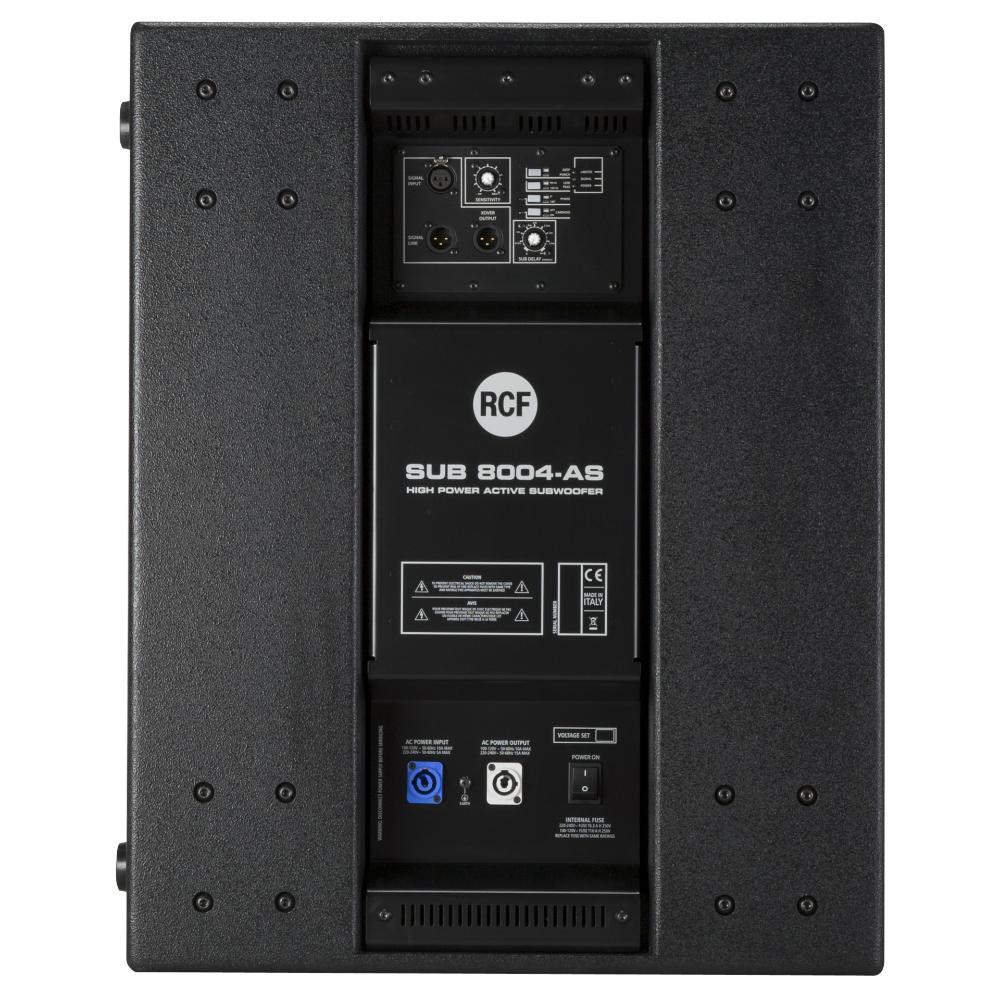

The SUB 8004-AS is one of the most powerful 18” subwoofers in pro-sound category. Featuring a high power, hypervented 18” woofer, with 4” inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. Powered by a 1250W digital amplifier module, the SUB 8004-AS can perform in the most demanding situations. The input board includes volume control, deep/punch switch, high pass switch, phase switch, cardioid, time delay.

More Information

  • 2500 Watt Peak, 1250 Watt RMS
  • 136 dB max SPL
  • 30 Hz - 120 Hz frequency response

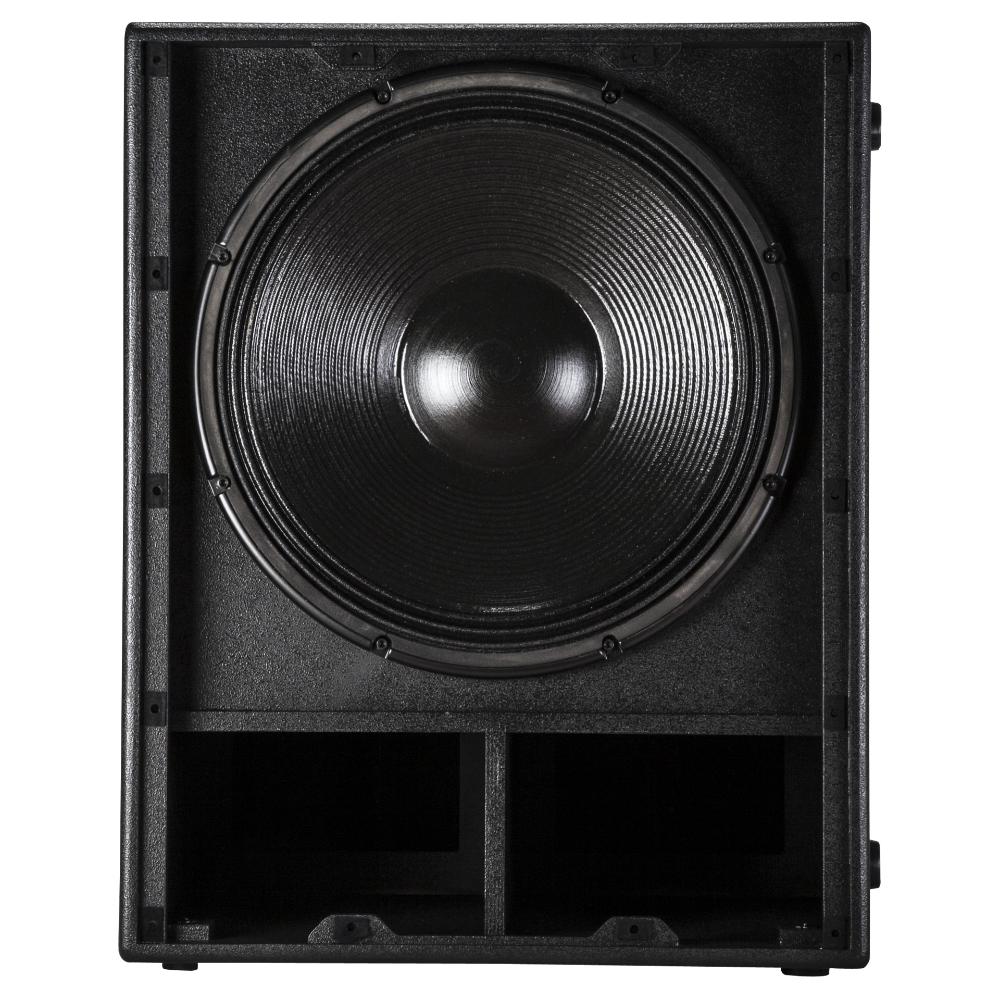

  • 18" Woofer, 4.0" voice coil vented woofer
  • DSP controlled Input section with selectable presets
  • Delay control
  • Baltic birch tour grade cabinet
  • Compatible with NXL23-A (stacking)
  • Compatible with NXL24-A (stacking)
  • Multiple configurations with HDL 10-A and HDL 20-A

Technical Specification

  • ACOUSTICAL SPECIFICATIONS
  • Frequency Response: 30 Hz ÷ 120 Hz
  • TRANSDUCERS
  • Woofer: 18'', 4.0'' v.c
  • INPUT/OUTPUT SECTION
  • Input signal: bal/unbal
  • Input connectors: XLR
  • Output connectors: XLR
  • Input sensitivity: -2 dBu/+4 dBu
  • PROCESSOR SECTION
  • Hi-Pass Frequencies: 120 Hz
  • Low-Pass Frequencies: 90 Hz
  • Protections: Thermal, RMS
  • Limiter: Fast Limiter
  • Controls: Xover, Phase switch, Depp/Punch, Output Delay Settings, Cardioi
  • POWER SECTION
  • Total Power: 2500 W Peak, 1250 W RMS
  • Low frequencies: 2500 W Peak, 1250 W RMS
  • Cooling: Convection
  • Connections: Powercon IN/OUT
  • PHYSICAL SPECIFICATIONS
  • Color: Black
  • SIZE
  • Height: 700 mm / 27.56 inches
  • Width: 558 mm / 21.97 inches
  • Depth: 700 mm / 27.56 inches
  • Weight: 56 kg / 123.46 lbs
  • SHIPPING INFORMATION
  • Package Height: 761 mm / 29.96 inches
  • Package Width: 751 mm / 29.57 inches
  • Package Depth: 612 mm / 24.09 inches
  • Package Weight: 60 kg / 132.28 lbs
