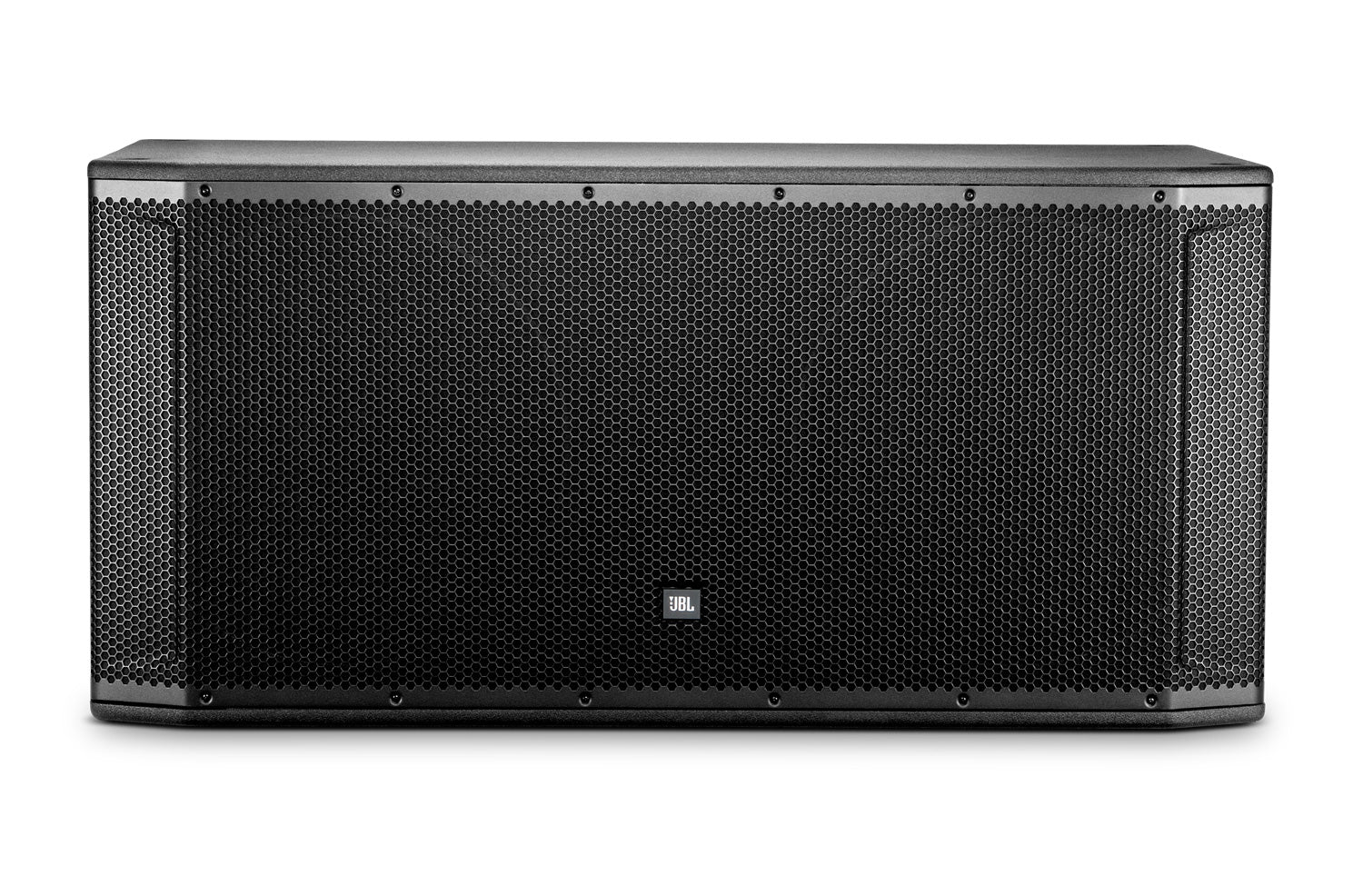

JBL SRX 828/230

JBL SRX 828/230

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

More Information

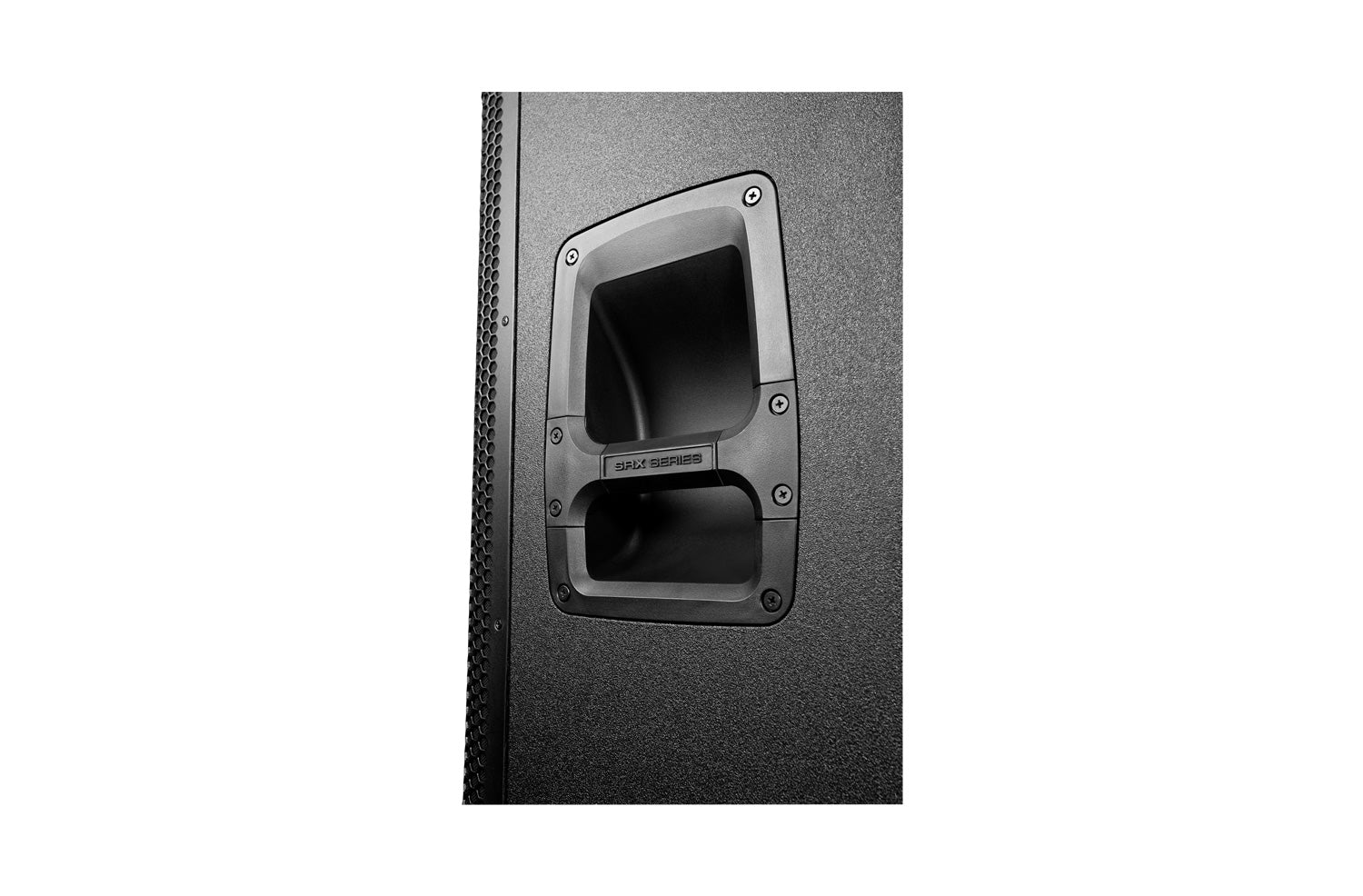

  • Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
  • JBL Premium Transducers
  • Drivecore Amplification By Crown
  • Full User Configurable DSP
  • Network Control
  • JBL Engineered Application Presets
  • LCD Screen and Glow in the Dark Ink on Back Panel
  • Accepts JBL WK-4S Caster Kit
  • 145 lb/65.9 kg

Technical Specification



MODEL SRX 818 SP SRX 828 SP
System Type Self powered 18”, subwoofer system Self powered dual 18”, subwoofer system
Maximum SPL (1m) 135 dB 141 dB
Frequency Range (-10dB) 29 Hz - 150 Hz 29 Hz - 150 Hz
Frequency Response (-3 dB) 35 Hz - 120 Hz 35 Hz - 120 Hz
Amplifier Design Class D Class D
Power Rating 1000 W Peak 2000 W Peak
Dimensions (H x W x D) 683mm x 684mm x 575mm (26.89in x 26.92in x 22.62in) 681mm x 1205mm x 574mm (26.79in x 47.42in x 22.57in)
Net Weight (each) 39.5 kg (87 lb) 65.9 kg (145 lb)
EQ 20 parametric EQ's, speaker delay, and 50 available slots for presets 20 parametric EQ's, speaker delay, and 50 available slots for presets
Inputs Neutrik ¼ - XLR input; Neutrik XLR Output Neutrik ¼ - XLR input; Neutrik XLR Output
Outputs 2 x XLR 2 x XLR
Enclosure 18 mm Duraflex coated plywood 18 mm Duraflex coated plywood

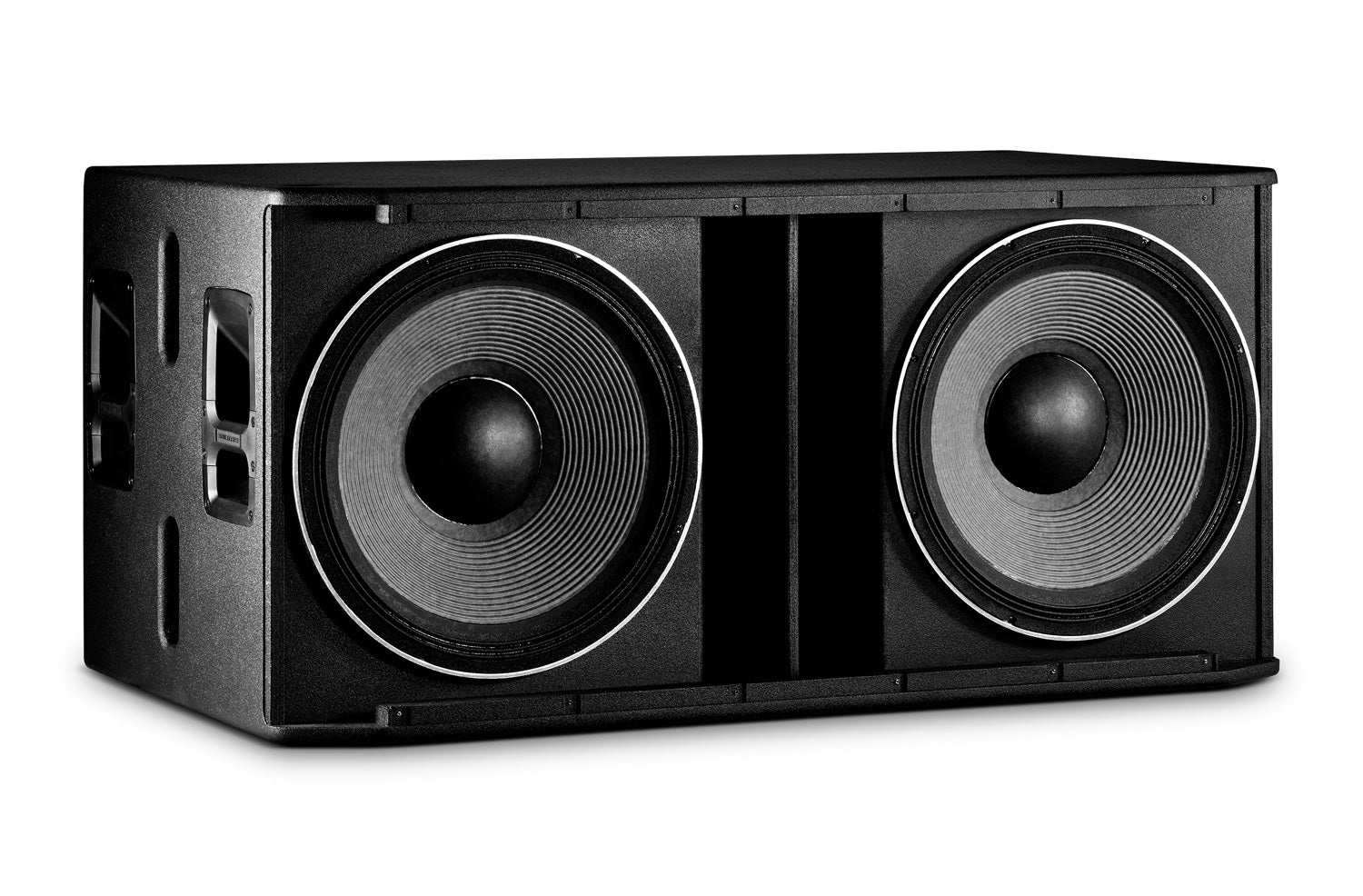

LF Driver 1 x 18 in Differential Drive® 2 x 18 in Differential Drive®
System Processing DSP based, resident in Input Module DSP based, resident in Input Module
