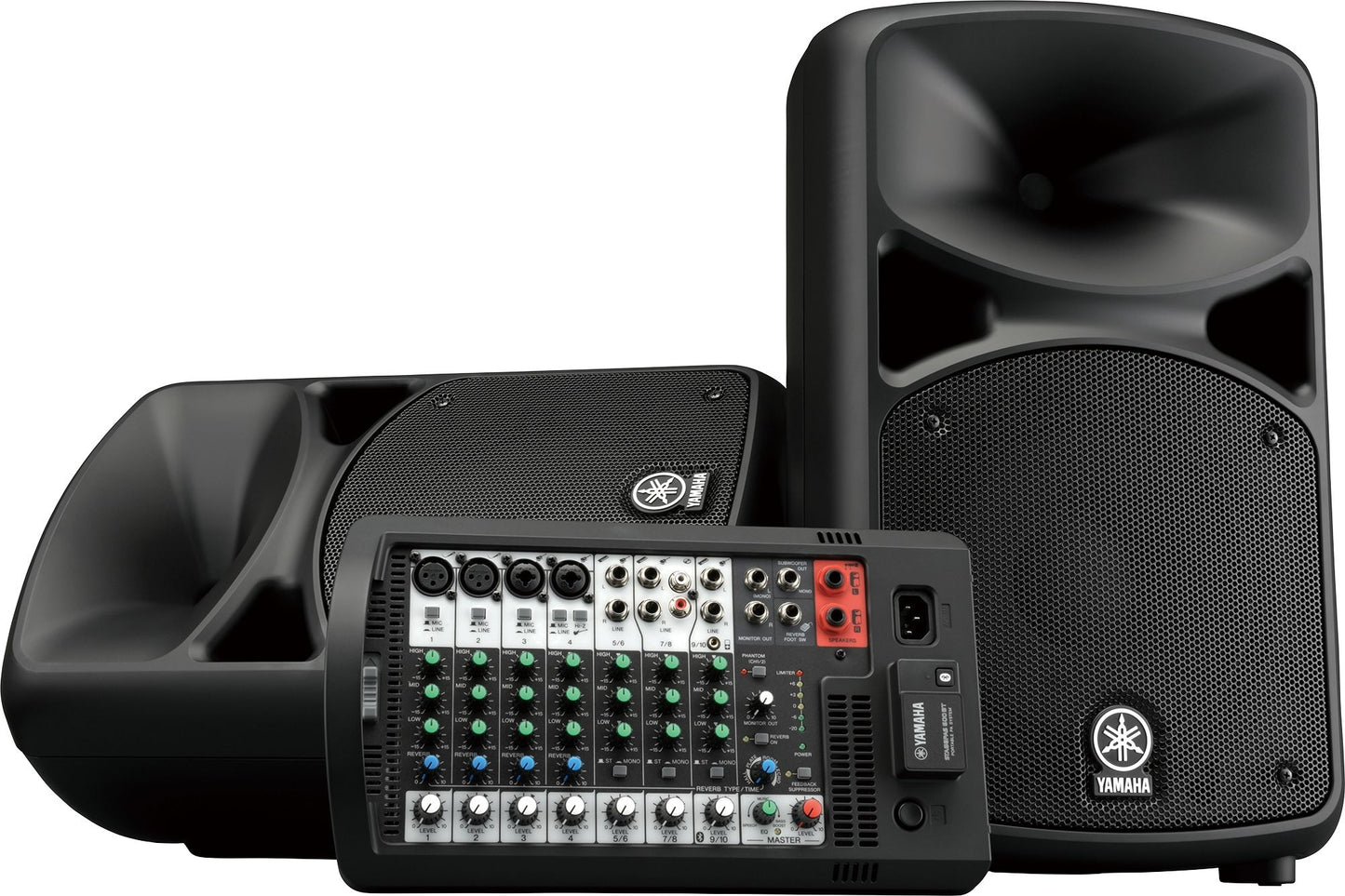

YAMAHA STAGEPAS 600 BT

YAMAHA STAGEPAS 600 BT

680-watt, portable PA system with 10-channel powered mixer, two 10" speakers, a Bluetooth® input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.

More Information

  • 680W (340W + 340W) power output
  • High quality speakers (LF:10" woofer/ HF:1.4" voice coil compression driver)
  • Detachable 10-channel mixer (4 mono/line + 6 mono / 3 stereo line)
  • Bluetooth® audio streaming
  • 1-Knob Master EQ™ with virtual bass boost
  • High resolution SPX digital reverbs (4 types, parameter control)
  • Onboard feedback suppressor
  • Great-sounding 3-band channel EQ
  • Switchable stereo/ mono inputs
  • Hi-Z (high impedance) inputs
  • Phantom power
  • Monitor and Subwoofer outputs
  • Optional reverb footswitch

Technical Specification

MODEL 400 BT 600 BT
Type Powered mixer with 2 passive speakers Powered mixer with 2 passive speakers
Mixing capability Mixing channels 8 10
Input channel functions Hi-Z switch: CH4, ST/MONO switch: CH5/6-7/8 Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10
Output channel functions Feedback suppressor, 1-Knob Master EQ™ Feedback suppressor, 1-Knob Master EQ™
I/O Inputs 4 mono mic / line + 4 mono / 2 stereo line 4 mono mic / line + 6 mono / 3 stereo line
Phantom power +30V (CH1, 2) +30V (CH1, 2)
Outputs SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF
Bluetooth Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m
Control and others Reverb foot switch Reverb foot switch
Input Channel Function Hi-Z CH4 CH4
EQ HIGH HIGH Shelving: 8 kHz HIGH Shelving: 8 kHz
EQ LOW LOW Shelving: 100 Hz LOW Shelving: 100 Hz
EQ MID - MID peaking: 2.5 kHz
On-board processors DSP SPX digital reverb (4 program, parameter control) SPX digital reverb (4 program, parameter control)
On-board amplifiers Maximum output power @4ohms 400W (200 W + 200 W) (Dynamic), 360W (180W + 180W) (Continuous) 680W (340 W + 340 W) (Dynamic), 560W (280W + 280W) (Continuous)
General specifications
Speaker type Two-way bass-relfex speakers Two-way bass-relfex speakers
Frequency range (-10dB) 55 Hz - 20 kHz 55 Hz - 20 kHz
Nominal coverage H 90° 90°
V 60° 60°
Floor Monitor Angle 50° 50°
Components LF 8" (20 cm) cone 10" (25 cm) cone
HF 1" (2.54 cm) voice coil compression driver 1.4" (3.56 cm) voice coil compression driver
Maximum output level (1m; on axis) 125 dB SPL / speaker 129 dB SPL / speaker
Power requirements 100 V - 240 V 50 Hz/60 Hz 100 V - 240 V 50 Hz/60 Hz
Power consumption 30 W (Idle), 70 W (1/8 Power) 35 W (Idle), 100 W (1/8 Power)
Pole socket 34.8-35.2 mm pole socket with StageLok™ 34.8-35.2 mm pole socket with StageLok™
Accessories Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties
Options Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF
Others Handle: 1 x Top Handle: 1 x Top
Dimensions (W x H x D) Speaker 289 x 472 x 275 mm, Mixer 308 x 180 x 116 mm Speaker 335 x 545 x 319 mm, Mixer 348 x 197 x 135 mm
Weight 18.3 kg (40.3 lbs) (2 x Speaker 7.7kg + Mixer 2.9kg) 25.6 kg (56.4 lbs) (2 x Speaker 10.9 kg + Mixer 3.8 kg)
