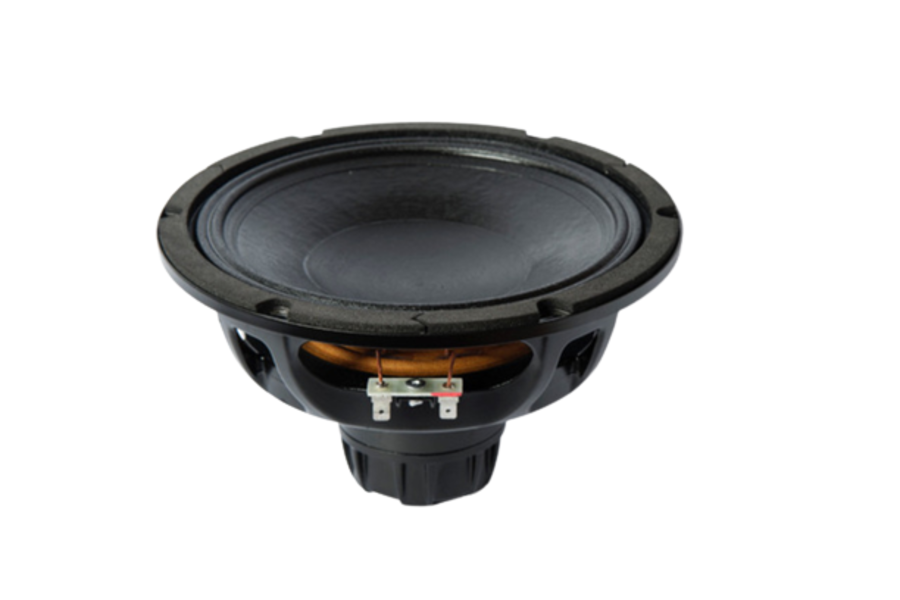

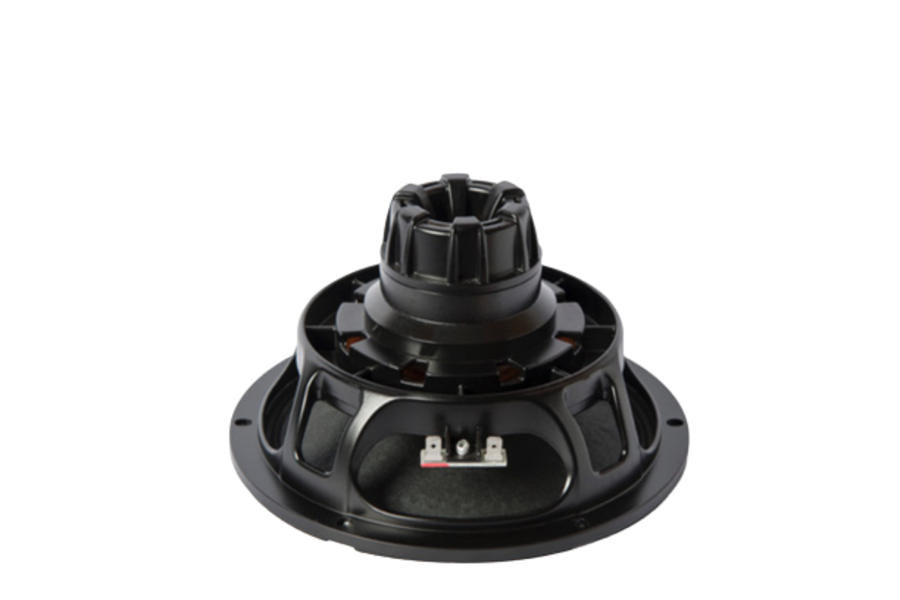

18 Sound 8 NTLW2000

The 8NTLW2000 represents the latest 18sound technology for high quality, low distortion applications. The smallest Tetracoil motor structure of the family uses the same concept to maximize its benefits in terms of thermal dissipation and Bl symmetry to a wide frequency band, making the 8NTLW2000 the perfect component both as a woofer and a midbass.

More Information

Tetracoil ultra linear motor
350W AES power handling
51 mm (2 in) CCAW voice coil
Extremely balanced BL shape for maximum SPL
Optimized thermal conductivity
Maximum linearity and inductance symmetry for extended mid-band clarity
Ideal for super light line array applications

Technical Specification

Nominal Impedance: 8 Ω
Minimum Impedance: 5.8 Ω
Nominal Power Handling: 1350 W
Continuous Power Handling: 2700 W
Sensitivity: 397.5 dB
Frequency Range: 70 - 4500 Hz
Voice Coil Diameter: 51 mm (2.0 in)
Winding Material: aluminum
Winding Depth: 13.0 mm (0.51 in)
Magnetic Gap Depth: 8.5 mm (0.33 in)
Overall Diameter: 8.27 in (210 mm)
Bolt Circle Diameter: 7.74 in (196 mm)
Baffle Cutout Diameter: 7.32 in (186.0 mm)
Depth: 4.76 in (121 mm)
Flange and Gasket Thickness: 0.35 in (9 mm)
Net Weight: 3.31 lb (1.5 kg)
Shipping Weight: 3.97 lb (1.8 kg)
