YAMAHA Tio1608-D

Name: YAMAHA Tio1608-D
Brand: SOUND4U
Availability: InStock

Product variants

Digital Stage Box for Yamaha TF Consoles

The Yamaha Tio1608-D stage box provides 16 inputs and eight outputs for your TF series console, putting your I/O onstage where it's most convenient. Connect to your console with any standard Cat 5e LAN cable for high-quality, low-latency audio transfer. For more I/O, you can connect up to three Tio1608-D boxes onstage for 48 inputs and 24 outputs. And live sound engineers at Sweetwater love the ability to control the Tio1608-D preamplifiers directly from a TF series console. For a high-performance stage box solution, check out the Yamaha Tio1608-D.

More Information

Yamaha Tio1608-D Stage Box Features at a Glance:

Digital stage box for Yamaha TF series consoles
16 high-quality mic preamps are controllable from your console
Connect up to 3 simultaneously for 48 inputs and 24 outputs
TF mixers require a NY64-D Dante interface card to connect to this stage box (sold separately)
Connects to TF series consoles via standard Cat 5e LAN cable (sold separately)

Technical Specification

Tech Specs

Type:Digital Stage Box
Compatibility:Yamaha TF Mixers with Dante Cards
Channels:16 x 8
Inputs - Mic Preamps:16 x XLR-1/4" combo (mic/line)
Outputs - Main:8 x XLR (line +4dBu)

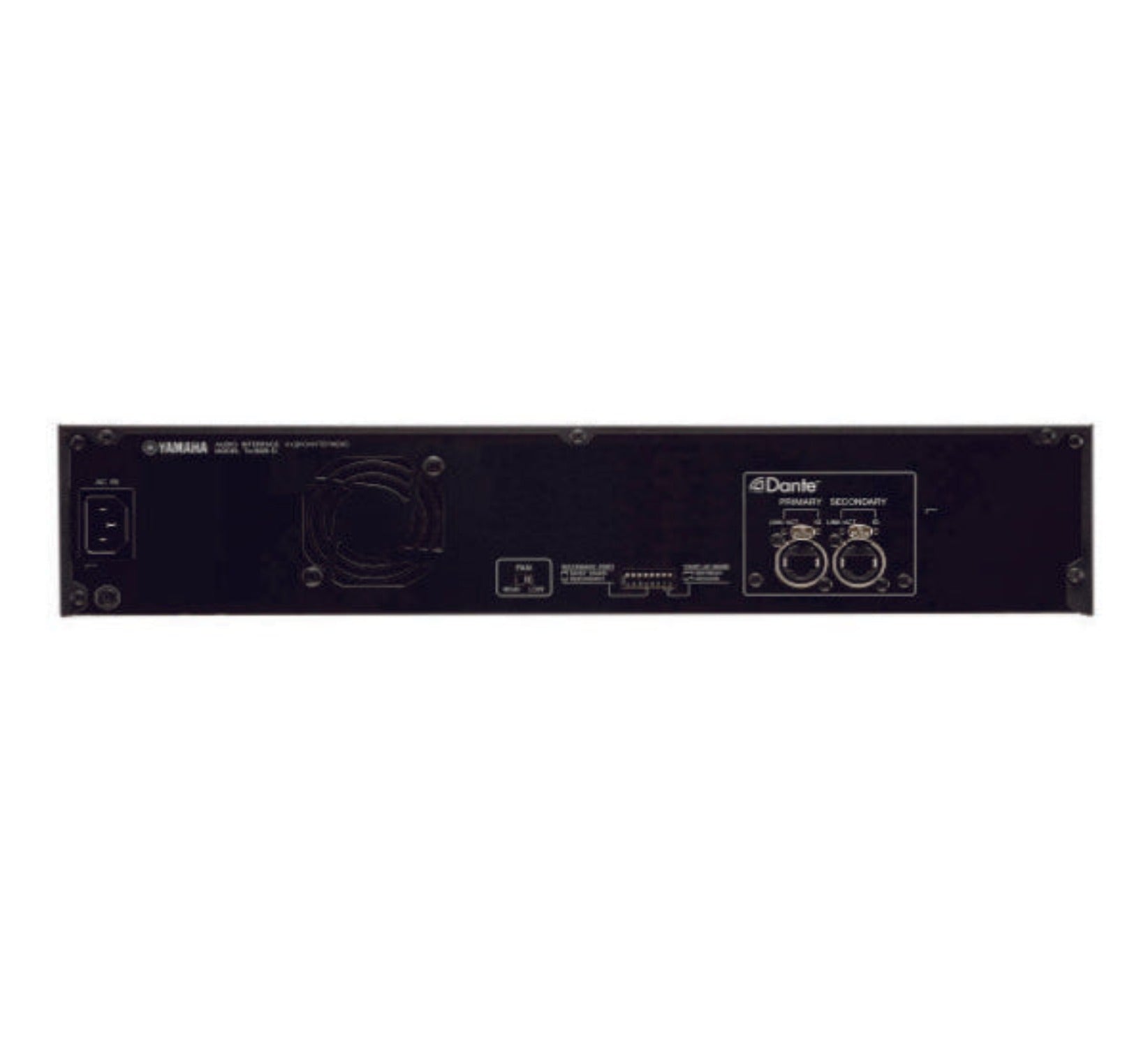

Data I/O:2 x EtherCon (primary, secondary)
Computer Connectivity:Ethernet Dante
Features:Connect multiple Tio Racks
Rackmountable:Yes
Power Source:Standard IEC AC cable
Height:3.5"
Depth:14.37"
Width:18.87"
Weight:12.6 lbs.
