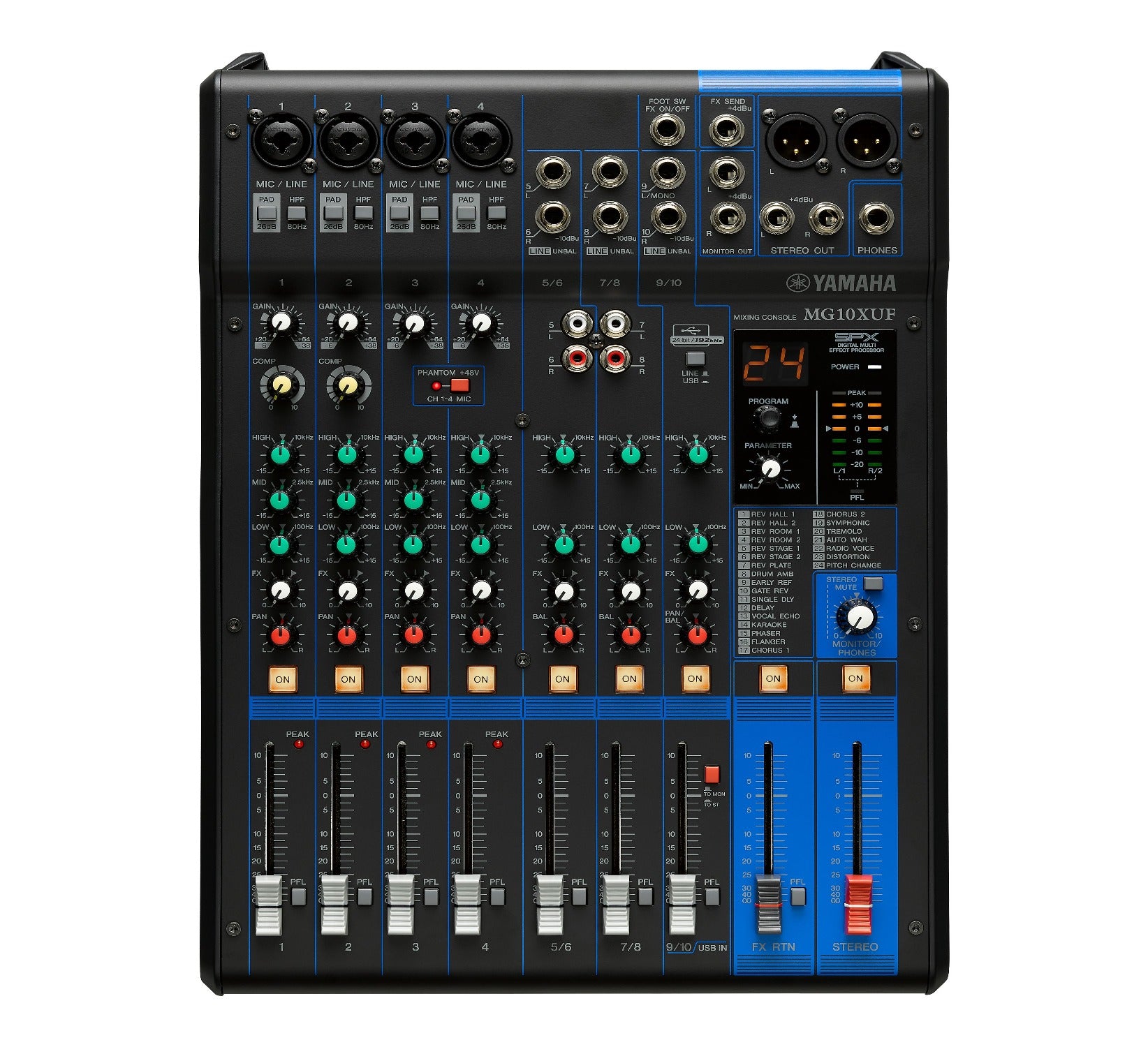

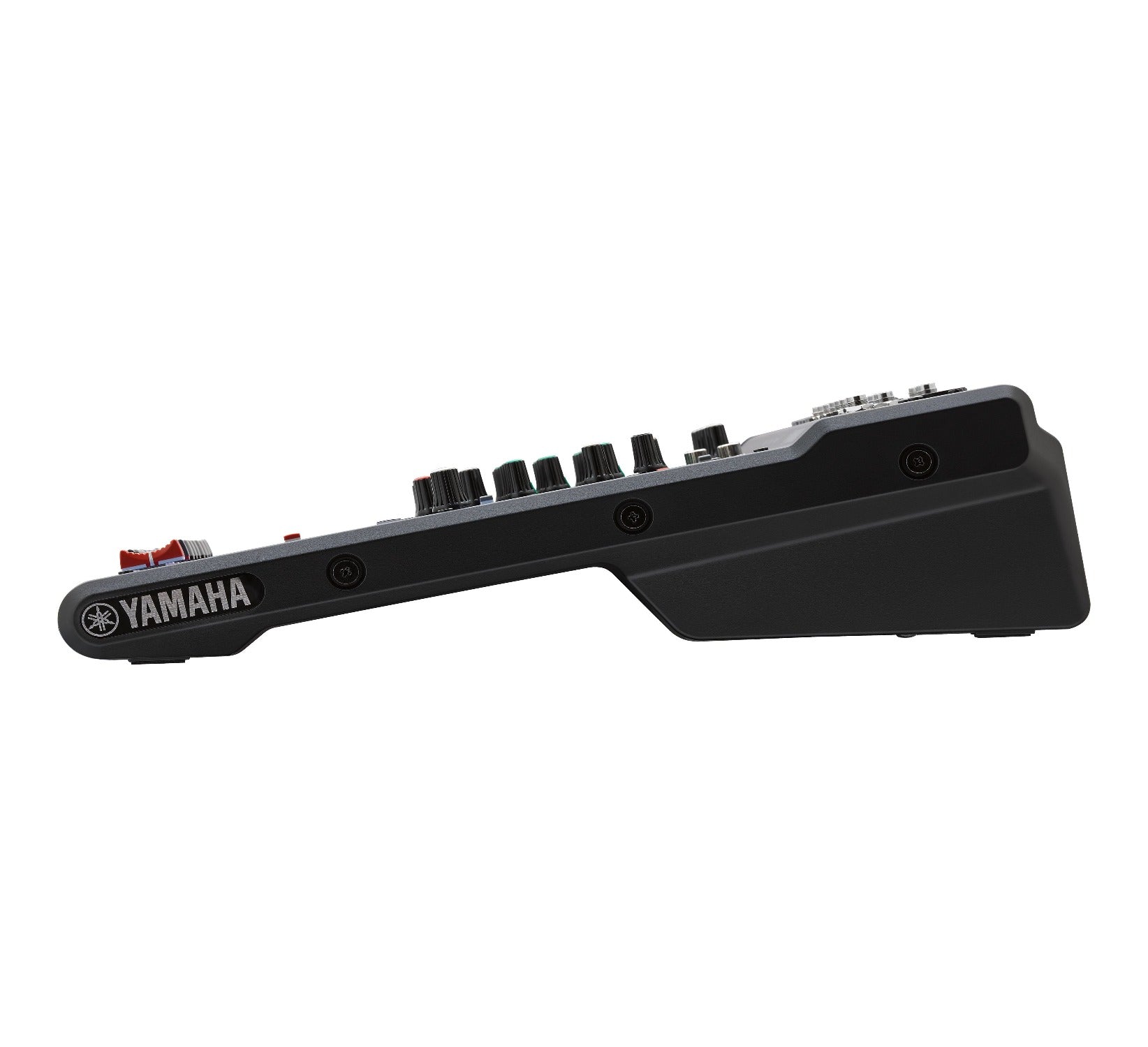

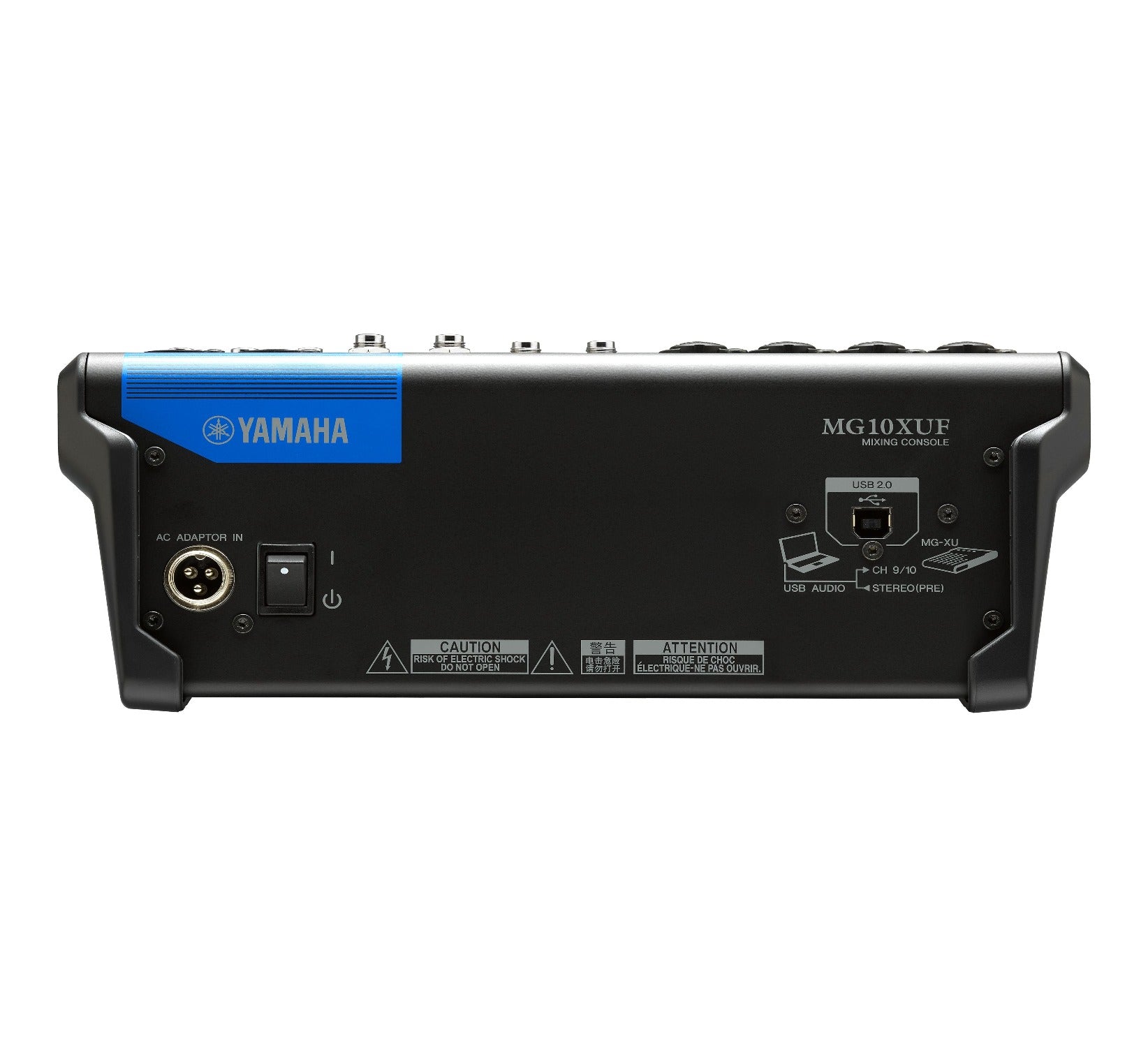

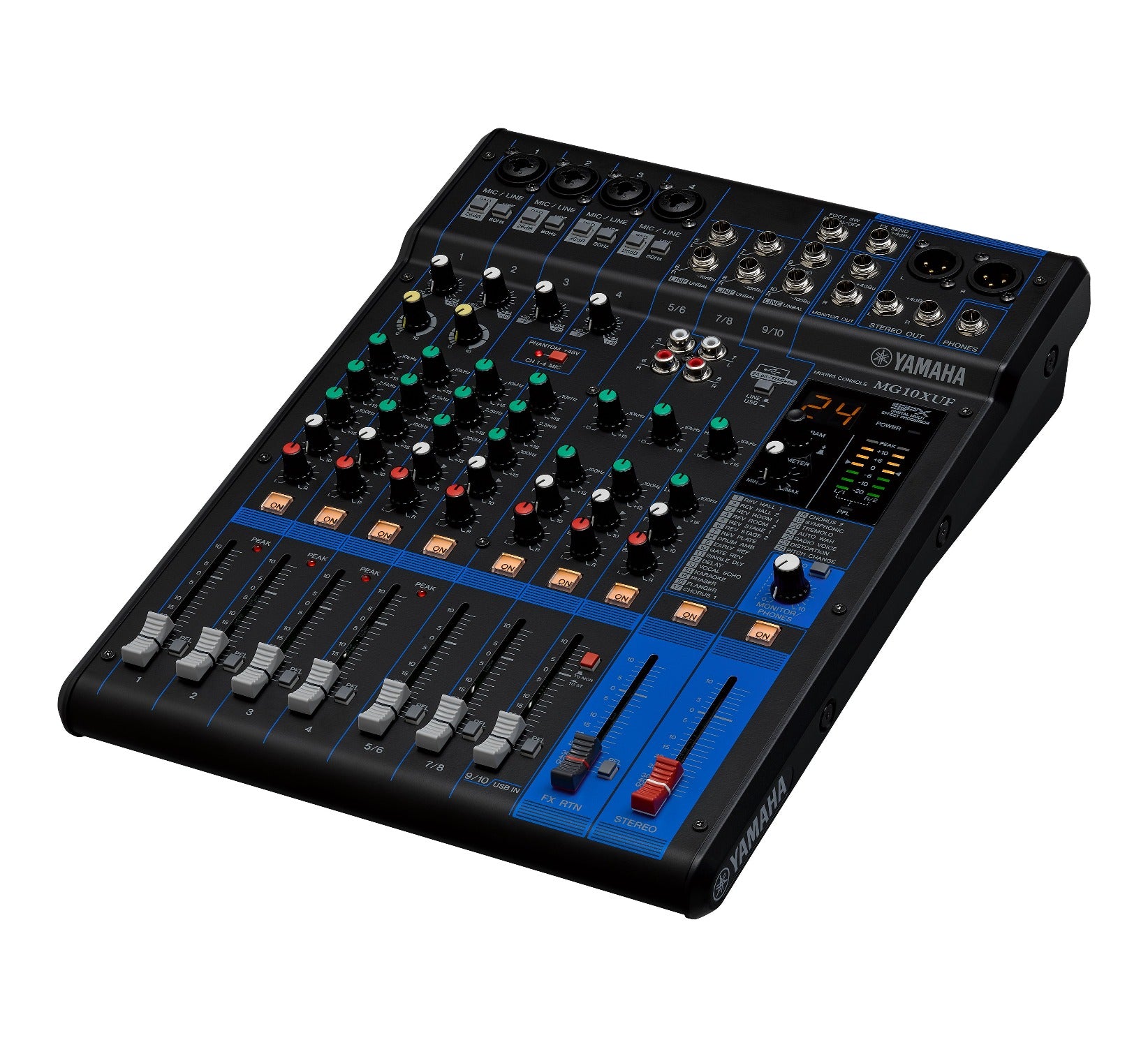

YAMAHA MGP SERIES MG10XUF

YAMAHA MGP SERIES MG10XUF

Road Tough. Studio Ready.

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

More Information

Features:

  • 10-channel mixing console with rugged metal chassis
  • Class-A D-Pre mic preamps with inverted Darlington circuit
  • Includes Cubase AI DAW software download version
  • High-grade SPX effects
  • Linear faders and single-knob compression

Technical Specification

Specifications:
Format:

  • Analog/digital: Analog
  • Number of channels: 10
  • Busses/groups: 1 stereo
  • Aux sends: 1
  • Powered: No

Inputs:

  • Total inputs: 10
  • Mic preamps: 4
  • XLR/TRS combo jacks: 4
  • XLR only jacks: 0
  • 1/4" only jacks: 0
  • S/PDIF in: 0
  • ADAT/optical in: 0
  • RCA in: 0
  • AES/EBU: 0

Outputs:

  • Total outputs: 5
  • XLR out: 1 stereo
  • 1/4" out: 2 stereo/1 send/1 phones
  • S/PDIF out: 0
  • ADAT/optical out: 0
  • RCA out: 0
  • AES / EBU: 0

Other Connectivity:

  • Connections: USB
  • MIDI I/O: No
  • Headphone output(s): 1
  • Wi-Fi No
  • Word-clock I/O: No
  • I/O expansion: Not specified

Onboard effects:

  • Compression: Yes
  • Reverb: Yes
  • Delay: Yes
  • Chorus/flange: Not specified

Equalization:

  • Type: Physical
  • EQ bands: 3
  • Master graphic: No

Other:

  • Width: 12.1"
  • Height: 4.6"
  • Depth: 16.6"
  • Weight: 9.3 lb.
  • Automation: No
  • Fader type: Physical
  • Motorized faders: No
  • Bundled software: Yes
  • Rackmountable: Yes
