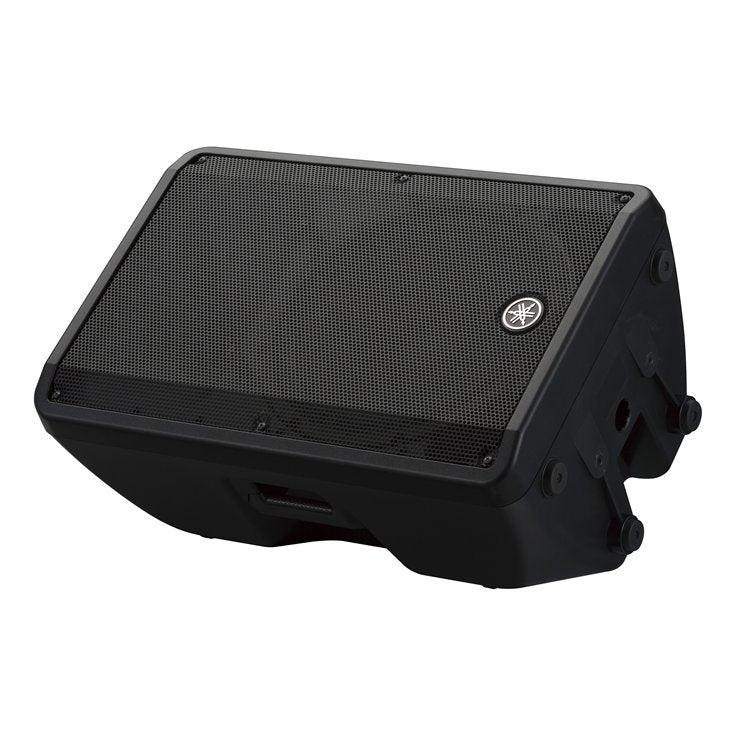

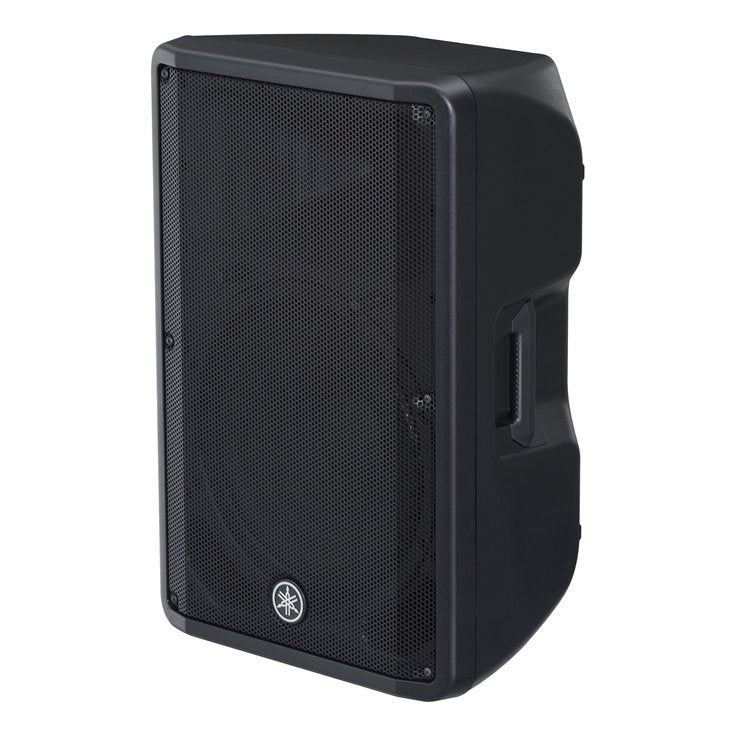

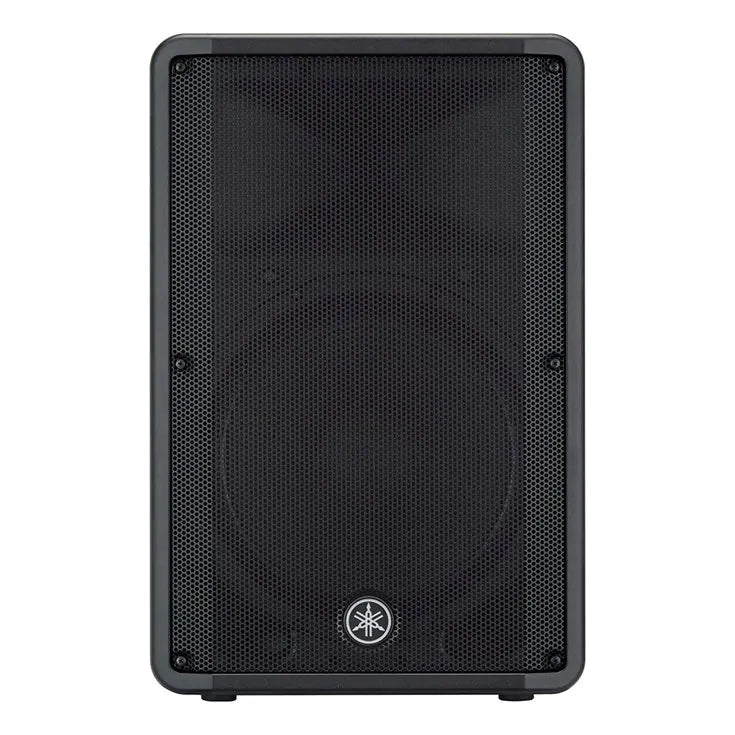

YAMAHA CBR 15

The CBR15 provides the lowest frequency in its lineup, delivering outstanding performance for the front-of-house sound for live performance, DJ events or for installation situations that require highly prominent low and high SPL.

More Information

Passive loudspeaker with lightweight plastic cabinet
Impressive 500W RMS power handling
1/4" and speakON inputs for flexible connectivity
HF-protection circuit prevents tweeter damage due to excessive signal levels
Highly-sensitive LF driver puts out full bass even at lower volumes

Technical Specification

Powered:No
LF Driver Size:1 x 15"
HF Driver Size:1.4"
Power Rating:500W
Total Power:1000W
Inputs:1 x 1/4", 1 x speakON
Impedance:8 ohms
Frequency Range:46Hz-20kHz (-10 dB)
Crossover Frequency:2kHz
Maximum Peak SPL:126dB
Horizontal Coverage Angle:90 Degrees
Vertical Coverage Angle:60 Degrees
Enclosure Material:Plastic
Mounting Options:Pole Mount with 1.37" socket, M8 Fly Points: 2 x Bottom, 1 x Rear
Height:27.6"
Width:17.9"
Depth:14.9"
Weight:39 lbs.
