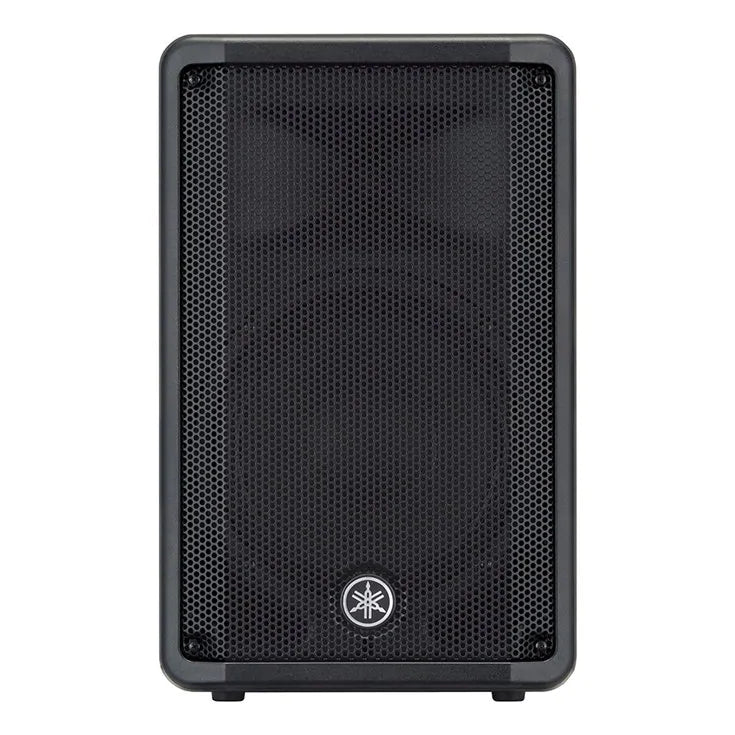

YAMAHA CBR 10

YAMAHA CBR 10

The CBR10 is the most compact model in its series. While delivering astonishing power for its size and weight, the CBR10 is ideal for both portable and installed applications.

More Information

  • Passive loudspeaker with lightweight plastic cabinet
  • Impressive 350W RMS power handling
  • 1/4" and speakON inputs for flexible connectivity
  • HF-protection circuit prevents tweeter damage due to excessive signal levels
  • Highly-sensitive LF driver puts out full bass even at lower volumes

Technical Specification

  • Powered:No
  • LF Driver Size:1 x 10"
  • HF Driver Size:1"
  • Power Rating:350W
  • Total Power:700W
  • Inputs:1 x 1/4", 1 x speakON
  • Impedance:8 ohms
  • Frequency Range:50Hz-20khz (-10 dB)
  • Crossover Frequency:2.8kHz
  • Horizontal Coverage Angle:90 Degrees
  • Maximum Peak SPL:123dB
  • Vertical Coverage Angle:60 Degrees
  • Enclosure Material:Plastic
  • Mounting Options:Pole Mount with 1.37" socket, M8 Fly Points: 2 x Bottom
  • Height:19.4"
  • Width:12.1"
  • Depth:11.4"
  • Weight:20.7 lbs.
