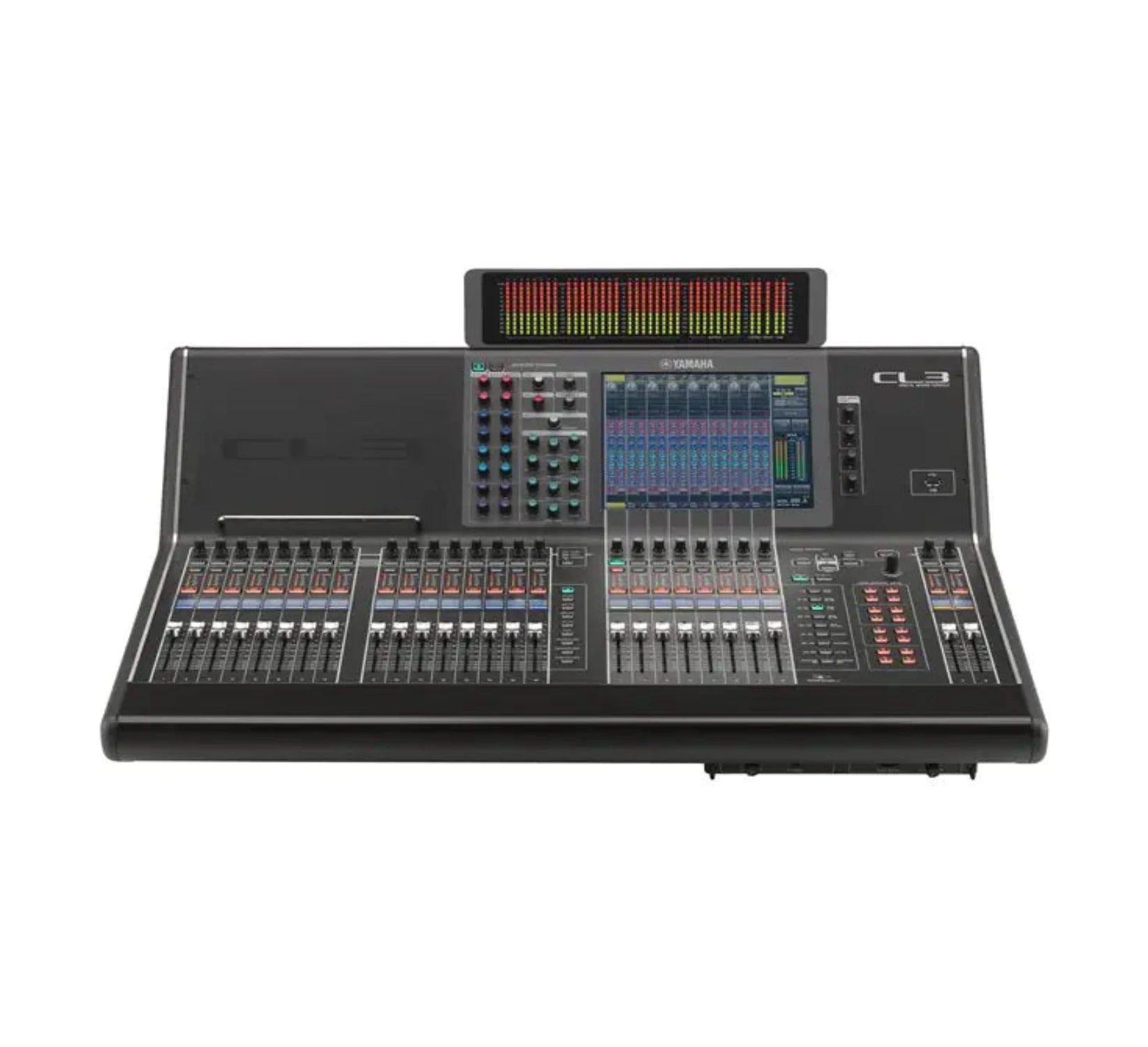

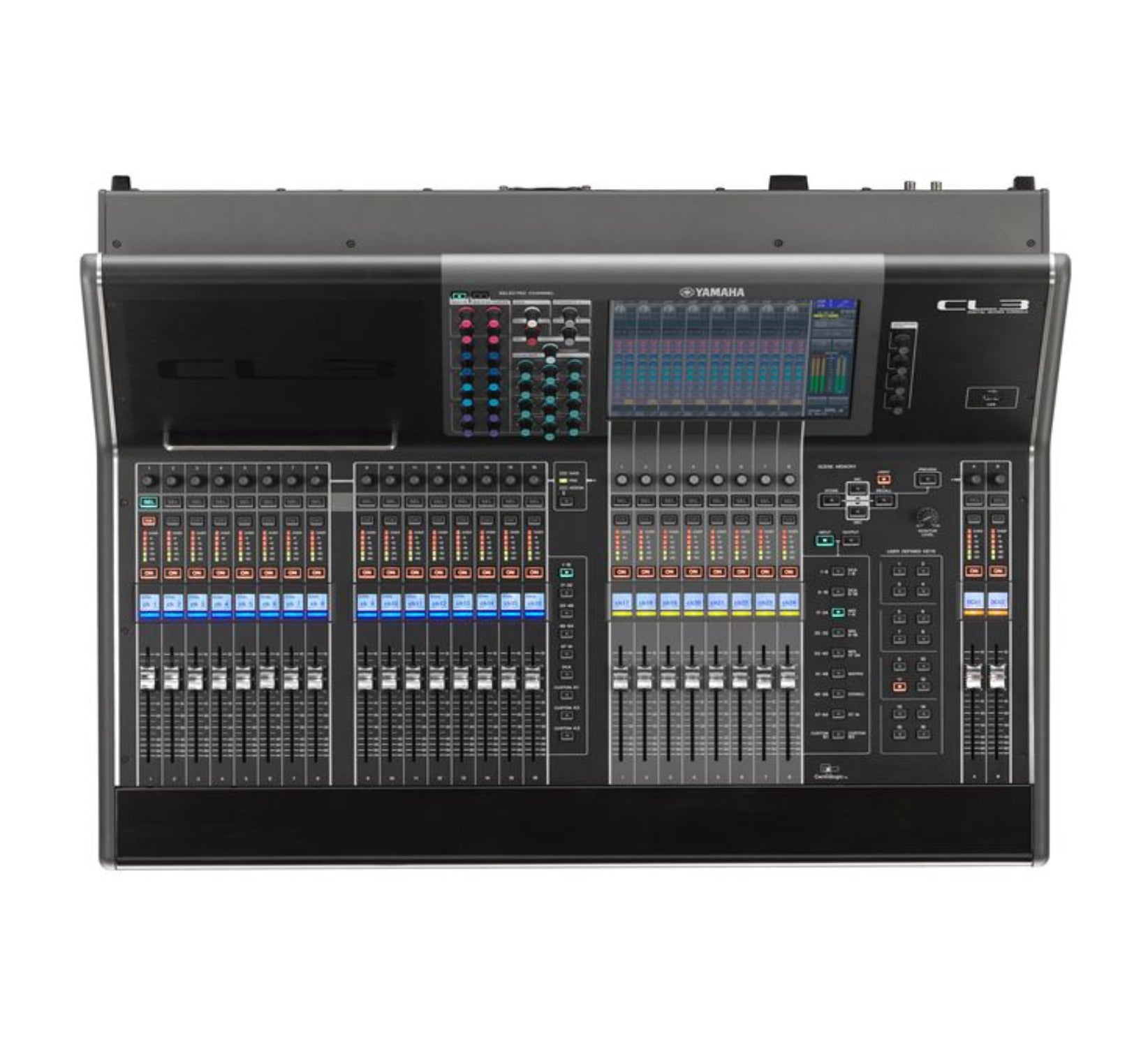

Yamaha CL3

Yamaha CL3

The standards stay, but innovation never ends.

The pursuit of perfection is ongoing and will probably never end, but along the way Yamaha has introduced a number of innovations that have become industry standards offering performance and familiarity that discerning users continue to demand. By definition, “standards” are best kept as they are. With evolutionary refinements, of course.

Yamaha CL series digital mixing consoles represent a new level of refinement. They offer an evolved experience in accessible mixing, plus sonic purity with sound shaping capabilities that will give the most imaginative engineer unprecedented creative freedom. The CL series embodies the leading standards in live sound in their most advanced, most expressive form.

More Information

Yamaha CL3 Digital Mixer Features:

  • 24-fader digital mixing console
  • 64 mono and 8 stereo mixable channels
  • Connect up to 8 Rio series stages boxes (sold separately) for I/O
  • Touchscreen display for intuitive control over the Centralogic user interface
  • Built-in Dante interface plus 3 MY-card slots for digital expansion
  • Control port for computer control (wired or Wi-Fi)
  • Portico 5033 EQ and Portico 5043 compressor/limiter processors designed by Rupert Neve Designs
  • Dan Dugan automatic mixing system easily optimizes microphone gain and fights feedback
  • Nuendo Live and Dante Virtual Soundcard licenses included

Technical Specification

Tech Specs

  • Type:Digital
  • Channels:24 + 2 master faders, 64 mono channel mixing plus 8 stereo channels
  • Inputs - Mic Preamps:8 x XLR
  • Phantom Power:8
  • Outputs - Other:8 x XLR (line out)
  • Inputs - Digital:2 x RJ-45 (Dante)
  • Outputs - Digital:2 x RJ-45 (Dante), 1 x XLR (AES/EBU)
  • Busses/Groups:16 send Mix bus, 8 send Matrix bus
  • Inserts:Internal
  • Talkback:1 x XLR
  • MIDI I/O:In/Out
  • Data I/O:1 x D-Sub GPI (15-pin female), 1 x Ethernet
  • Headphones:1 x 1/4"
  • USB:1 x USB Type A
  • Computer Connectivity:Ethernet
  • I/O Expansion Slots:3 x Card slots available (DSP cards or mini-YGDAI cards)
  • Word Clock:In/Out
  • Faders:26 x 100mm faders
  • EQ Bands:4-band parametric channel EQ, 31-band Graphic EQ, 15-band flex EQ,
  • Effects:Reverbs, Delays, Modulation, Premium Rack compressor modeling and more
  • DAW Control:Yes (via Dante)
  • Height:11.75"
  • Depth:26.25"
  • Width:33.12"
  • Weight:63.9 lbs.
