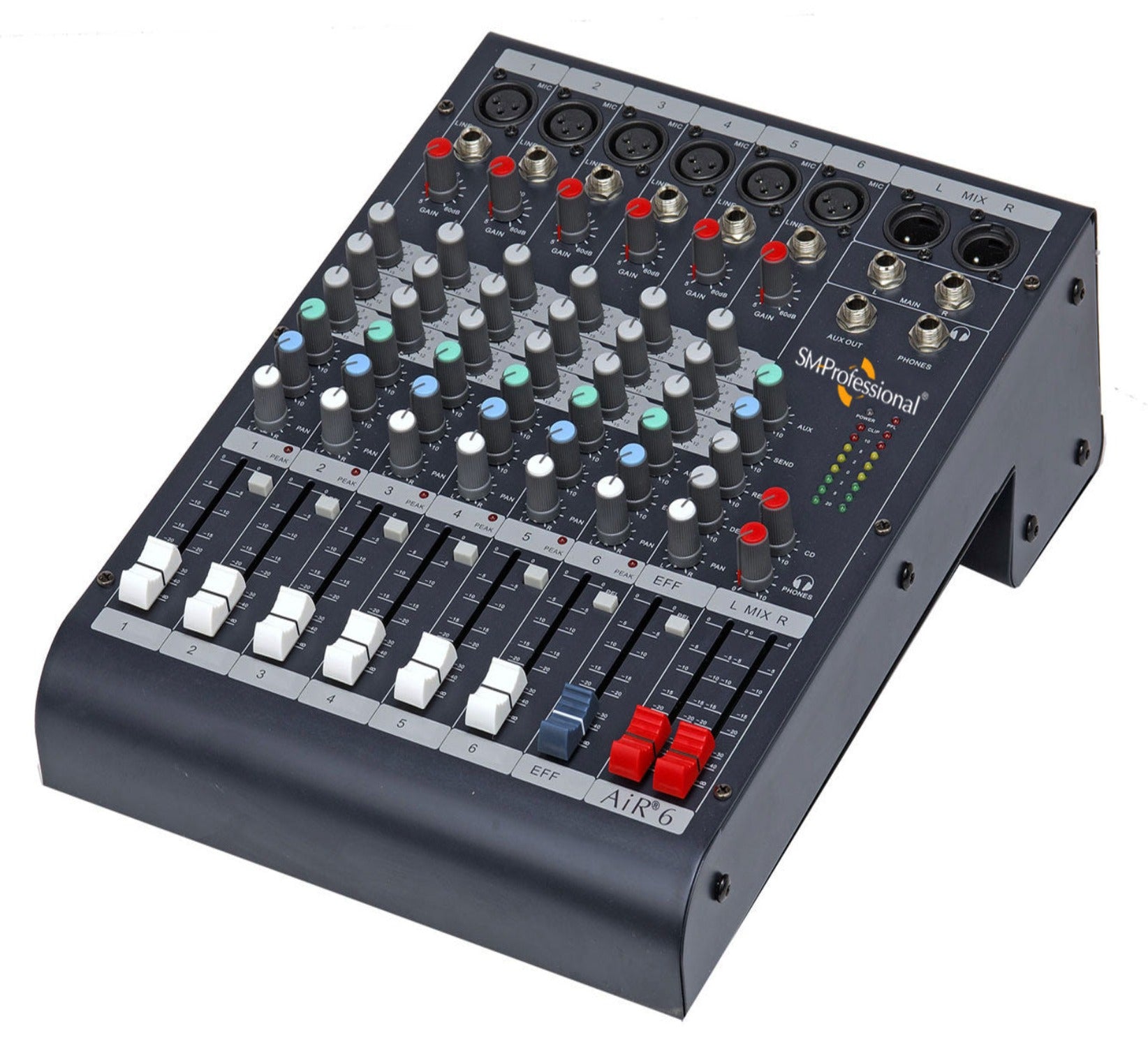

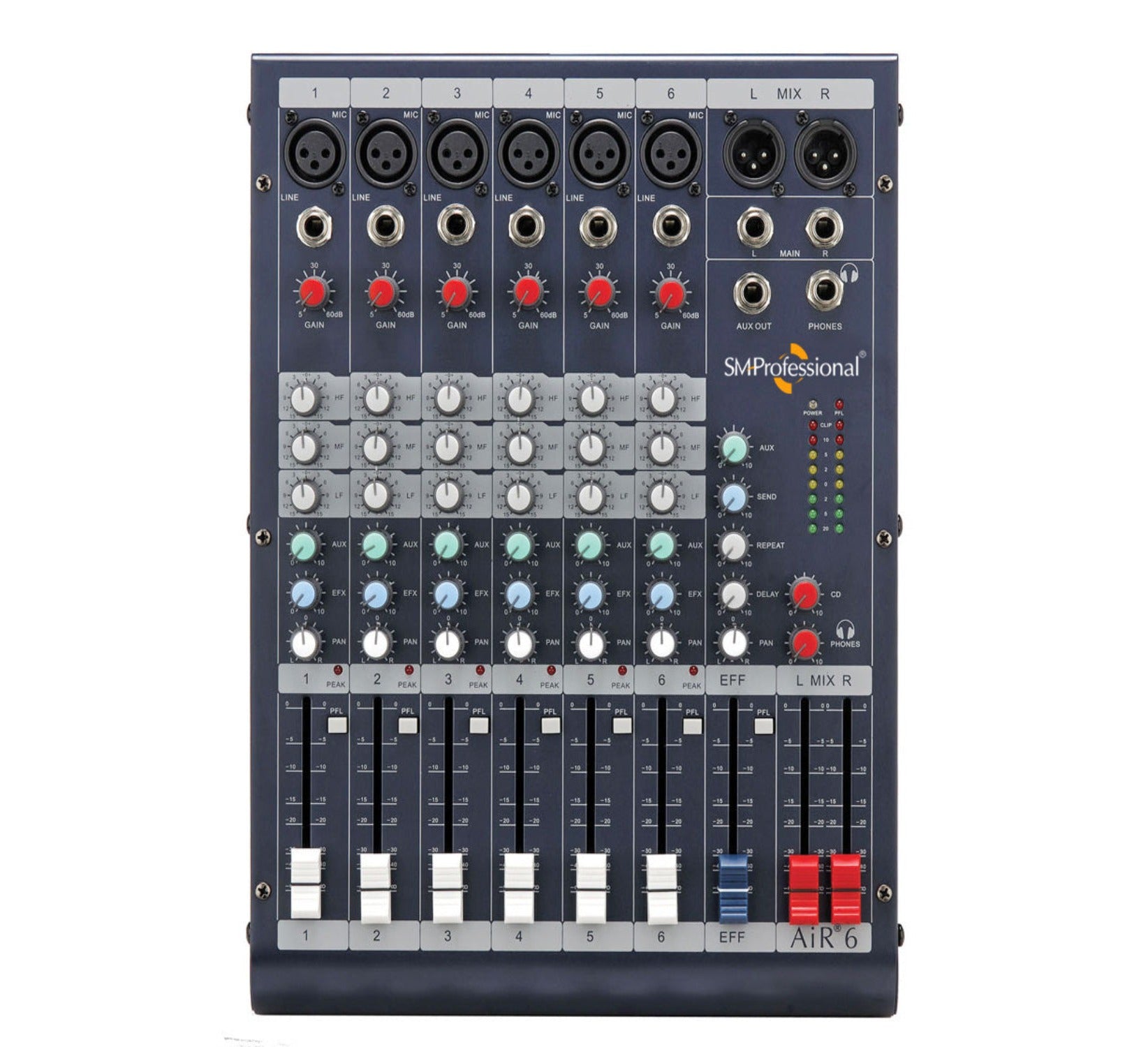

SM PROFESSIONAL DIAMOND CLUB SERIES AiR 6

SM PROFESSIONAL DIAMOND CLUB SERIES AiR 6

The Studiomaster Professional AiR Series mixers are the answer for budget-conscious users who refuse to sacrifice sound quality and reliability.

More Information

  • 6 Mic / Line
  • 3 Band EQ per channel.
  • 1 Aux send.
  • PFL (Cue) Switch with individual channel control
  • L/R pan pot and clip LED per channel.
  • Stereo RCA CD input with Control.
  • Delay EFX on board & FX send per channel.
  • 8 Segments L/R LED meter for master level.
  • Headphone output with level control.
  • Balanced XLR & ¼” Jack Master Output.

Technical Specification

  • Gain (Mic/Line): 60dB/40dB
  • EFX : Delay with repeat
  • Power Supply: AC 240 V / 50Hz
  • Net Weight (Kgs.): 3
  • Total Harmonic Distortion: < 0.03%
  • Signal to Noise Ratio: -85dB
  • Clip indication: 4 dB prior to true clip
  • Mic (Gain Min/Gain Max): -5dBu / -60dBu
  • Line (Gain Min /Gain Max): +6dBu / -40dBu
  • Frequency Response: 20Hz to 20KHz (+0/-3 dB)
  • Dimensions (W x D x H in mm): 250 x 335 x 115
  • Equalisation (Treble/Mid/Bass): ±15dB @ 12KHz/2.5KHz/80 Hz
  • Main Output level: Nominal +0dBu (0.775V RMS) / + Max  20dBu (7.75V RMS)
