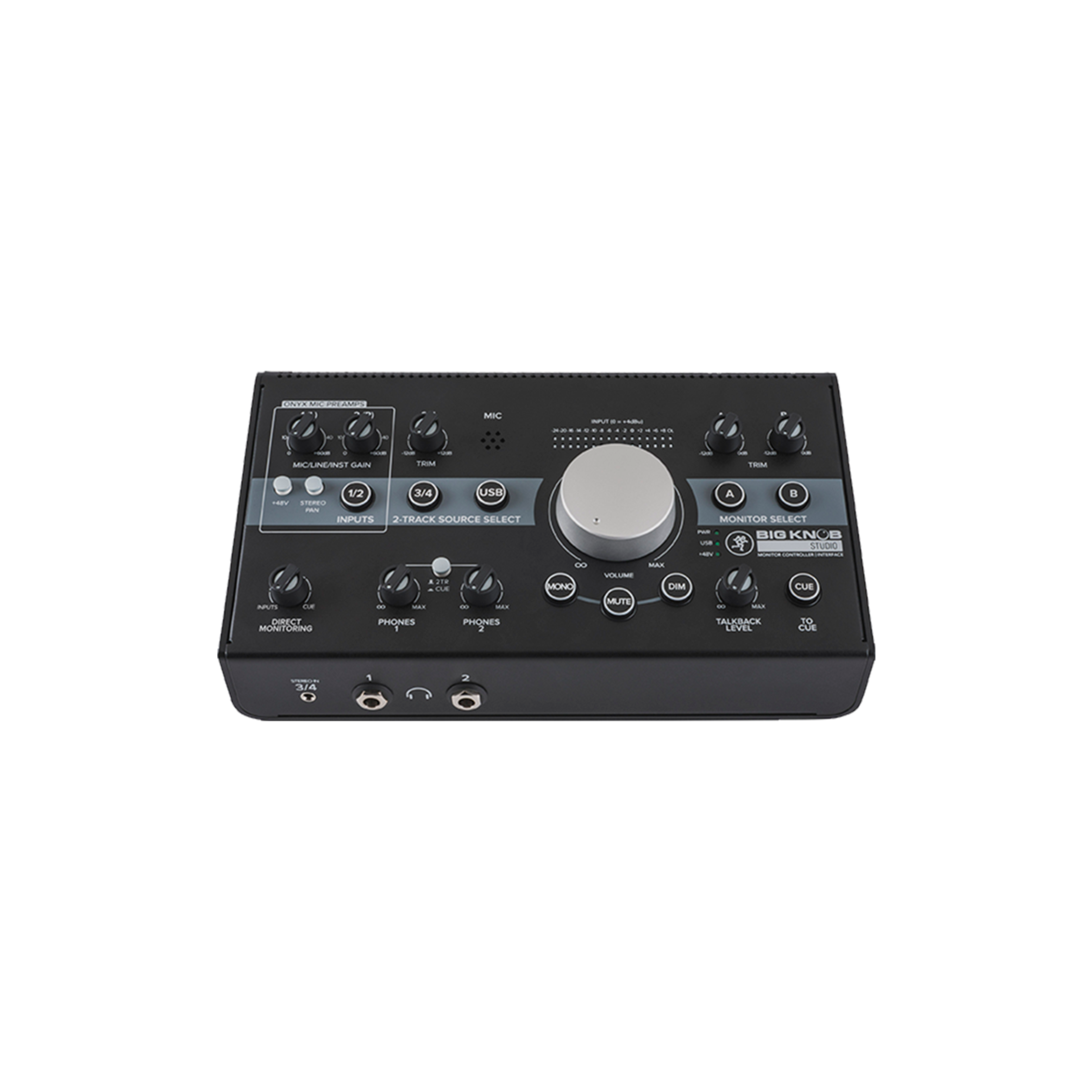

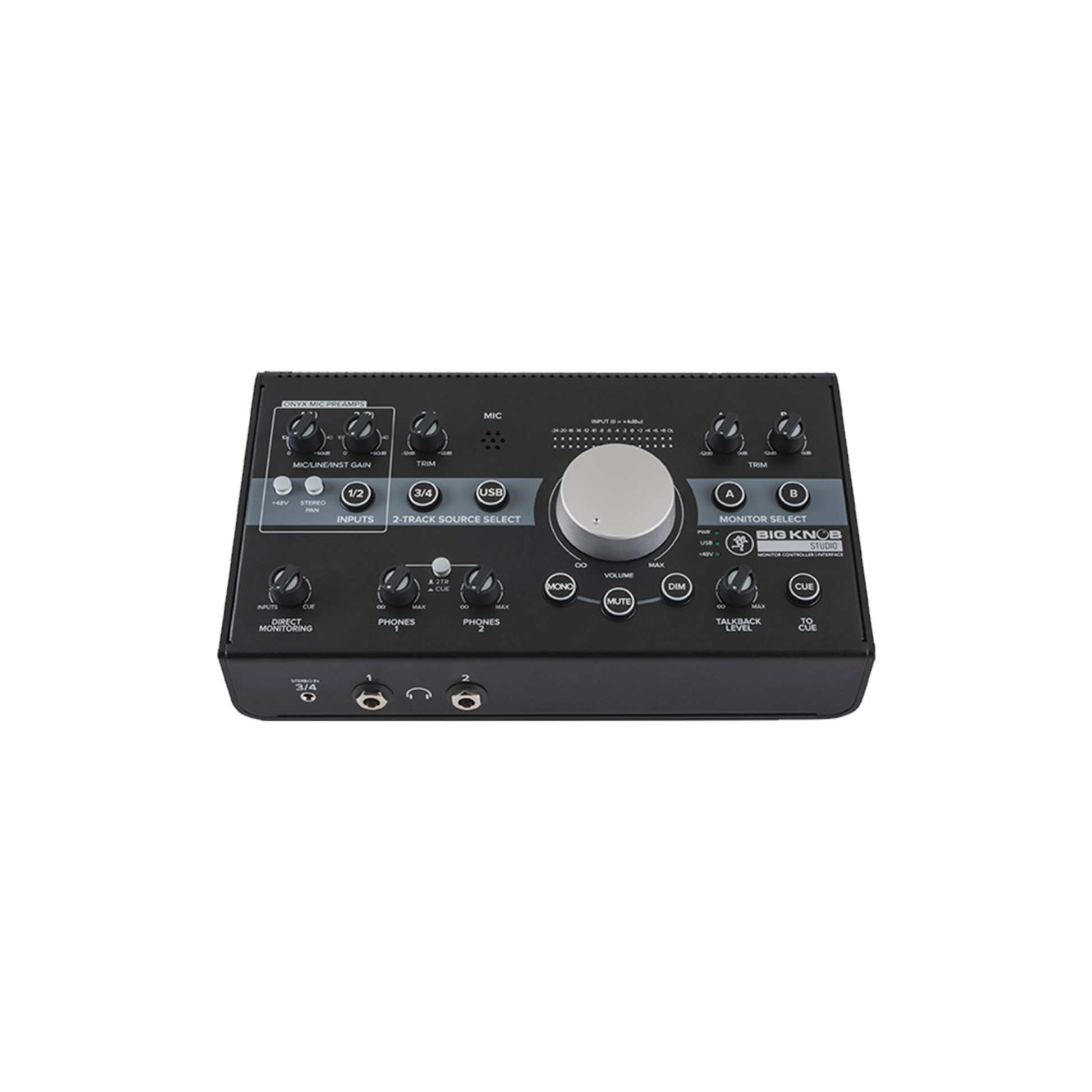

MACKIE BIG KNOB STUDIO

MACKIE BIG KNOB STUDIO

Reach for a Mackie Big Knob Studio monitor controller and level up your workspace. This all-in-one desktop interface and monitor control solution has become the centerpiece for in-the-know producers and musicians. It even features award-winning Onyx™ mic preamps plus high-resolution USB recording and playback. You’ll wonder how you lived without one.

More Information

Professional source and monitor selection
  • Choose between 3 sources and 2 monitor pairs
  • Classic Big Knob volume control
  • Independent trim on all sources and monitor outs
  • Mono, mute and dim functions

Flexible 2x2 USB recording interface

  • Two boutique-quality Onyx mic preamps including phantom power for condenser microphones
  • High-resolution 96kHz / 24-bit recording and playback
  • Cue mix allows controlled blending of direct inputs with other signals for zero-latency recording
  • Choice of recording paths provide flexibility for applications like podcasting

Comprehensive feature set for professional studios

  • Flexible source connections including convenient 1/8” input for your smartphone
  • Dual headphone outs with independent level control
  • Built-in talkback mic for easy communication with artists
  • 16-segment high-resolution input source metering

Technical Specification

  • Input Channels:3 x sources
  • Output Channels:2 x stereo monitors
  • Analog Inputs:2 x 1/4" TRS (line), 2 x XLR-1/4" combo (mic), 1 x 1/8" (aux in)
  • Analog Outputs:4 x 1/4" (monitors A/B), 2 x 1/4" (2-track)
  • Headphones:2 x 1/4"
  • USB:1 x Type B
  • Computer Connectivity:USB
  • Talkback:Built-in
  • A/D Resolution:Up to 24-bit/192kHz
  • Software:Traktion
  • Compatibility:Mac, Windows
  • Form Factor:Desktop
  • Power Supply:18V DC power supply (included)
  • Height:3.2"
  • Width:9.9"
  • Depth:6.4"
  • Weight:3.5 lbs.
