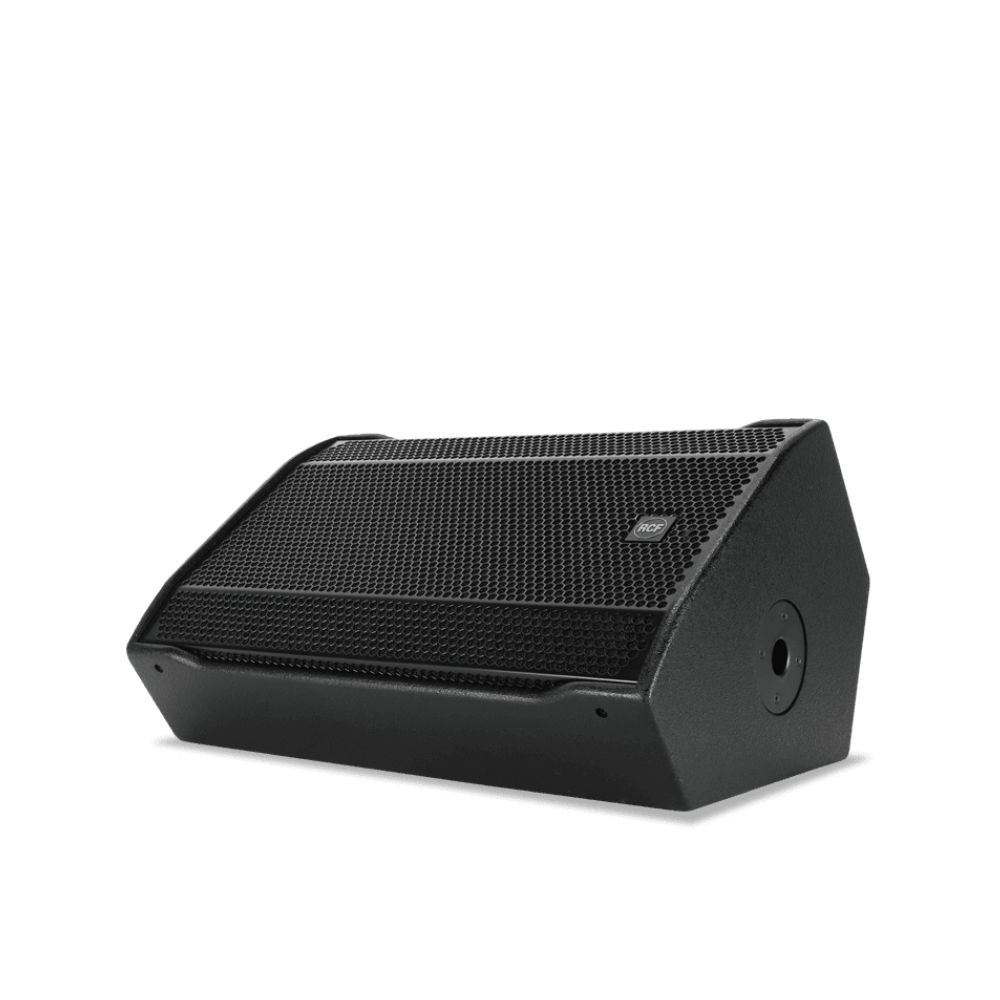

RCF ST 12 SMA II

RCF ST 12 SMA II

The ST 12 SMA II is an active ultra-compact and fully featured speaker for rental companies and musicians. Designed as a professional sound reinforcement solution with up to 130 dB SPL, low distortion and unmatched reliability, it shines in high powered music applications, DJ sets, and vocal reinforcement, with or without subwoofers.

More Information

  • 1200 Watt
  • 130 dB max SPL
  • 90° x 60° coverage
  • FiRPHASE for 0° Phase Response
  • 12” Woofer, 2.5” v.c.
  • 1.0” C.Driver, 1.4 v.c.
  • Multifunctional cabinet

Technical Specification

  • Type:Stage Monitor
  • Powered:Yes
  • Power Configuration:2-way
  • LF Driver Size:12" Woofer
  • HF Driver Size:1" Compression Driver
  • Power Amp:HF 800W, LF 400W
  • Power Rating:600W RMS
  • Total Power:1200W Peak

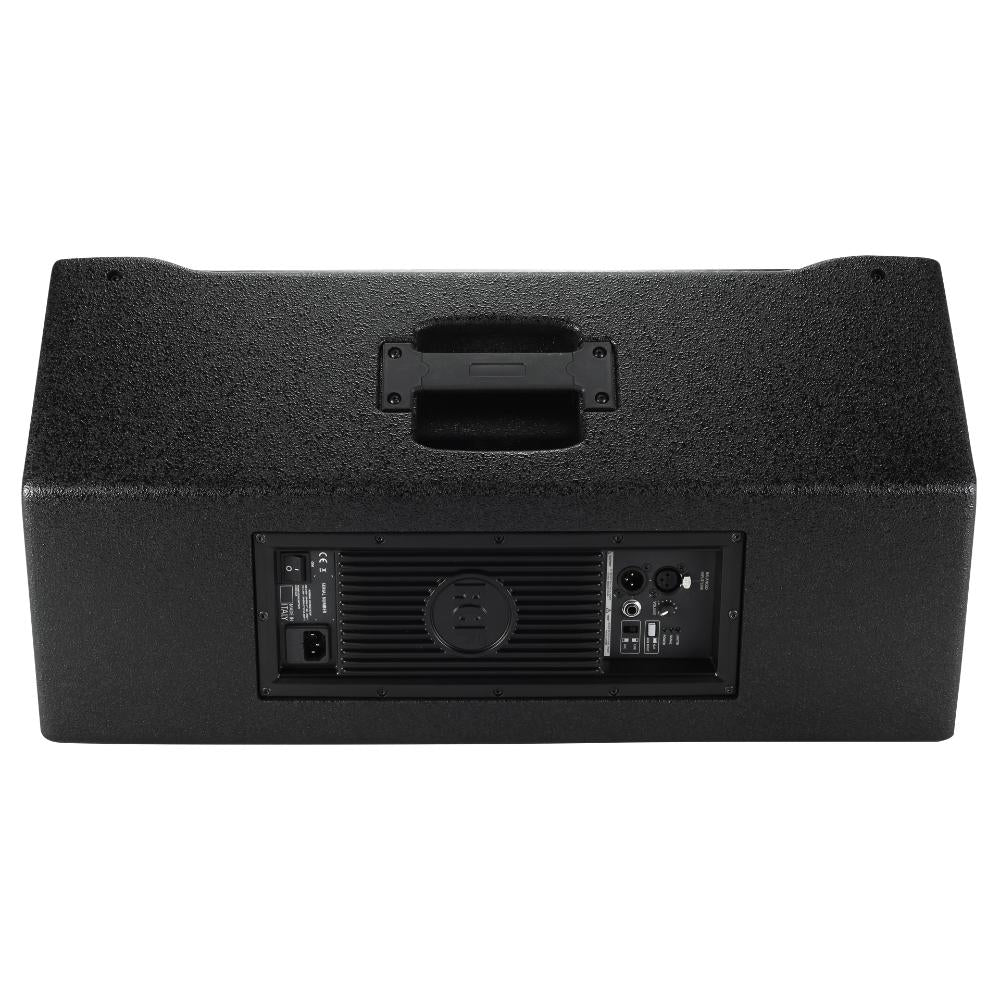

  • Inputs:1 x XLR, 1 x 1/4" TRS
  • Outputs:1 x XLR
  • Frequency Response:45Hz-20kHz
  • Crossover Frequency:1400Hz
  • Maximum Peak SPL:129dB SPL @ 1m
  • Horizontal Coverage Angle:90 Degrees
  • Vertical Coverage Angle:60 Degrees
  • Enclosure Material:Baltic Birch Plywood, Steel Grille
  • Mounting Options:Floor Wedge
  • Power Source:Standard IEC AC cable
  • Height:12.52"
  • Width:23.39"
  • Depth:15.75"
  • Weight:38.14 lbs.
