JBL 70JE-1

JBL 70JE-1

The black CBT 70JE-1 Extension for CBT 70J-1 Speaker by JBL Professional is purposely designed for use with the CBT 70J-1, in a tough fiberglass-reinforced ABS enclosure. The speaker contains four low frequency drivers and a crossover network. The 500 W power handling and high sensitivity delivers powerful low frequency output.
When connected to a CBT 70J-1 speaker, the CBT 70JE-1 Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology, which results in pattern control consistency.

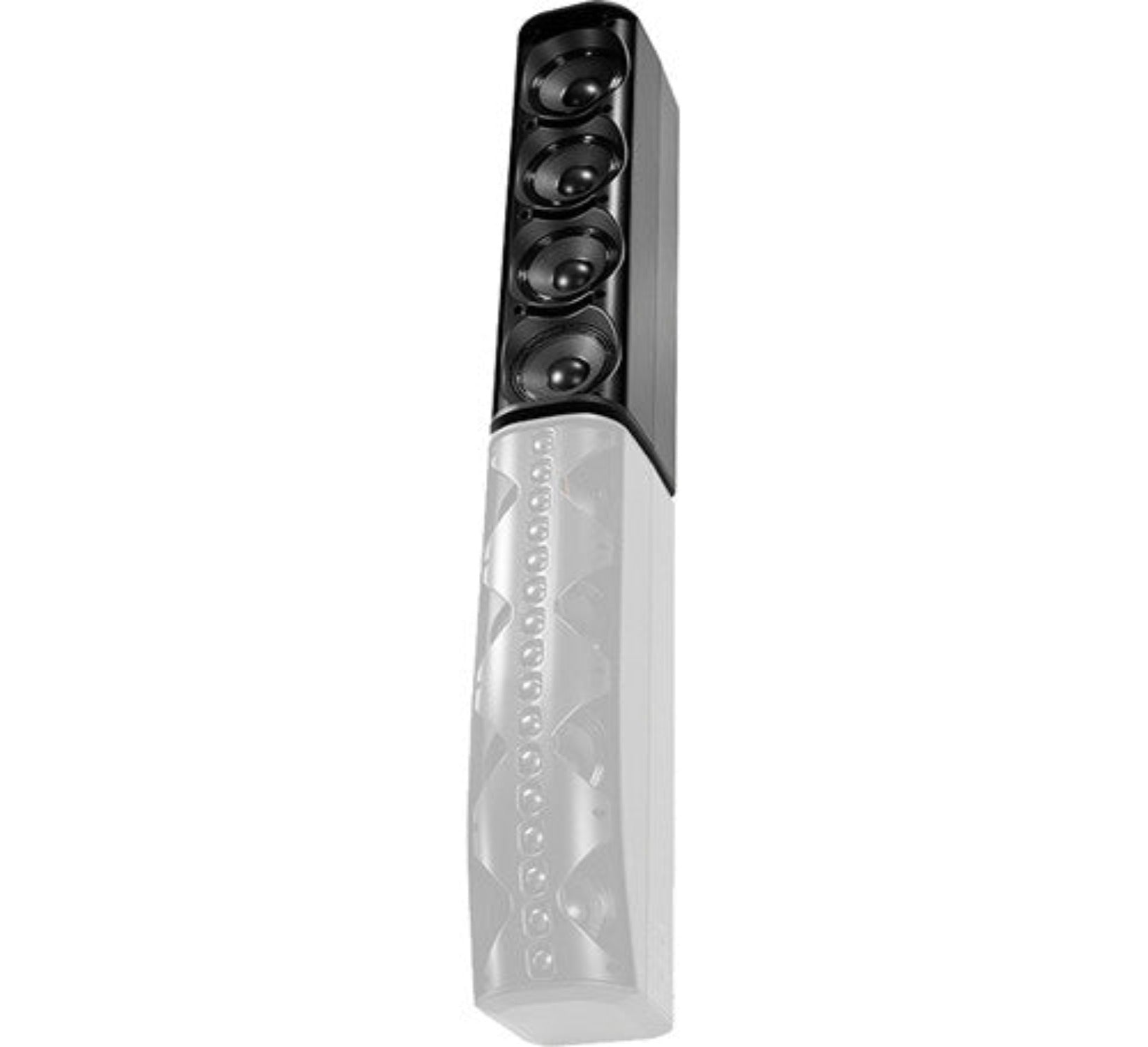

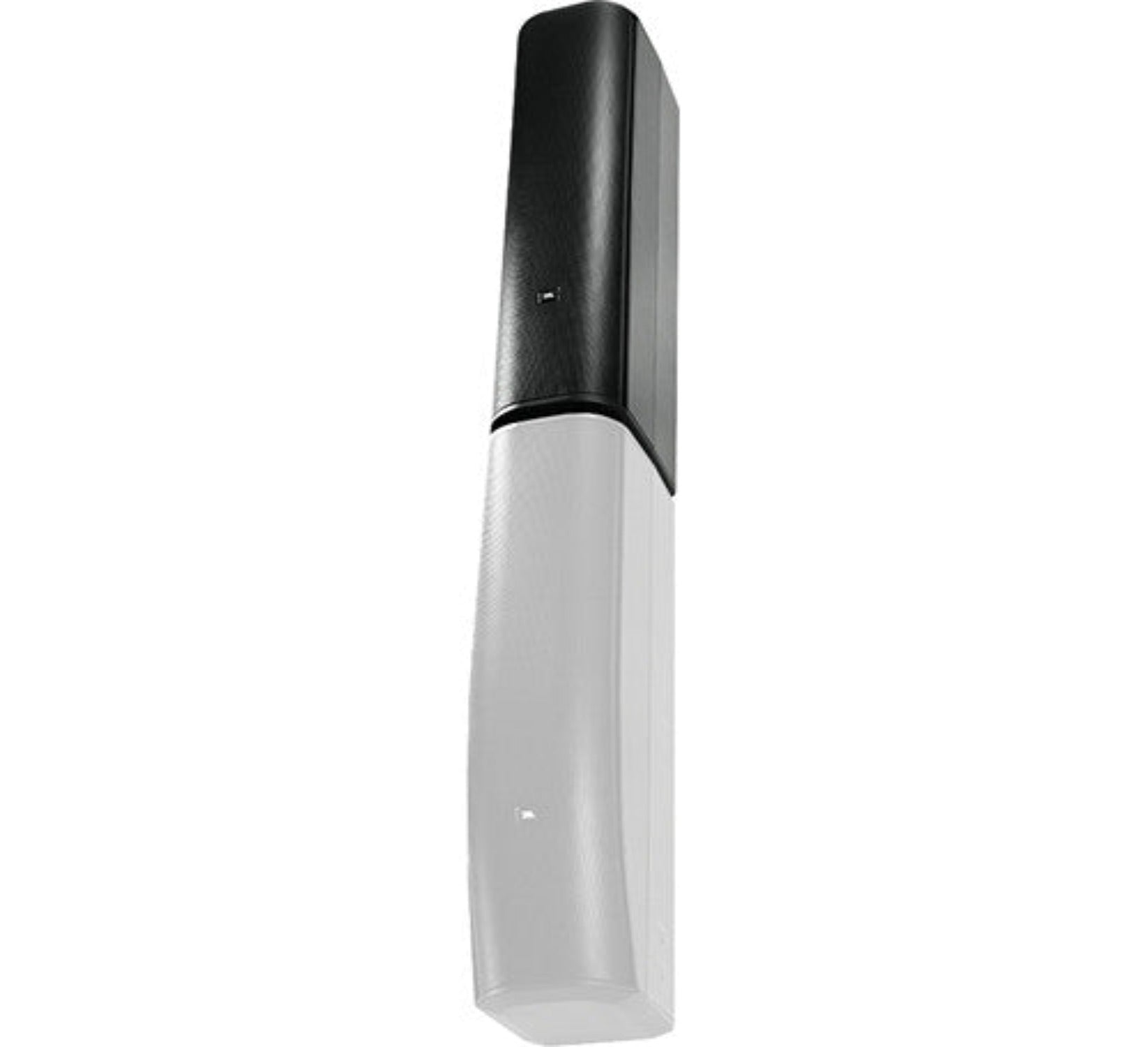

The CBT 70JE-1 attaches to the top of the CBT 70J-1, utilizing the included coupler plate, resulting in a well controlled progressive line array with asymmetrical vertical coverage. This coverage produces a higher concentration of sound with a tighter pattern projecting to the far areas of the listening space.

More Information

Ideal for use in auditoriums, lecture halls, stadiums, theme parks, and more
Extended bass response to 45 Hz
Extended pattern control (to 400 Hz for +/- 20° control, to 200 Hz for substantial off-axis cancellation)
Patent-pending Constant Beamwidth Technology, provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing
Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.

Technical Specification



JBL CBT 70JE-1 Specs
Frequency Range 45 - 700 Hz (-10 dB)
Power Capacity 500 W (2000 W peak), 2 hrs
350 W (1400 W peak), 100 hrs
Maximum Sound Pressure Level (SPL) 117 dB
Sensitivity 90 dB full space
96 dB half space
Nominal Impedance 8Ω
Voice Coil 1.5" (38 mm)
Low Frequency Driver 5" (130 mm) drivers x 8 pieces
High Frequency Driver 1" (25 mm) drivers x 16 pieces
Enclosure Material Fiberglass-reinforced ABS cabinet, painted aluminum grille
Coverage Vertical (selectable via switch)
Narrow Mode: 25° (2 kHz - 16 kHz) (+/- 10°)
Broad Mode: 45° (350 Hz - 16 kHz) (+/- 10°)
Horizontal 150° (500 Hz - 18 kHz, +/- 20°)
Input Connections 2 x speaker wire terminals
Compliance IP-54 rated per IEC529 UV, moisture and salt-spray resistant
Dimensions 54.8 x 6.7 x 9.3" (1388 x 170 x 237 mm)
Weight 8.2 kg (18 lb)
