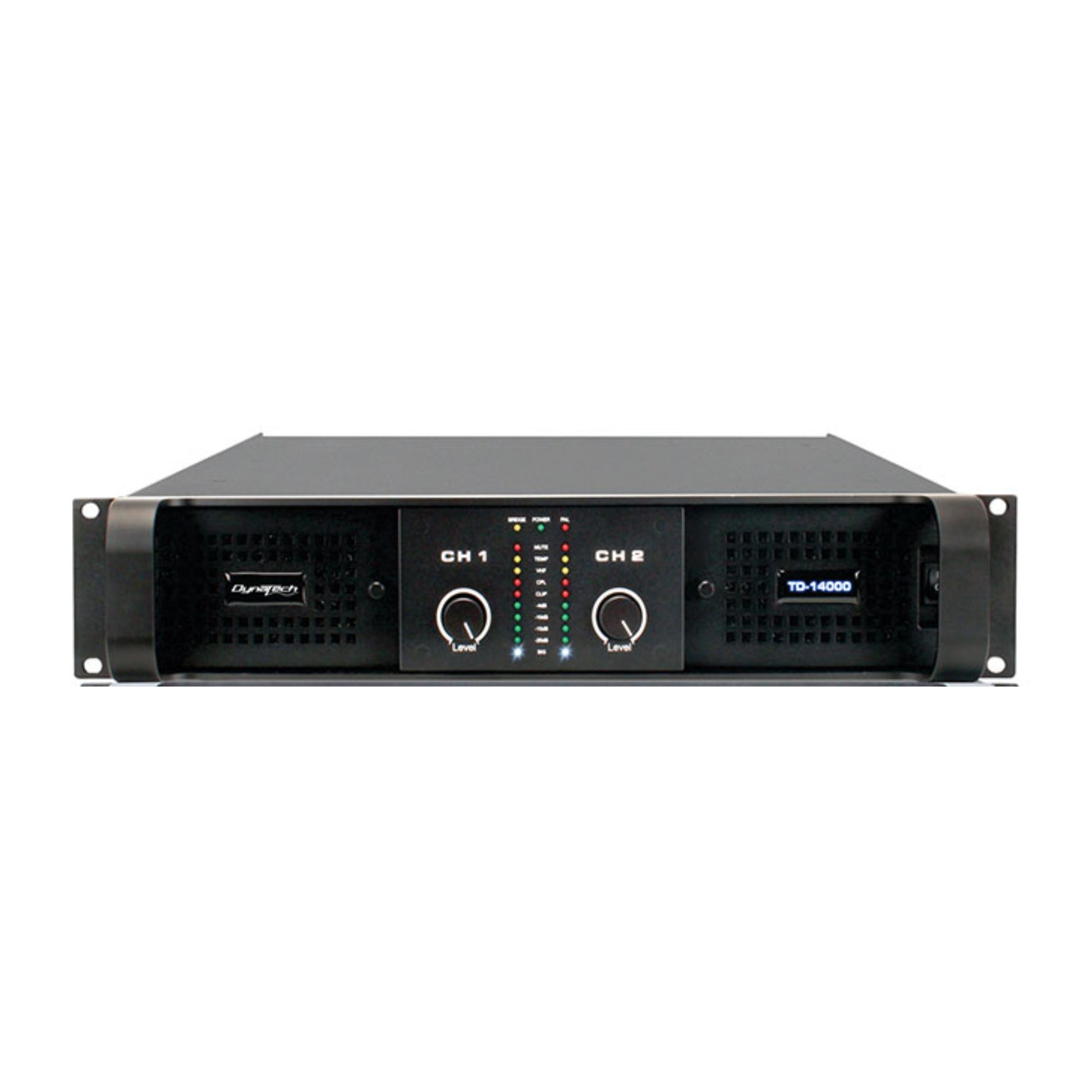

DYNATECH TD 14000
DYNATECH TD 14000

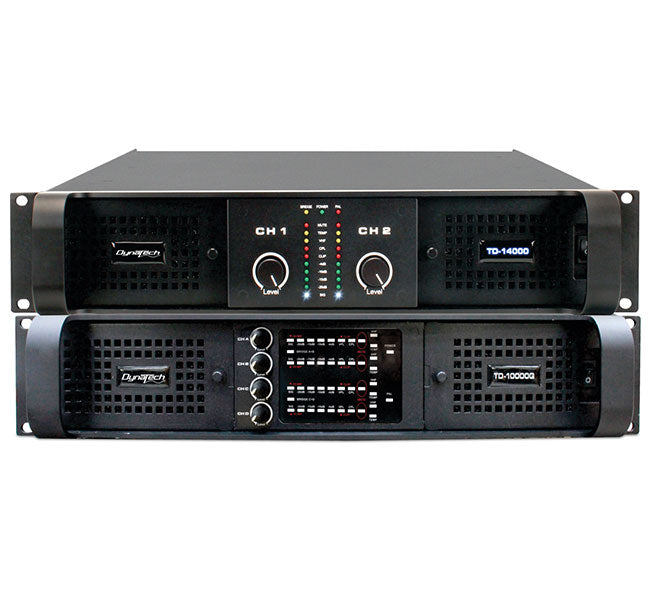

Few currently available SMPS amplifier platform have achieved legendary status among the touring so quickly and unquestionably as our TD Series. The TD Series delivers superior sound quality, enduring severe stress, and keeping the show going on, no matter what.
In today's highly demanding touring environment, competitive sound hiring companies the world over have come to rely on Dynatech's TD Series Amplifiers for performance that leads to profitability.
More Information
More Information
Technical Specification
Technical Specification
| MODEL |
TD-14000
|
TD-10000Q
|
| RMS Output Power (Per Channel, 8Ω) |
2 X 2350 W
|
4 X 1250 W
|
| RMS Output Power (Per Channel, 4Ω) |
2 X 4000 W
|
4 X 2100 W
|
| RMS Output Power (Per Channel, 2Ω) |
2 X 7000 W
|
4 X 2200 W
|
| Rated Power (Bridge 8Ω) |
1 X 8000 W
|
2 X 4200 W
|
| Rated Power (Bridge 4Ω) |
1 X 1400 W
|
2 X 4600 W
|
| S/N Ratio (A Weight) |
> 112 dB
|
> 112 dBA
|
| Frequenct Response (+0/-0.25dB) |
2 Hz - 34.2 kHz
|
6.8 Hz - 34.2 kHz
|
| Class |
D
|
D
|
| Damping Factor |
>1000 : 1
|
|
| THD (10% Rated Power) |
<0.05%
|
|
| Input Connector |
1 X XLR in, 1 X XLR Line Out
|
|
| Input Impedance |
20 KΩ Balanced, 10 KΩ Unbalanced
|
|
| Output Connectors |
Binding Post
|
Speakon
|
| Cooling |
Two fans, Front to rear airflow, temperature controlled speed
|
|
| Dimension WxDxH (mm) |
483 X 443 X 88
|
483 X 443 X 88
|
| Net Weight (1 piece/pack) |
13.5 Kgs
|
12.5 Kgs
|
| Gross Weight |
16 Kgs
|
16 Kgs
|
