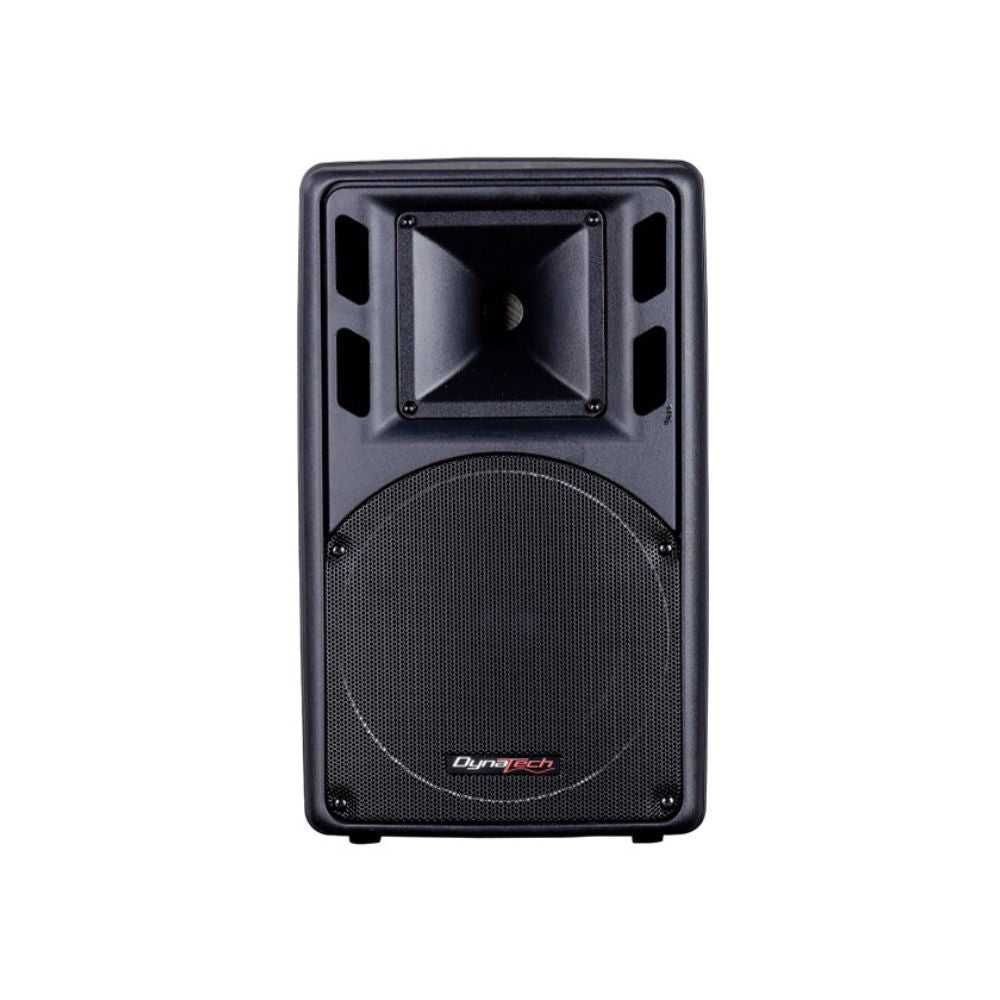

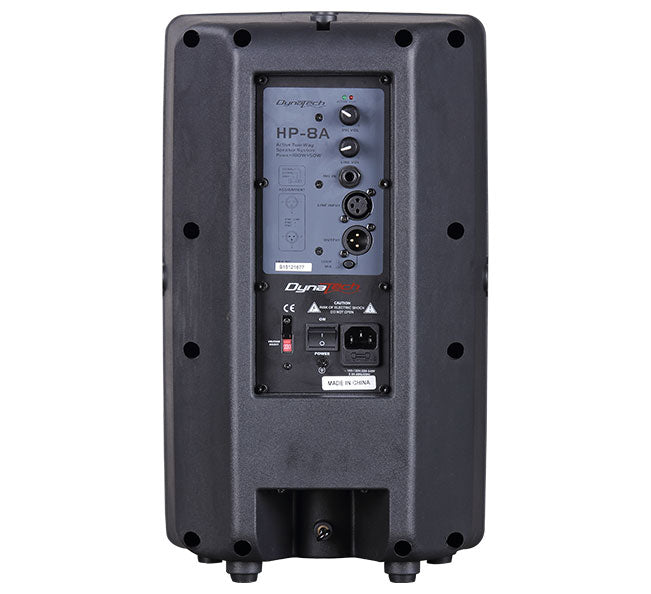

DYNATECH HP 8A+

DYNATECH HP 8A+

Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship, Events, Clubs, Rehearsal Halls etc. The HP Series delivers extraordinary performance at unmatched value.

More Information

FEATURES

  • High Output SPL & Sensitivity
  • High Power Low Frequency Transducer
  • Built in Power Amplifier Module
  • Master Volume Control
  • Phase Switch

Technical Specification



MODEL HP 8A+ HP 10A+ HP 12A+ HP 15A+
Rated Power   150W (RMS)   250W (RMS)   350W (RMS)   400W (RMS)
  Construction   Moulded Polypropylene
  Enclosure
  Moulded Polypropylene
  Enclosure
  Moulded Polypropylene
  Enclosure
  Moulded Polypropylene
  Enclosure
  LF Driver   8", 1.5" VC,
  Ferrite Magnet
  10", 2" VC,
  Ferrite Magnet
  12", 2.5" VC,
  Ferrite Magnet
  15", 3" VC,
  Ferrite Magnet
  HF Driver   1" Exit, 1" VC, Ferrite   1" Exit, 1.5" VC, Ferrite   1" Exit, 1.75" VC, Ferrite   1" Exit, 1.75" VC, Ferrite
  Crossove   3.5kHz   2.8kHz   2.2kHz   1.7kHz
  Frequency Response (-3dB)   65Hz - 18 kHz   60Hz - 18 kHz   55Hz - 18 kHz   50Hz - 18 kHz
  Maximum Peak Output   120 dB   124 dB   128 dB   130 dB
  Dispersion (H X V)   90° X 60°   80° X 60°   80° X 60°   80° X 60°
  Crossover Frequency NIL NIL   80Hz - 200Hz Adjustable   80Hz - 200Hz Adjustable
  Connector   2 X XLR; 1 X TS mic i/p   2 X XLR; 1 X TS mic i/p   2 X XLR; 2 X TS mic i/p   2 X XLR; 2 X TS mic i/p
  Packaging Dimensions
  L X B X H (cms)
  33 X 34 X 50   40 X 44 X 61   45 X 47 X 69   50 X 52 X 77
  Net Weight   9.5 kgs   18 kgs   25 kgs   30 kgs
  Gross Weight   21 kgs   20 kgs   28 kgs   33.5 kgs
