SM PROFESSIONAL DJA 800

SM PROFESSIONAL DJA 800

The DJA Series power amplifiers are designed to give clean, dynamic power with the legendary Studiomaster Professional sound quality and reliability that professionals depend on.

More Information

•  Rugged & Reliable Professional Stereo Power Amplifier.

•  Input: Balanced XLR & 1/4” Jack.

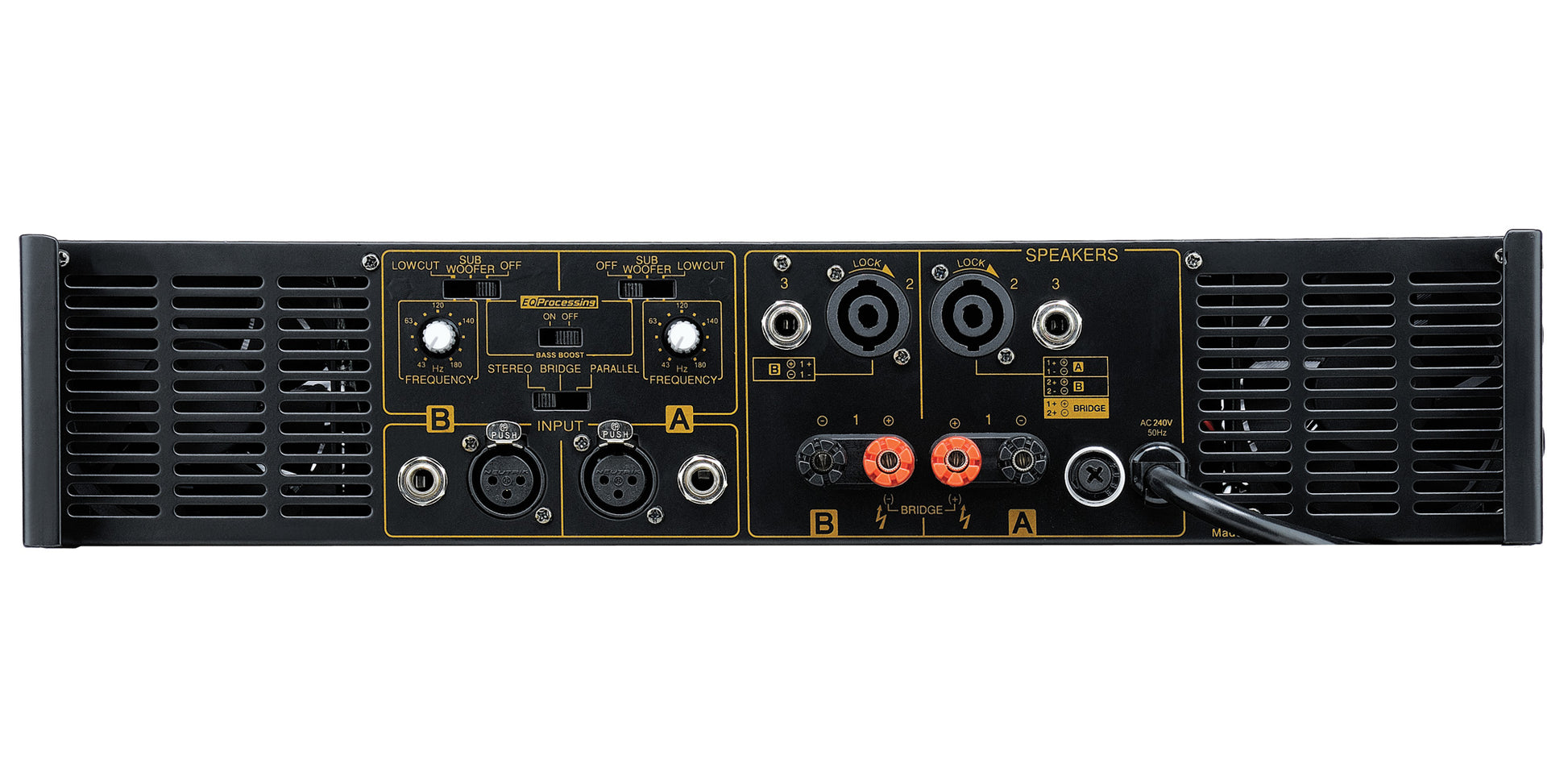

•  EQ Processing, Low Cut, Subwoofer selection options on rear panel.

•  Stereo, Bridge & Parallel mode selection switch.

•  Protection: Temperature ,DC Short Circuit.

•  Large cooling Fans.

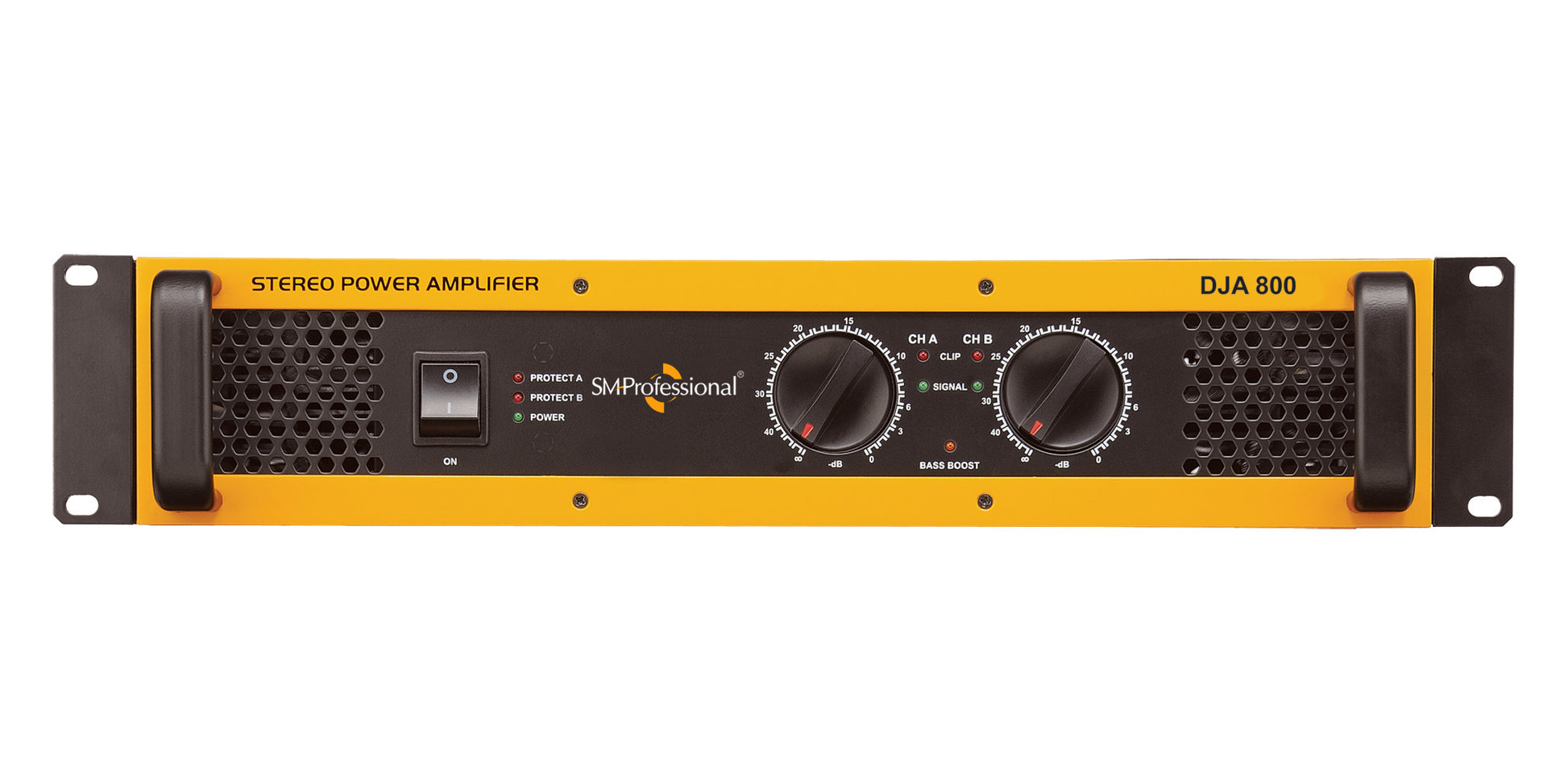

•  LED Indicators on front panel for power, Signal, Clip, bass boost & Protect.

•  Mains voltage operation 220V AC-240V AC as well as low voltage operation (150V AC).

•  Output: Speakon & Binding Post Connectors.

•  19” rack mountable.

Technical Specification

POWER OUTPUT-

4 Ω (True RMS),20Hz-20kHz,1% THD

2 x 250 W

4 Ω (EIA), 1kHz , 1%THD

2 x 415 W

8 Ω (True RMS),20Hz-20kHz,1% THD

2 x 165 W

8 Ω (EIA), 1kHz , 1%THD

2 x 245 W

BRIDGED MODE-

8 Ω (True RMS), 20Hz-20kHz, 1% THD

525 W

8 Ω (EIA), 1kHz , 1%THD_

830 W

Damping factor

> 350 :1 (8 Ω)

Frequency Response

20Hz – 20kHz (-3dB)

Protection Devices

Temperature, DC, Short Circuit, Soft Start

Input Connector (Per Channel)

XLR, 1/4” TRS Jack

Output Connector (Per Channel)

Speakon / Binding Posts / 6.3mm Jack

Dimensions (W x D x H)mm

482 x 456 x 88 (2U)

Net Weight (Kgs.)

12.5
