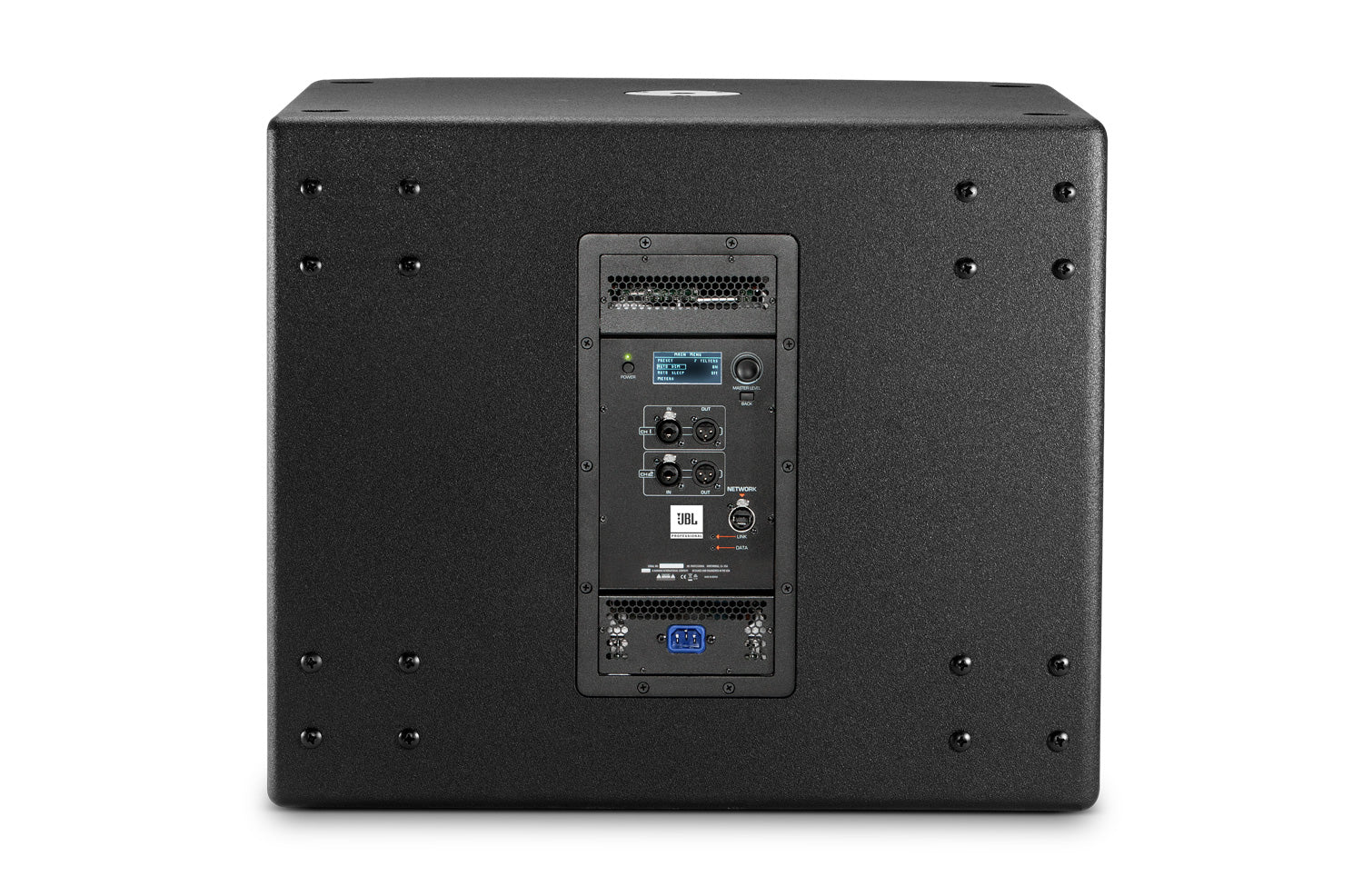

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400MHz Sharc DSP includes 20 PEQ’s, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

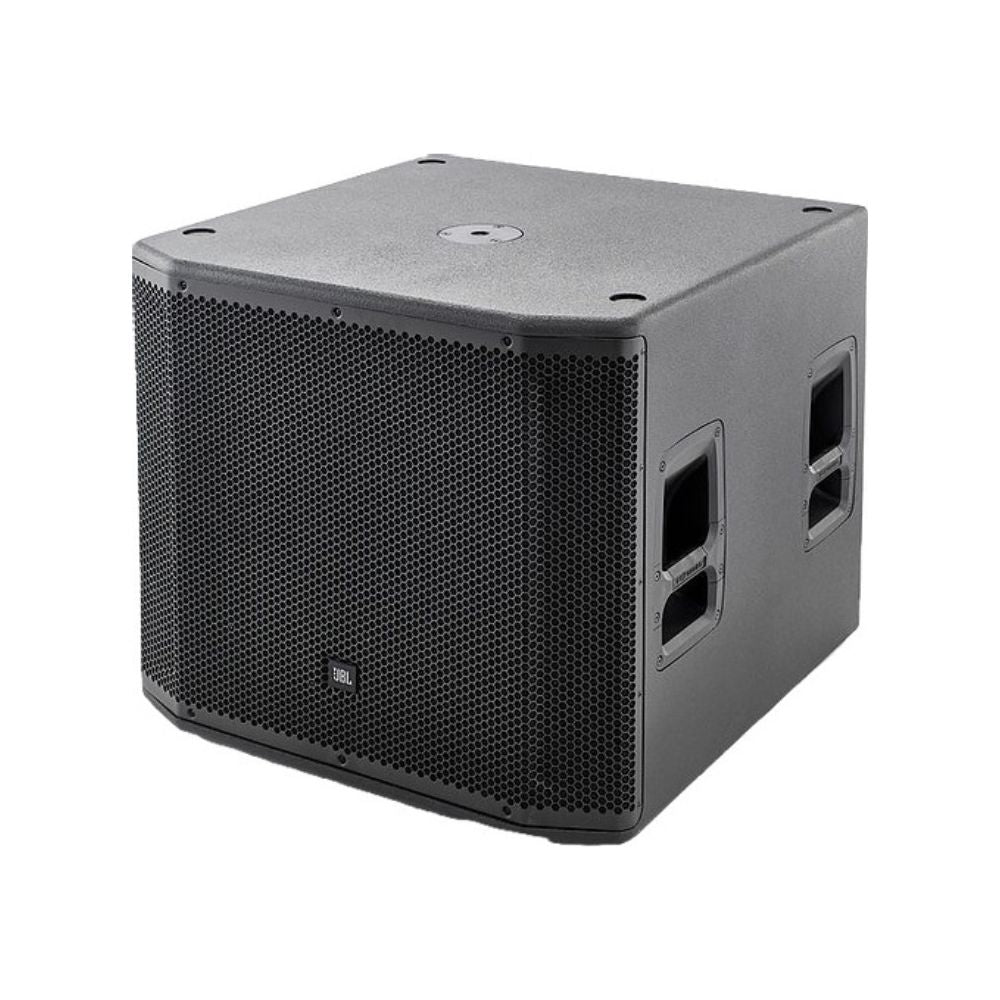

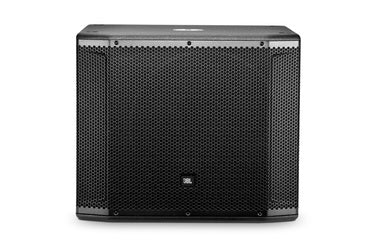

JBL SRX 818SP/230
JBL SRX 818SP/230
More Information
More Information
Technical Specification
Technical Specification
| MODEL | SRX 818 SP | SRX 828 SP |
| System Type | Self powered 18”, subwoofer system | Self powered dual 18”, subwoofer system |
| Maximum SPL (1m) | 135 dB | 141 dB |
| Frequency Range (-10dB) | 29 Hz - 150 Hz | 29 Hz - 150 Hz |
| Frequency Response (-3 dB) | 35 Hz - 120 Hz | 35 Hz - 120 Hz |
| Amplifier Design | Class D | Class D |
| Power Rating | 1000 W Peak | 2000 W Peak |
| Dimensions (H x W x D) | 683mm x 684mm x 575mm (26.89in x 26.92in x 22.62in) | 681mm x 1205mm x 574mm (26.79in x 47.42in x 22.57in) |
| Net Weight (each) | 39.5 kg (87 lb) | 65.9 kg (145 lb) |
| EQ | 20 parametric EQ's, speaker delay, and 50 available slots for presets | 20 parametric EQ's, speaker delay, and 50 available slots for presets |
| Inputs | Neutrik ¼ - XLR input; Neutrik XLR Output | Neutrik ¼ - XLR input; Neutrik XLR Output |
| Outputs | 2 x XLR | 2 x XLR |
| Enclosure | 18 mm Duraflex coated plywood | 18 mm Duraflex coated plywood |

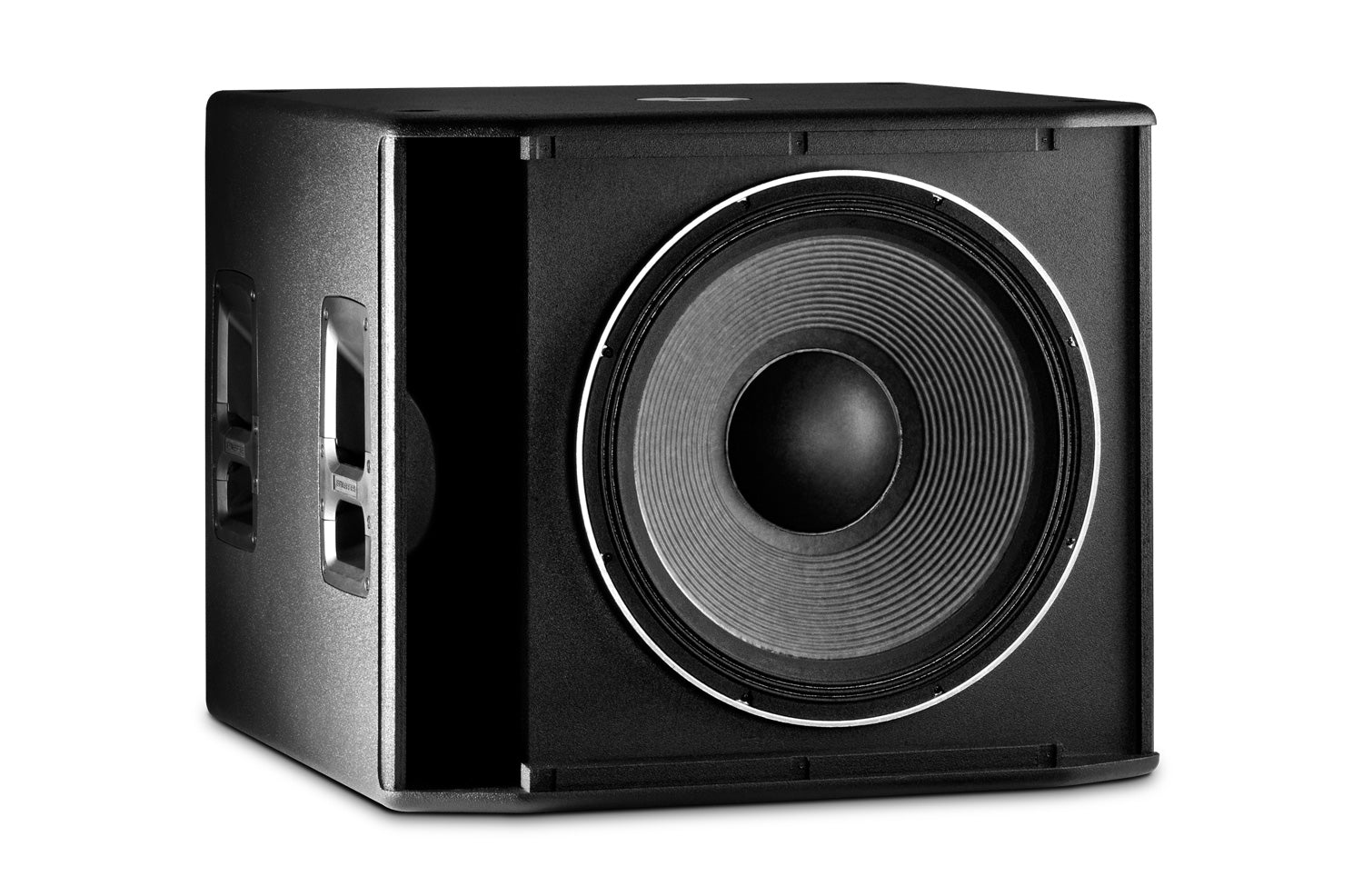

| LF Driver | 1 x 18 in Differential Drive® | 2 x 18 in Differential Drive® |
| System Processing | DSP based, resident in Input Module | DSP based, resident in Input Module |
