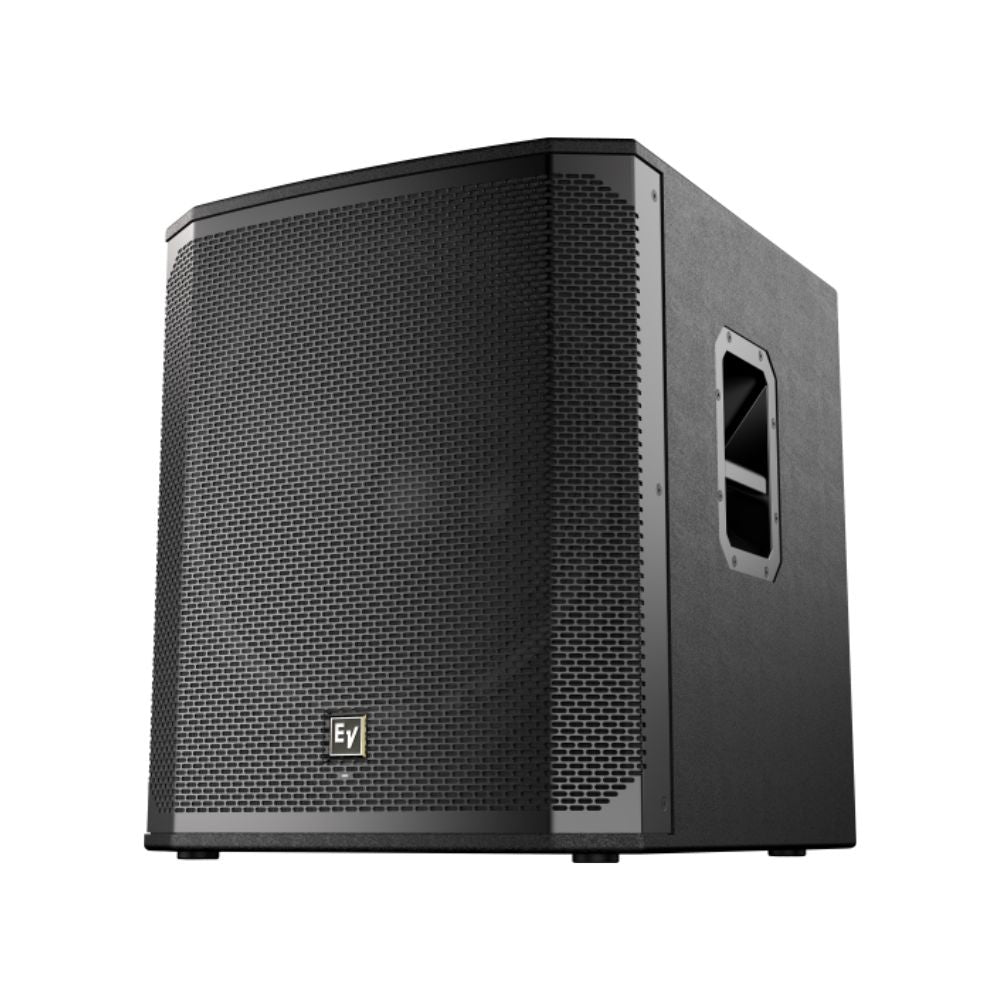

ELECTROVOICE ELX 200-18SP

ELECTROVOICE ELX 200-18SP

Color

ELX200-18SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 132 dB SPL utilizing transducers designed and engineered by EV (18-inch EVS-18L woofer). Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

More Information

  • EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth is available in select countries.
  • QuickSmartDSP features best-in-class processing. Easy setup via three presets, sub/top system-match, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
  • High-efficiency 1200 W Class-D power amplifier delivers up to 132 dB peak SPL utilizing ultraefficient, high-sensitivity transducer designed and engineered by EV.
  • Ideal for portable and installed applications. Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.

Technical Specification



Frequency response (-3 dB) 47 Hz - 105 Hz¹
Frequency range (-10 dB) 40 Hz - 145 Hz¹
Maximum SPL 132 dB²
Power rating 1200 W
LF transducer EVS-18L 457 mm (18 in)
Low-Pass frequency Adjustable 80 Hz, 100 Hz, 120 Hz, 150 Hz

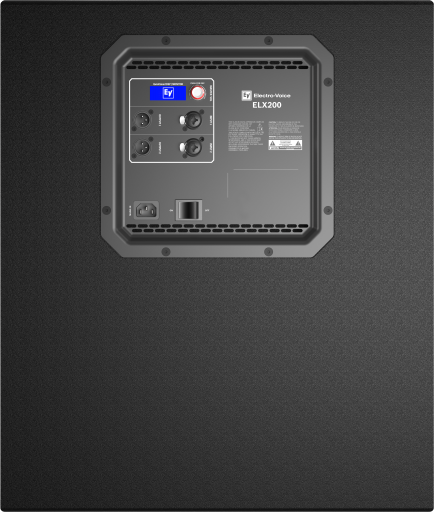

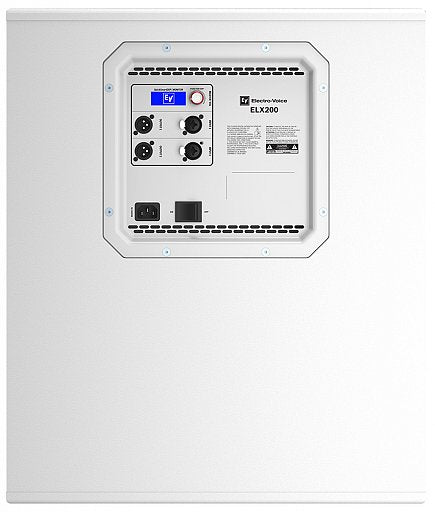

Connectors (2) XLR/TRS combo jacks and (2) XLR link outputs
Enclosure 15 mm plywood with EVCoat
Grille 18 AWG steel with powdercoat

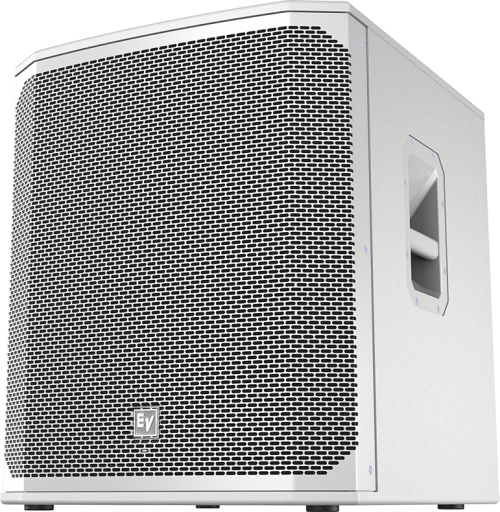

Color Black or White
Dimensions (H x W x D) 600 mm x 507 mm x 574 mm (23.7 in x 20.0 in x 22.6 in)
Net weight 29.0 kg (64 lb)
Shipping weight 33.1 kg (73.0 lb)
Power consumption 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A³
