QSC WL2102 WideLine-10 Line

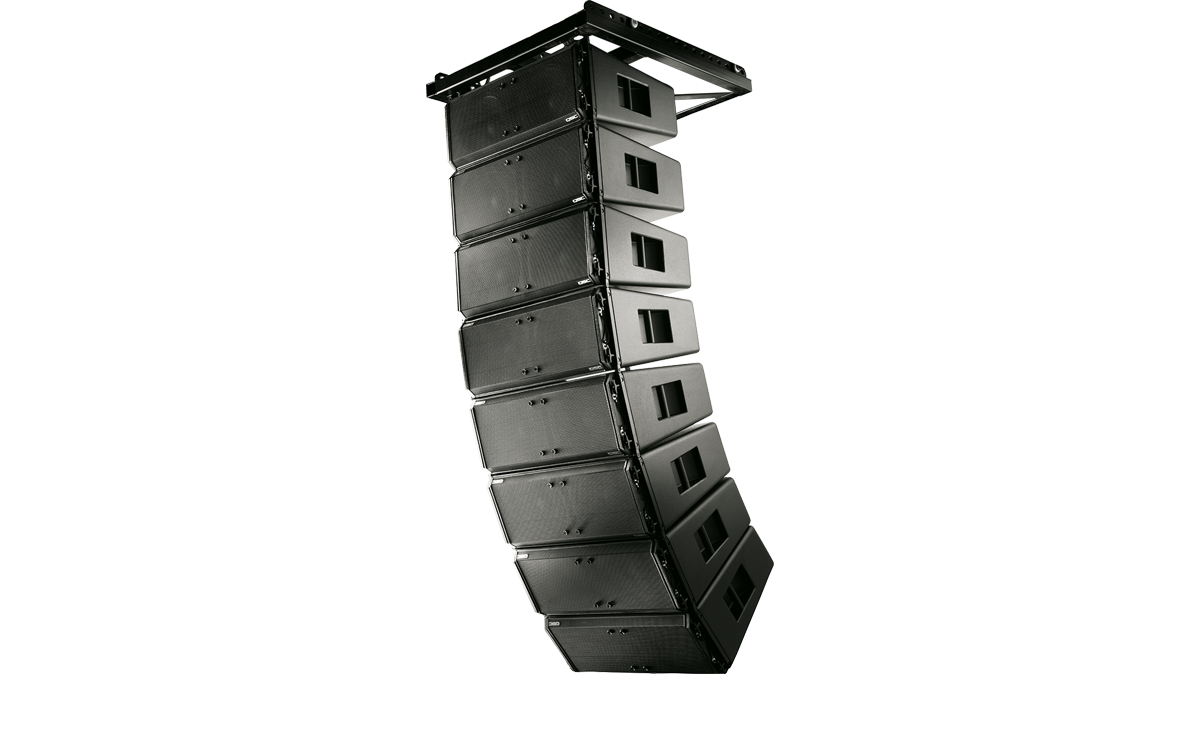

The WL2102 WideLine-10 Line Array Speaker from QSC is a full range line array loudspeaker designed for use in a wide variety of venues. The WideLine-10 features a wide 140° horizontal coverage pattern. It is a three transducer system and can be operated in either bi-amplified or tri-amplified modes. Both 10" low frequency transducers are used to cover the lowest frequency range. One driver covers only low frequencies while the range of the other extends through the mid frequencies to the mid/high crossover point. The use of a single high-frequency transducer allows the horizontal coverage pattern to remain wide and to assure smooth response both on and off axis at the transition to the diffraction slot loaded high frequency section. Bi-amplification uses passive elements to affect the required frequency response shading of the low-frequency drivers and offers reduced amplifier channel counts and simplified wiring. Tri-amplification allows the required low-frequency shading to be controlled with greater precision via active electronics and is recommended where maximum output and high sound quality are required.

More Information

Patented multiple aperture diffraction slot waveguide provides wide horizontal coverage (140°) and a near ideal vertical line source
High output capability in a compact form factor
May be operated as a bi-amplified or tri-amplified system. DSP settings are available on Q-Sys, SC-28, PLD amplifiers and CXD amplifiers
Dual 10" long-excursion, high-power, low-frequency transducers
Single 3" diaphragm neodymium compression driver
Fully captive hardware design incorporates all components necessary for box to box rigging

Technical Specification

QSC WL2102-TG Specs
Configuration	Bi-amp or Tri-amp mode
High Frequency Transducer	1.4" exit, 3" titanium diaphragm, neodymium magnet assembly
Low Frequency Transducer	2 x 400 W, 16 Ohms 10" woofer, 3" voice coil, ceramic magnet assembly
Frequency Response	55 Hz to 18 kHz @ ± 3 dB (with recommended DSP processing) 48 Hz to 20 kHz @ -10 dB (with recommended DSP processing)
Nominal Impedance	HF: 16 Ohms LF Bi-amp Mode: 8 Ohms LF Tri-amp Mode: 16 Ohms (x 2)
Power Capacity	HF: 80 W (2 hours, AES1984-2 method, 1 to 10 kHz) LF Bi-amp Mode: 600 W (2 hours, AES1984-2 method, 80 to 800 Hz) LF Tri-amp Mode: 400 W (x2) (2 hours, AES1984-2 method, 80 to 800 Hz)
Recommended Power	HF: 300 W @ 16 Ohms LF Biamp Mode: 1400 W @ 8 Ohms LF Triamp Mode: 700 W @ 16 Ohms (x2)
Sensitivity	HF: 107.5 dB (single cabinet measured in free space) LF: 98 dB (single cabinet measured in free space. LF drivers connected in parallel)
Maximum Output	Continuous: HF: 127 dB LF: 127 dB Peak: HF: 133 dB LF: 133 dB
Nominal Coverage Angle	Horizontal: 140° Vertical: Dependent on number of elements used
Cabinet	Ported, trapezoidal
Enclosure Material	Cored composite
Finish	Black tour grade with LINE-X
Grille	Perforated, formed powder coated steel
Connectors	2 x Neutrik Speakon NL8 in parallel
Attachment	Integral, adjustable rigging system, vertical splay adjustable in 1° increments from 2° to 10° and 0°
Dimensions	10.75 x 27.5 x 20.25" (27.3 x 69.85 x 51.43 cm)
